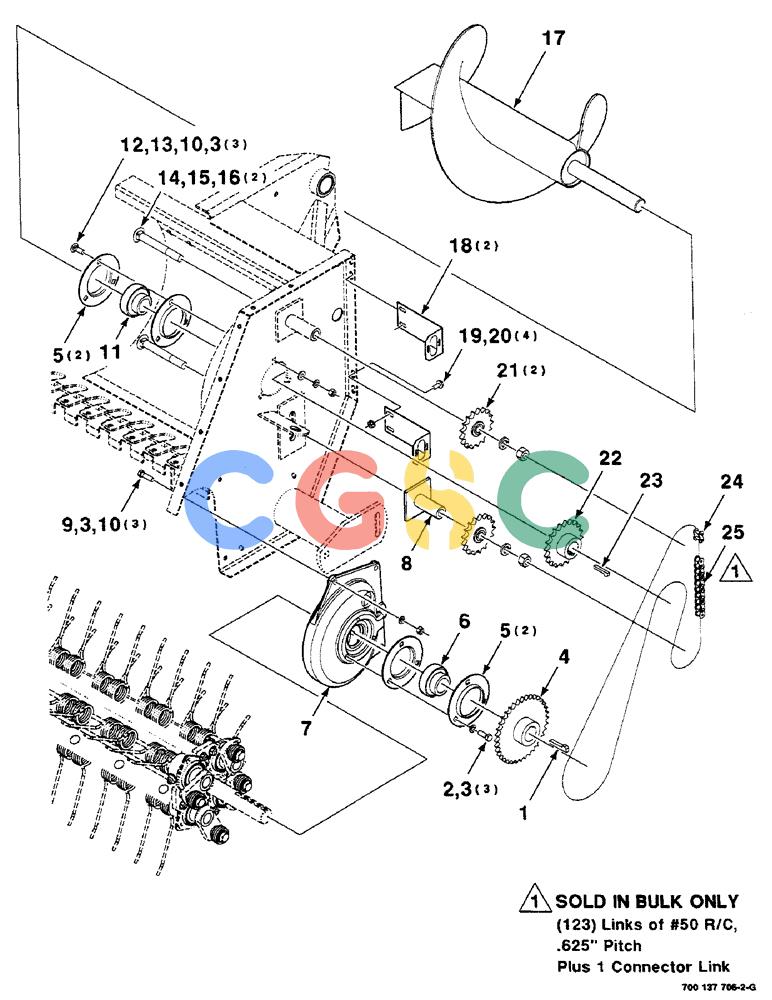

| 1. |
Q3929
|
[1] |
KEY,Gib, 5/16" Sq x 1 1/2"
|
IH
5/16 X 1-1/2 KEY - gib
|
| 2. |
413-616
|
[3] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 3. |
492-11038
|
[9] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 4. |
700123773
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET WA - 50B30
|
| 5. |
617863R1
|
[4] |
FLANGED BEARING
|
IH
- bearing
|
| 6. |
700708091
|
[1] |
SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm
|
CAS
BEARING - spherical Superseded by part number: 47577188, 47066
|
| 7. |
700137751
|
[1] |
HOUSING ASSY.
|
CAS
CAMTRACK - left
|
| 8. |
700108636
|
[1] |
SUPPORT
|
CAS
WA
|
| 9. |
413-620
|
[3] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 10. |
425-106
|
[6] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 11. |
51292
|
[1] |
SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm
|
IH
- spherical Superseded by part number: 84330041, 47508357
|
| 12. |
434-616
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 13. |
496-11041
|
[3] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 14. |
433-1080
|
[3] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5
|
CAS
5/8-11 X 5 RHSNB
|
| 15. |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 16. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 17. |
700137718
|
[1] |
AUGER
|
CAS
WA - left
|
| 18. |
700133129
|
[2] |
SUPPORT
|
CAS
- latch
|
| 19. |
121-115
|
[4] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 20. |
231-5145
|
[4] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 21. |
211623C91
|
[2] |
SPROCKET
|
IH
IDLER - sprocket
|
| 22. |
86439
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET WA
|
| 23. |
61424
|
[1] |
KEY
|
CAS
1/4 X 1-1/4 KEY - gib
|
| 24. |
47530
|
[1] |
LINK, CONNECTING
|
IH
LINK - connector #50 R/C
|
| 25. |
1791D
|
[1] |
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
|
IH
CHAIN - roller #50 (10 foot bulk)
|
