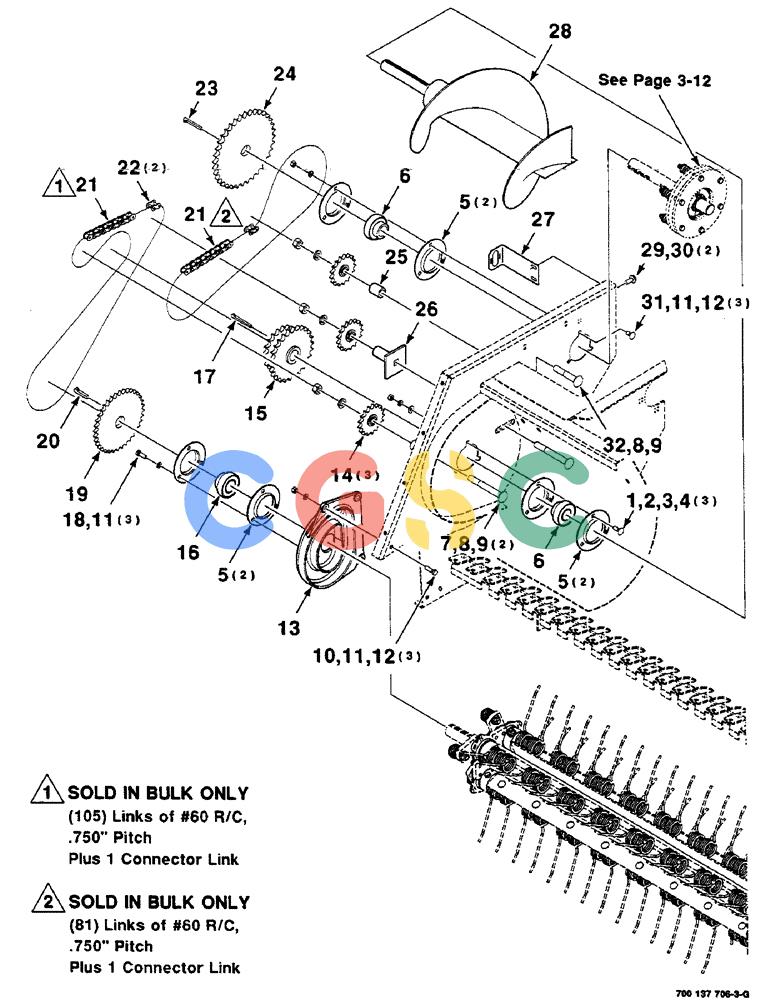

| 1. |
434-616
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 2. |
496-11041
|
[3] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 3. |
425-106
|
[3] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 4. |
492-11038
|
[3] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 5. |
617863R1
|
[6] |
FLANGED BEARING
|
IH
- bearing
|
| 6. |
51292
|
[2] |
SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm
|
IH
- spherical Superseded by part number: 84330041, 47508357
|
| 7. |
433-1080
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5
|
CAS
5/8-11 X 5 RHSNB
|
| 8. |
492-11062
|
[3] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 9. |
425-1010
|
[3] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 10. |
413-620
|
[3] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 13. |
700116125
|
[1] |
HOUSING
|
CAS
TRACK - cam
|
| 14. |
541857R92
|
[3] |
SPROCKET,15T
|
IH
- idler
|
| 15. |
700123775
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET WA - 20 & 26 T
|
| 16. |
700708091
|
[1] |
SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm
|
CAS
BEARING - spherical Superseded by part number: 47577188, 47066
|
| 17. |
61978
|
[1] |
KEY
|
CAS
1/4 X 2-1/2 KEY - gib
|
| 18. |
413-616
|
[3] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 19. |
700123774
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET WA - 60B30
|
| 20. |
Q3929
|
[1] |
KEY,Gib, 5/16" Sq x 1 1/2"
|
IH
5/16 X 1-1/2 KEY - gib
|
| 21. |
7086002
|
[2] |
CHAIN (AG)
|
CAS
CHAIN - roller #60 (10 foot bulk) Superseded by part number: 611362R91X, 241-1316
|
| 22. |
241-1416
|
[2] |
LINK
|
CAS
- connector Superseded by part number: 241-1316
|
| 23. |
61739
|
[1] |
KEY
|
CAS
1/4 X 2-1/4 KEY - gib
|
| 24. |
700108659
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET WA - 60B36
|
| 25. |
6268494
|
[1] |
SPACER
|
CAS
|
| 26. |
700108636
|
[1] |
SUPPORT
|
CAS
WA
|
| 27. |
700133129
|
[1] |
SUPPORT
|
CAS
- latch
|
| 28. |
700137719
|
[1] |
AUGER
|
CAS
WA - right
|
| 29. |
121-115
|
[2] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 30. |
231-5145
|
[2] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 31. |
433-612
|
[3] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 32. |
433-1056
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5
|
CAS
5/8-11 X 3-1/2 RHSNB Superseded by part number: 280563
|
