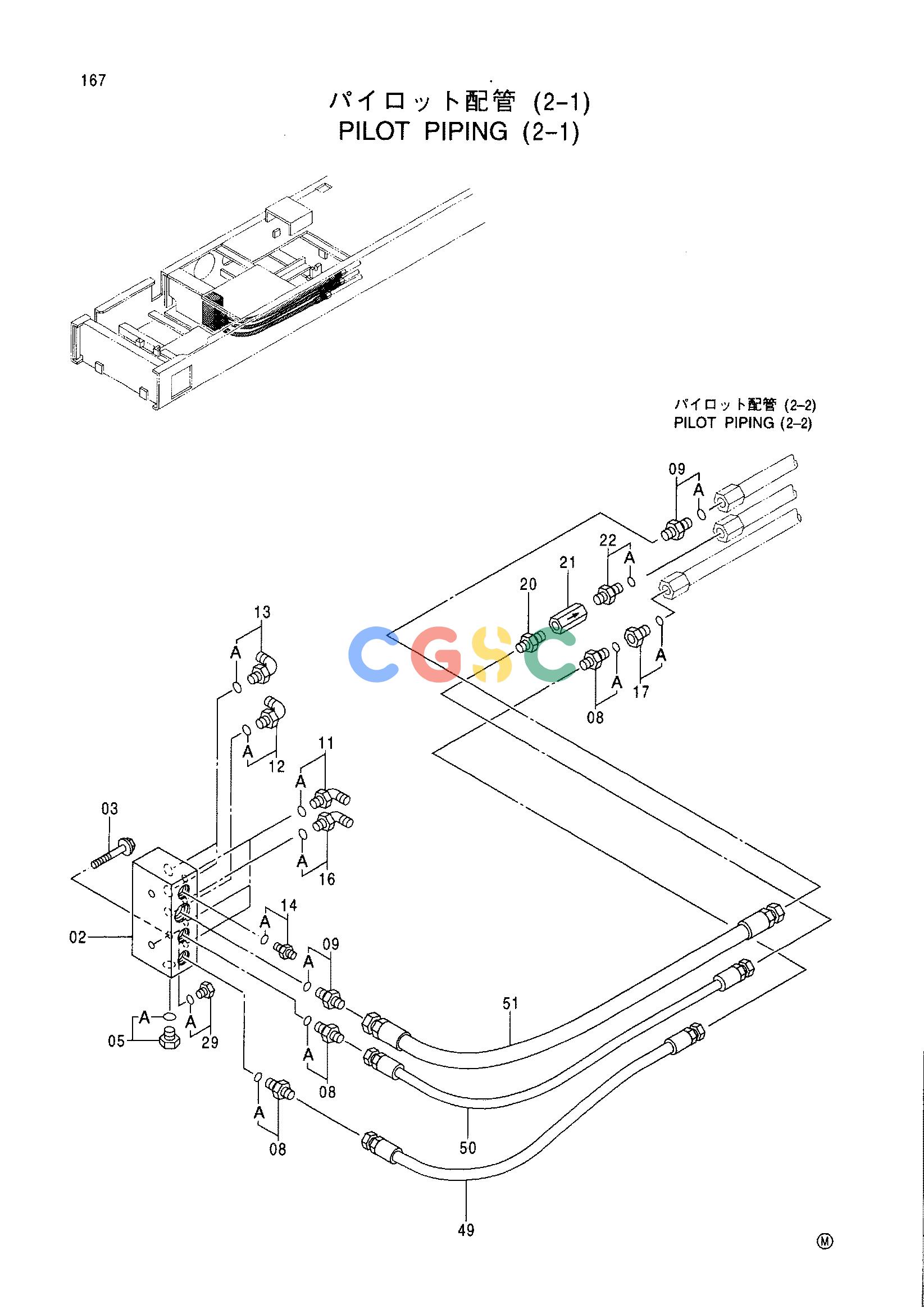

日立零件查询（CX1100）PILOT PIPING (2-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
961 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 2042507 | [1] | MANIFOLD | |
| 03. | J021000 | [2] | BOLT;SEMS | |
| 05. | 4174541 | [1] | PLUG | |
| 05A. | 4506418 | [1] | O-RING | |
| 08. | 4210361 | [3] | ADAPTER;S | |
| 08A. | 4506418 | [1] | O-RING | |
| 09. | 4042033 | [2] | ADAPTER | |
| 09A. | 4506424 | [1] | O-RING | |
| 11. | 4154671 | [3] | ELBOW;S | |
| 11A. | 4509180 | [1] | O-RING | |
| 12. | 4154672 | [1] | ELBOW;S | |
| 12A. | 4506418 | [1] | O-RING | |
| 13. | 4065118 | [2] | ELBOW;S | |
| 13A. | 4506424 | [1] | O-RING | |
| 14. | 4221290 | [1] | ADAPTER;S | |
| 14A. | 4509180 | [1] | O-RING | |
| 16. | 4219345 | [1] | ELBOW;S | |
| 16A. | 4509180 | [1] | O-RING | |
| 17. | 4263450 | [1] | REDUCER;S | |
| 17A. | 4506424 | [1] | O-RING | |
| 20. | 4221287 | [1] | ADAPTER;S | |
| 21. | 9034570 | [1] | VALVE;CHECK | |
| 22. | 4222089 | [1] | ADAPTER;S | |
| 22A. | 4506424 | [1] | O-RING | |
| 29. | 4092534 | [1] | PLUG | |
| 29A. | 4509180 | [1] | O-RING | |
| 49. | 4304466 | [1] | HOSE | |
| 50. | 4304469 | [1] | HOSE | |
| 51. | 4157682 | [1] | HOSE | |
