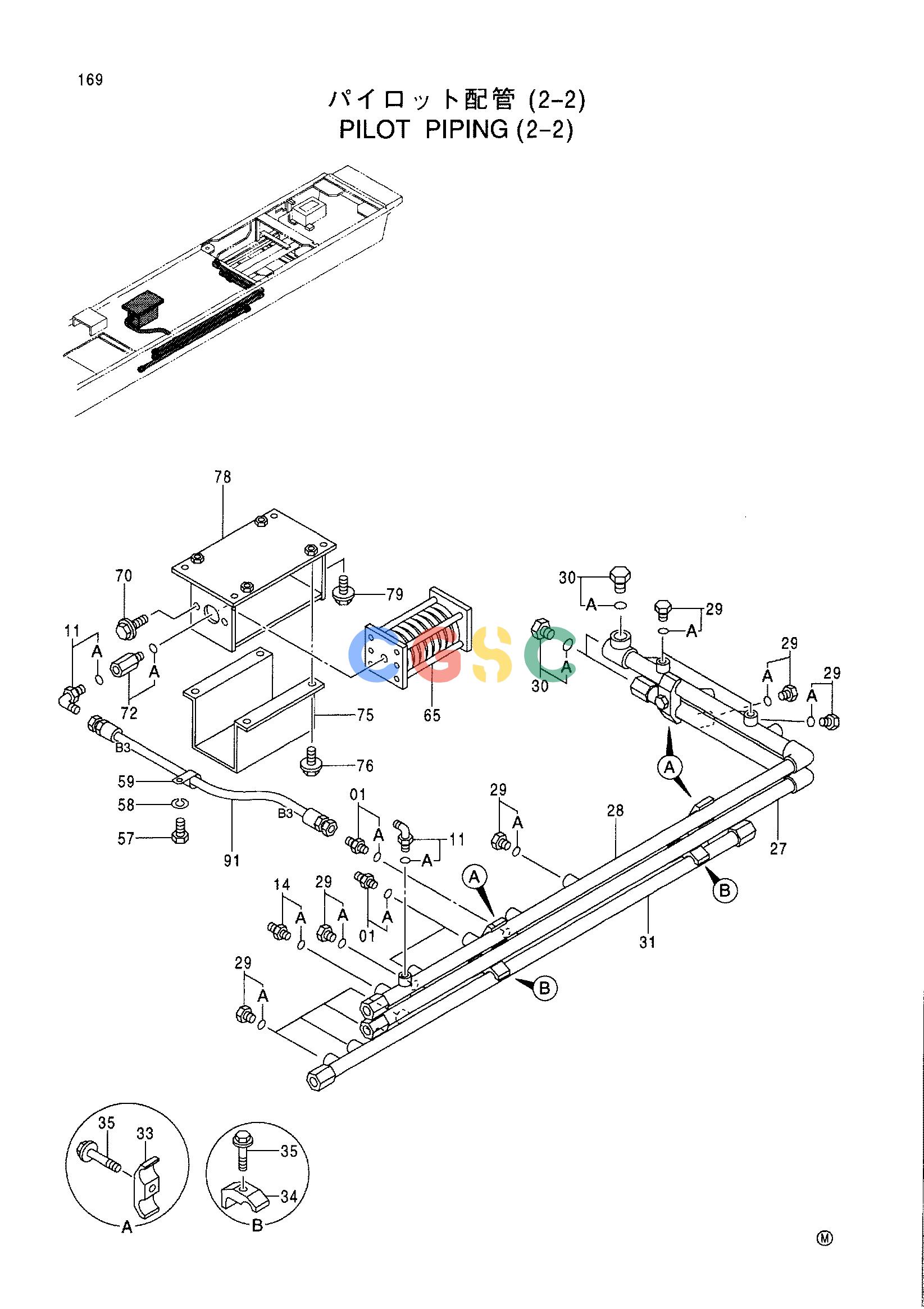

日立零件查询（CX1100）PILOT PIPING (2-2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
944 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4200466 | [3] | ADAPTER;S | |
| 01A. | 4509180 | [1] | O-RING | |
| 11. | 4154671 | [2] | ELBOW;S | |
| 11A. | 4509180 | [1] | O-RING | |
| 14. | 4221290 | [1] | ADAPTER;S | |
| 14A. | 4509180 | [1] | O-RING | |
| 27. | 7032200 | [1] | PIPE | |
| 28. | 7032201 | [1] | PIPE | |
| 29. | 4092534 | [10] | PLUG | |
| 29A. | 4509180 | [1] | O-RING | |
| 30. | 4174542 | [3] | PLUG | |
| 30A. | 4506424 | [1] | O-RING | |
| 31. | 9747182 | [1] | PIPE | |
| 33. | 4189860 | [3] | CLAMP;PIPE | |
| 34. | 4190127 | [2] | CLAMP;PIPE | |
| 35. | J011265 | [5] | BOLT;SEMS | |
| 57. | J901020 | [1] | BOLT | |
| 58. | A590910 | [1] | WASHER;SPRING | |
| 59. | 4190275 | [1] | CLIP | |
| 65. | 4314476 | [1] | ACCUMULATOR | |
| 70. | J011230 | [2] | BOLT;SEMS | |
| 72. | 4261357 | [1] | ADAPTER;S | |
| 72A. | 4509180 | [1] | O-RING | |
| 75. | 8072701 | [1] | BRACKET | |
| 76. | J011020 | [4] | BOLT;SEMS | |
| 78. | 3082720 | [1] | COVER | |
| 79. | J021025 | [4] | BOLT;SEMS | |
| 91. | 4385504 | [1] | HOSE (B3) | |
