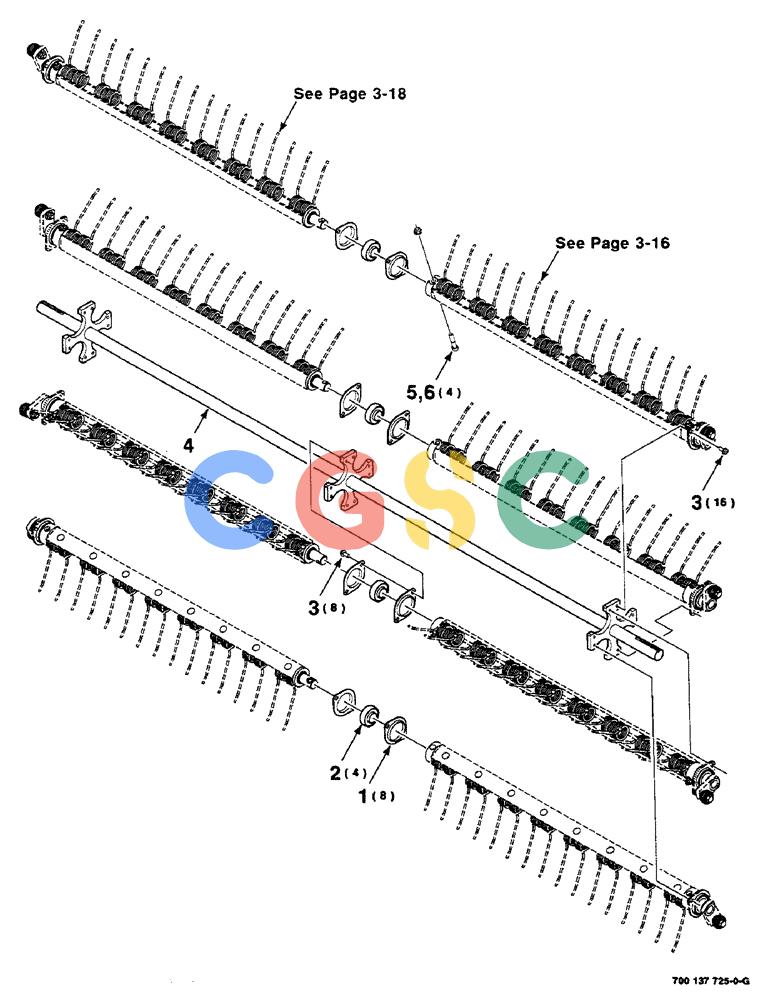

凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (3-14) - ROTOR ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
962 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
581469R1
|
[8] |
FLANGE,Bearing
|
IH
- bearing
|
| 2. |
455959R92
|
[4] |
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
|
CAS
- spherical Superseded by part number: 47577195
|
| 3. |
409-7612
|
[24] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 4. |
700137726
|
[1] |
ROTOR
|
CAS
WA
|
| 5. |
61-736
|
[4] |
HEX SOC SCREW,7/16"-14 x 2 1/4"
|
CAS
7/16-14 X 2-1/4 HSHCS SPL Superseded by part number: NH280993
|
| 6. |
704452
|
[4] |
SPRING
|
CAS
7/16-14 HFTLN GR/G Superseded by part number: 51200183, 51200183, 86629502
|
