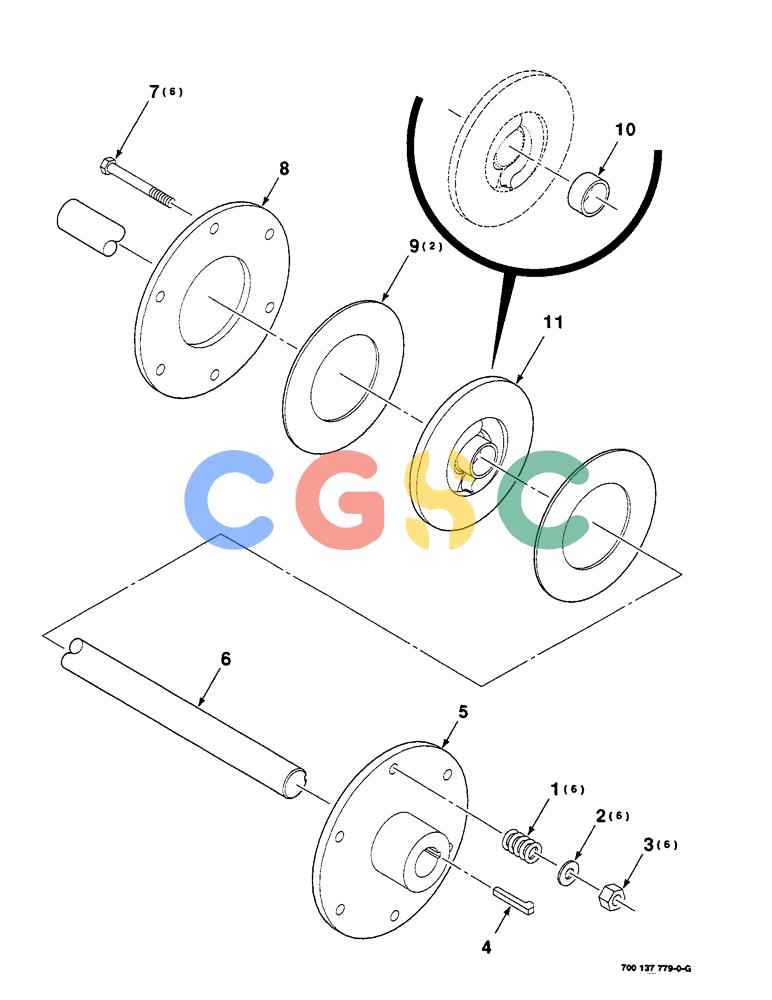

凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (3-12) - PICKUP CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
493 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
58107
|
[6] |
SPRING
|
IH
- compression
|
| 2. |
495-21044
|
[6] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 3. |
231-1406
|
[6] |
LOCK NUT,3/8"-16, GB
|
CAS
3/8-16 LHSN
|
| 4. |
Q3914
|
[1] |
KEY,Gib, 1/4" Sq x 1 1/2"
|
IH
1/4 X 1-1/2 KEY - gib
|
| 5. |
700108661
|
[1] |
PLATE
|
CAS
WA - clutch
|
| 6. |
700137780
|
[1] |
SHAFT
|
CAS
|
| 7. |
413-652
|
[6] |
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
|
CAS
Superseded by part number: 9637240
|
| 8. |
392464
|
[1] |
LARGE PLATE
|
CAS
PLATE - pressure
|
| 9. |
700711025
|
[2] |
CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk
|
CAS
DISC - friction
|
| 10. |
852749
|
[1] |
BRONZE BUSHING
|
CAS
BUSHING - bronze
|
| 11. |
700108665
|
[1] |
CLUTCH ASSEMBLY
|
CAS
(Includes item 10)
|
