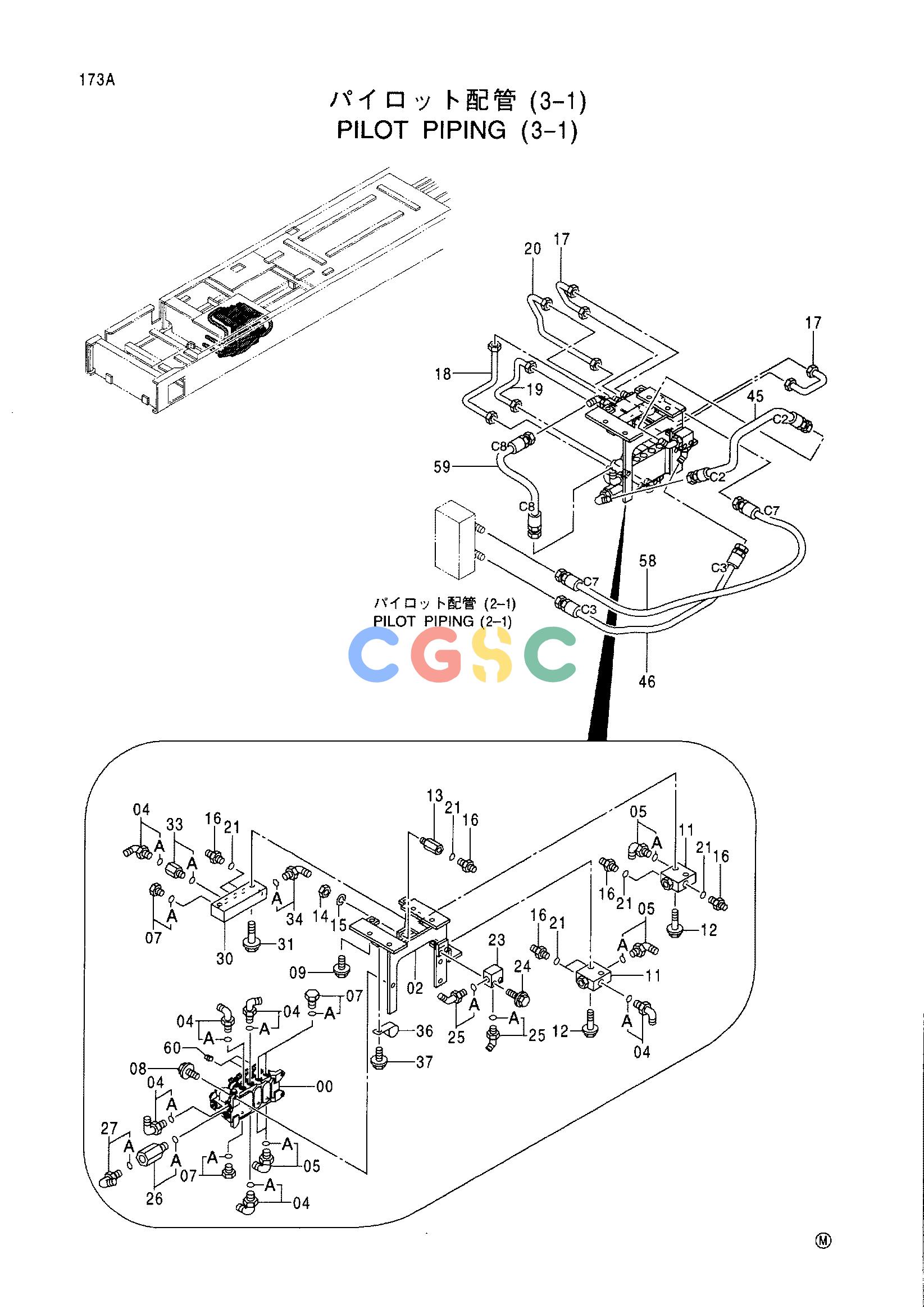

日立零件查询（CX1100）PILOT PIPING (3-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
613 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4391302 | [1] | VALVE;SOLENOID | I9218252 |
| 00. | 9218252 | [1] | VALVE;SOLENOID | |
| 02. | 8071548 | [1] | BRACKET | |
| 04. | 4156434 | [6] | ELBOW;S | |
| 04A. | 957366 | [1] | O-RING | |
| 05. | 4317622 | [3] | FITTING;PIPE | |
| 05A. | 957366 | [1] | O-RING | |
| 07. | 4093624 | [4] | PLUG | |
| 07A. | 957366 | [1] | O-RING | |
| 08. | J010830 | [3] | BOLT;SEMS | |
| 09. | J011030 | [4] | BOLT;SEMS | |
| 11. | 4368190 | [2] | VALVE;PILOT | |
| 12. | J011055 | [4] | BOLT;SEMS | |
| 13. | 4402492 | [1] | REDUCER | |
| 14. | 4202531 | [1] | NUT | |
| 15. | A590916 | [1] | WASHER;SPRING | |
| 16. | 4317623 | [7] | FITTING;PIPE | |
| 17. | 4402973 | [2] | PIPE | |
| 18. | 4403016 | [1] | PIPE | |
| 19. | 3082657 | [1] | PIPE | |
| 20. | 4402981 | [1] | PIPE | |
| 21. | 964255 | [7] | O-RING | |
| 23. | 3077199 | [1] | MANIFOLD | |
| 24. | J020840 | [2] | BOLT;SEMS | |
| 25. | 4200472 | [2] | ELBOW;S | |
| 25A. | 957366 | [1] | O-RING | |
| 26. | 4263452 | [1] | REDUCER;S | |
| 26A. | 4506418 | [1] | O-RING | |
| 27. | 4154671 | [1] | ELBOW;S | |
| 27A. | 4509180 | [1] | O-RING | |
| 30. | 3035921 | [1] | MANIFOLD | |
| 31. | J011050 | [2] | BOLT;SEMS | |
| 33. | 4202564 | [1] | ADAPTER;S | |
| 33A. | 957366 | [1] | O-RING | |
| 34. | 4219345 | [1] | ELBOW;S | |
| 34A. | 4509180 | [1] | O-RING | |
| 36. | 4190275 | [1] | CLIP | |
| 37. | J011020 | [1] | BOLT;SEMS | |
| 45. | 4375294 | [1] | HOSE (C2) | |
| 46. | 4375296 | [1] | HOSE (C3) | |
| 58. | 4304464 | [1] | HOSE (C7) | |
| 59. | 4385504 | [1] | HOSE (C8) | |
| 60. | 4394138 | [3] | CAP | |
