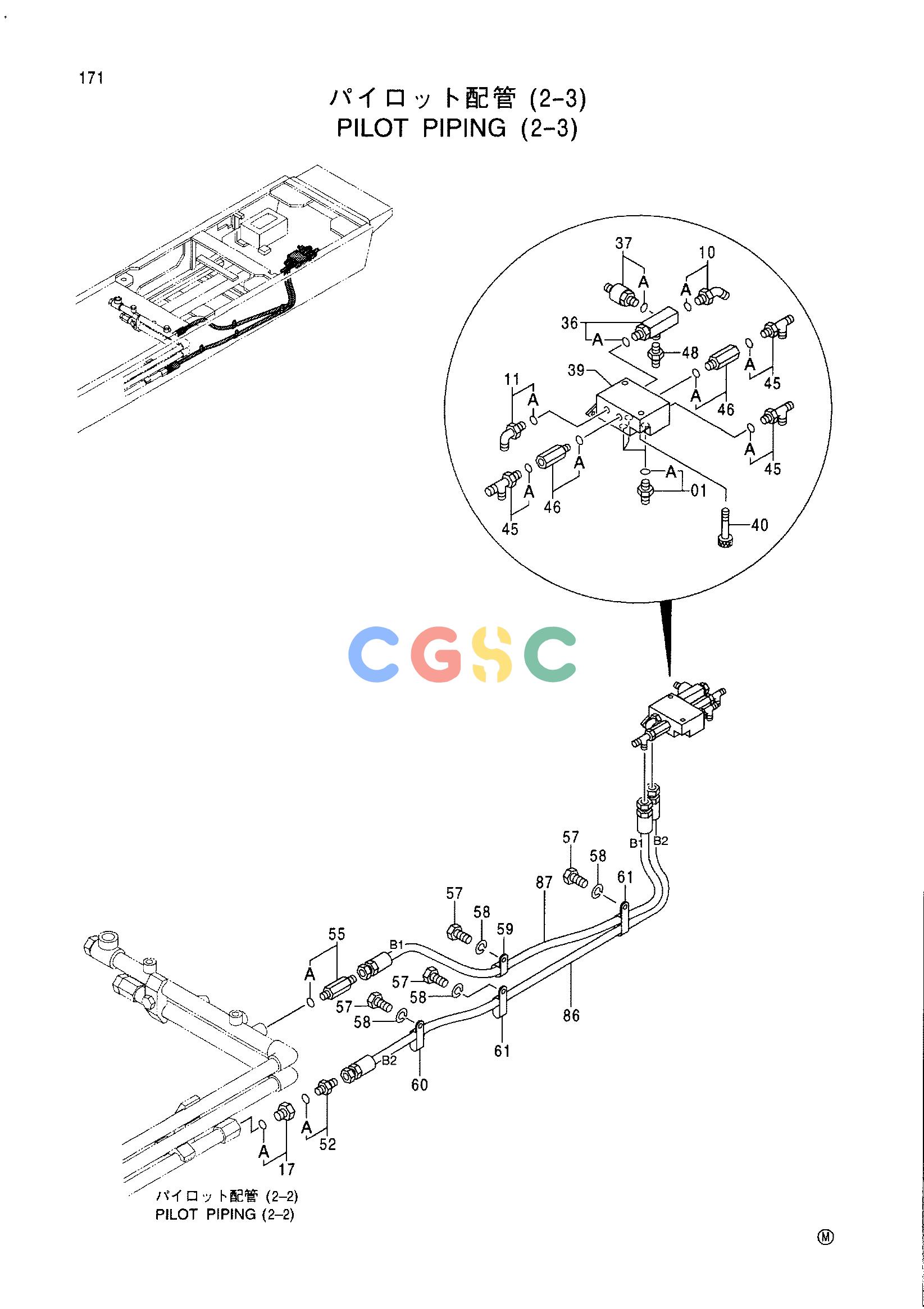

日立零件查询（CX1100）PILOT PIPING (2-3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
190 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4200466 | [3] | ADAPTER;S | |
| 01A. | 4509180 | [1] | O-RING | |
| 10. | 4190244 | [1] | ELBOW;S | |
| 10A. | 4509180 | [1] | O-RING | |
| 11. | 4154671 | [1] | ELBOW;S | |
| 11A. | 4509180 | [1] | O-RING | |
| 17. | 4263450 | [1] | REDUCER;S | |
| 17A. | 4506424 | [1] | O-RING | |
| 36. | 4343654 | [1] | REDUCER;S | |
| 36A. | 4509180 | [1] | O-RING | |
| 37. | 4254563 | [1] | SWITCH;PRESSURE | |
| 37A. | 4113154 | [1] | O-RING | |
| 39. | 4254611 | [1] | VALVE;LOCK | |
| 40. | M341045 | [2] | BOLT;SOCKET | |
| 45. | 4225403 | [3] | TEE;S | |
| 45A. | 4509180 | [1] | O-RING | |
| 46. | 4261357 | [2] | ADAPTER;S | |
| 46A. | 4509180 | [1] | O-RING | |
| 48. | 4215650 | [1] | ADAPTER;S | |
| 52. | 4200469 | [1] | ADAPTER;S | |
| 52A. | 4506418 | [1] | O-RING | |
| 55. | 4276965 | [1] | ADAPTER;S | |
| 55A. | 4509180 | [1] | O-RING | |
| 57. | J901020 | [4] | BOLT | |
| 58. | A590910 | [4] | WASHER;SPRING | |
| 59. | 4190275 | [1] | CLIP | |
| 60. | 4190292 | [1] | CLIP | |
| 61. | 4259817 | [2] | CLIP | |
| 86. | 4319152 | [1] | HOSE (B2) | |
| 87. | 4375299 | [1] | HOSE (B1) | |
