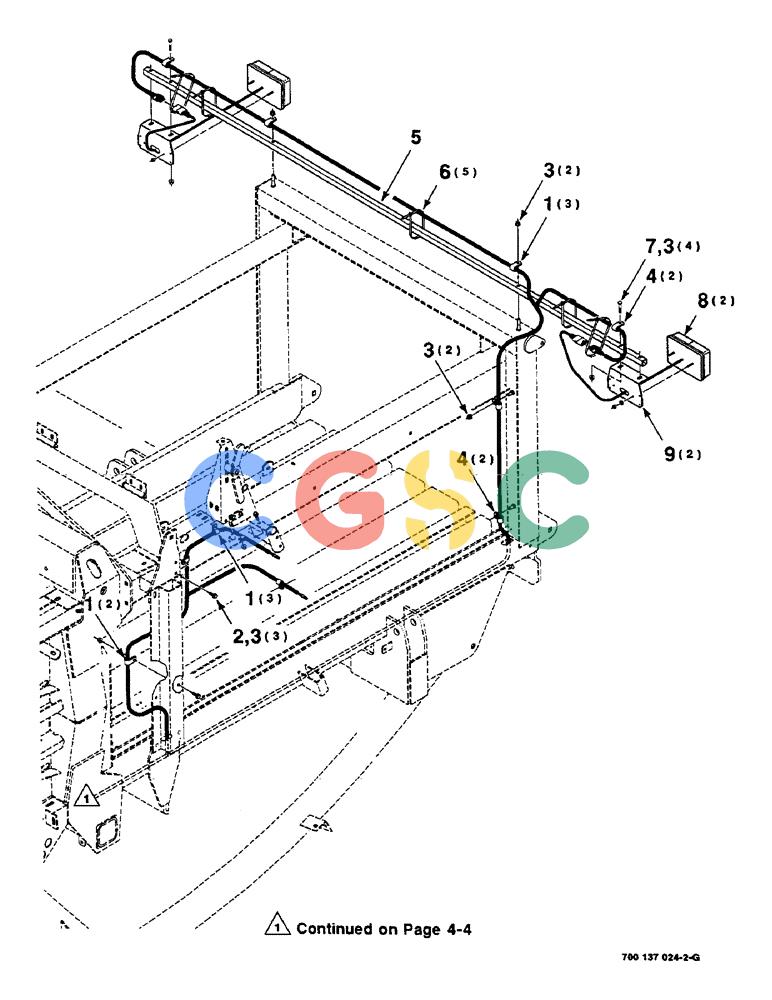

凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (4-06) - ROAD LIGHT ASSEMBLY, (CON'T) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1014 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
515-2395
|
[8] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86572009
|
| 2. |
409-7612
|
[3] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 3. |
329-286
|
[11] |
FLANGE NUT,Flg, 3/8"-16, G8
|
CAS
|
| 4. |
515-25127
|
[4] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Superseded by part number: 86632595
|
| 5. |
700138066
|
[1] |
SUPPORT
|
CAS
- light
|
| 6. |
L18337
|
[5] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 7. |
413-628
|
[4] |
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 72187210, 9706689
|
| 8. |
700716461
|
[2] |
TAIL LAMP
|
CAS
LIGHT - tail
|
| 9. |
700133748
|
[2] |
COVER PLATE
|
CAS
PLATE - light
|
