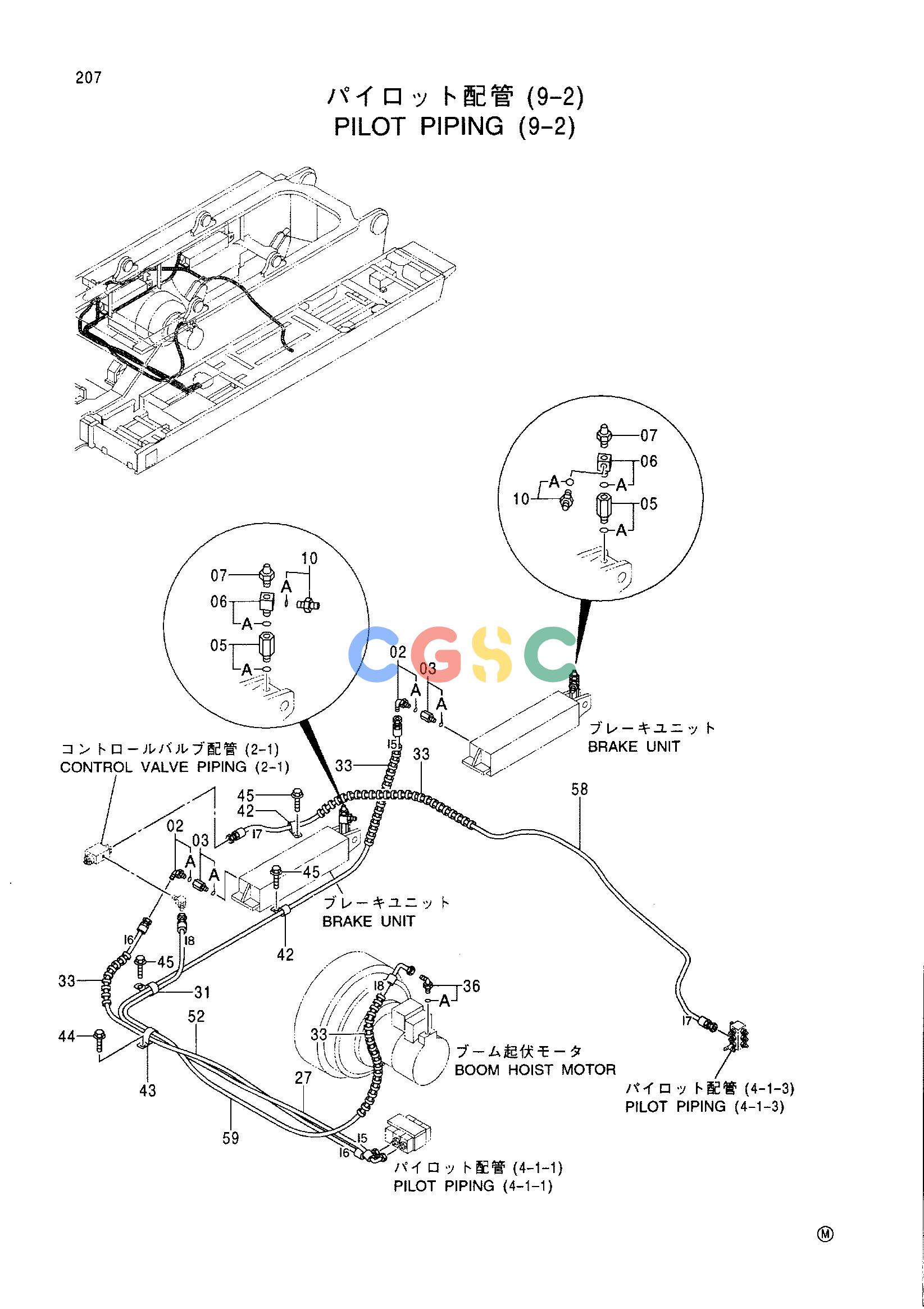

日立零件查询（CX1100）PILOT PIPING (9-2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
688 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 4200471 | [2] | ELBOW;S | |
| 02A. | 4506418 | [1] | O-RING | |
| 03. | 4456744 | [2] | REDUCER | |
| 03A. | 4506418 | [1] | O-RING | |
| 05. | 4406267 | [2] | reducer | |
| 05A. | 4506418 | [1] | O-RING | |
| 06. | 4416642 | [2] | REDUCER;S | |
| 06A. | 4506418 | [1] | O-RING | |
| 07. | 4346128 | [2] | FITTING | |
| 10. | 4210361 | [2] | ADAPTER;S | |
| 10A. | 4506418 | [1] | O-RING | |
| 27. | 4383983 | [1] | HOSE | |
| 31. | 4190282 | [1] | CLIP | |
| 33. | 4044420 | [8] | PROTECTOR | |
| 36. | 4200472 | [1] | ELBOW;S | |
| 36A. | 957366 | [1] | O-RING | |
| 42. | 4190253 | [3] | CLIP | |
| 43. | 4190264 | [1] | CLIP | |
| 44. | J011025 | [1] | BOLT;SEMS | |
| 45. | J011020 | [4] | BOLT;SEMS | |
| 52. | 4369442 | [1] | HOSE | |
| 58. | 4319149 | [1] | HOSE | |
| 59. | 4390218 | [1] | HOSE | |
