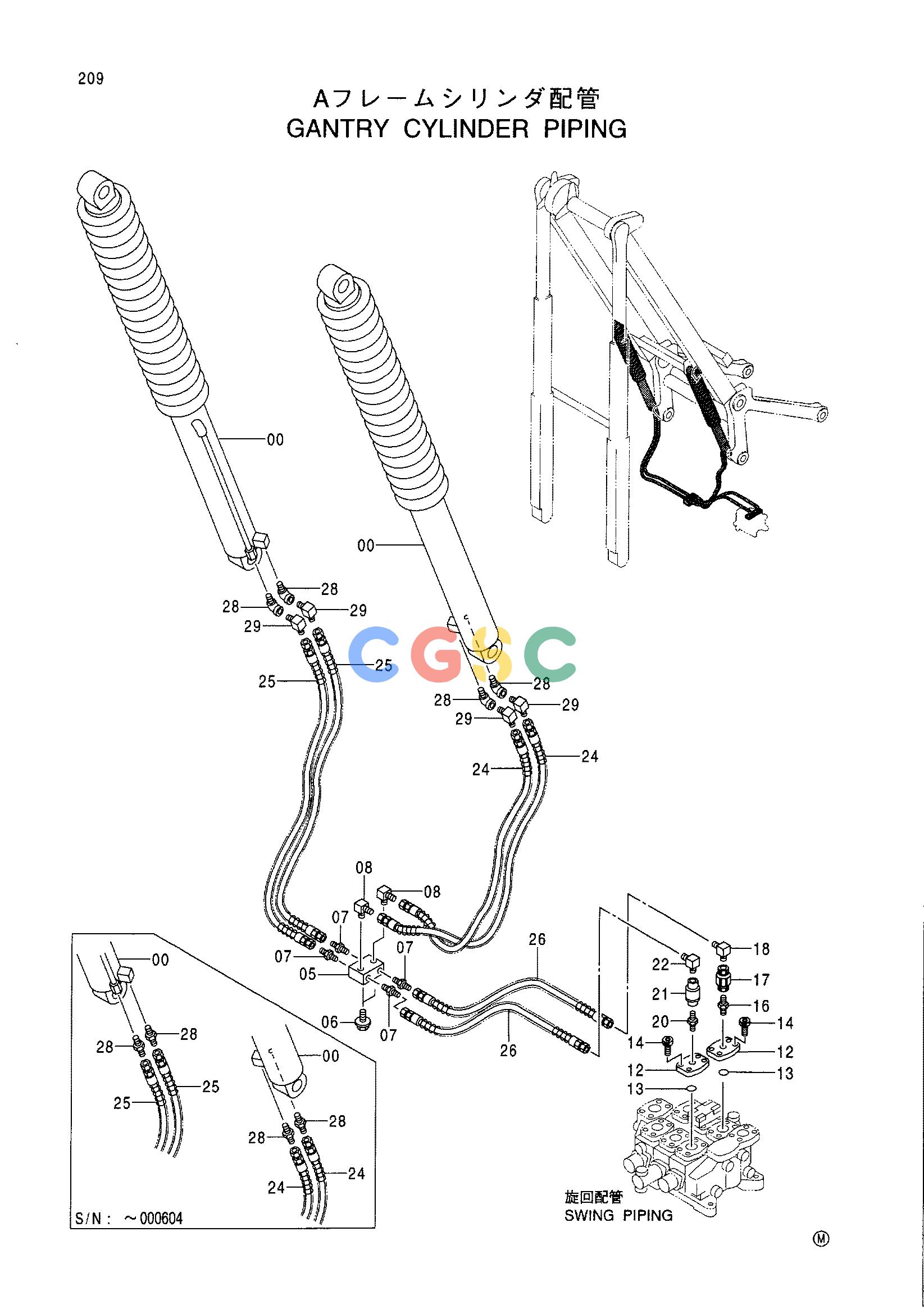

日立零件查询（CX1100）GANTRY CYLINDER PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
402 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4265414 | [2] | CYL.;OIL | |
| 05. | 3089938 | [1] | MANIFOLD | |
| 06. | J011020 | [2] | BOLT;SEMS | |
| 07. | 4042030 | [4] | ADAPTER | |
| 07A. | 957366 | [1] | O-RING | |
| 08. | 4112300 | [2] | ELBOW;S | |
| 08A. | 957366 | [1] | O-RING | |
| 12. | 4368151 | [2] | BLOCK | |
| 13. | A811035 | [2] | O-RING | |
| 14. | M341036 | [8] | BOLT;SOCKET | |
| 16. | 4219343 | [1] | ADAPTER;S | |
| 16A. | 4509180 | [1] | O-RING | |
| 17. | 4189448 | [1] | VALVE;THROTTLE | |
| 18. | 94-1401 | [1] | ELBOW;S | |
| 20. | 4229648 | [1] | ADAPTER;S | |
| 20A. | 4509180 | [1] | O-RING | |
| 21. | 4188602 | [1] | VALVE;SLOWRETER | |
| 22. | 4119002 | [1] | ELBOW | |
| 24. | 4457483 | [2] | HOSE | |
| 25. | 4341695 | [2] | HOSE | |
| 26. | 4188960 | [2] | HOSE | |
| 28. | 94-1301 | [4] | ADAPTER;S | |
| 28. | 94-0630 | [4] | ELBOW;S | |
| 29. | 94-1401 | [4] | ELBOW;S | |
