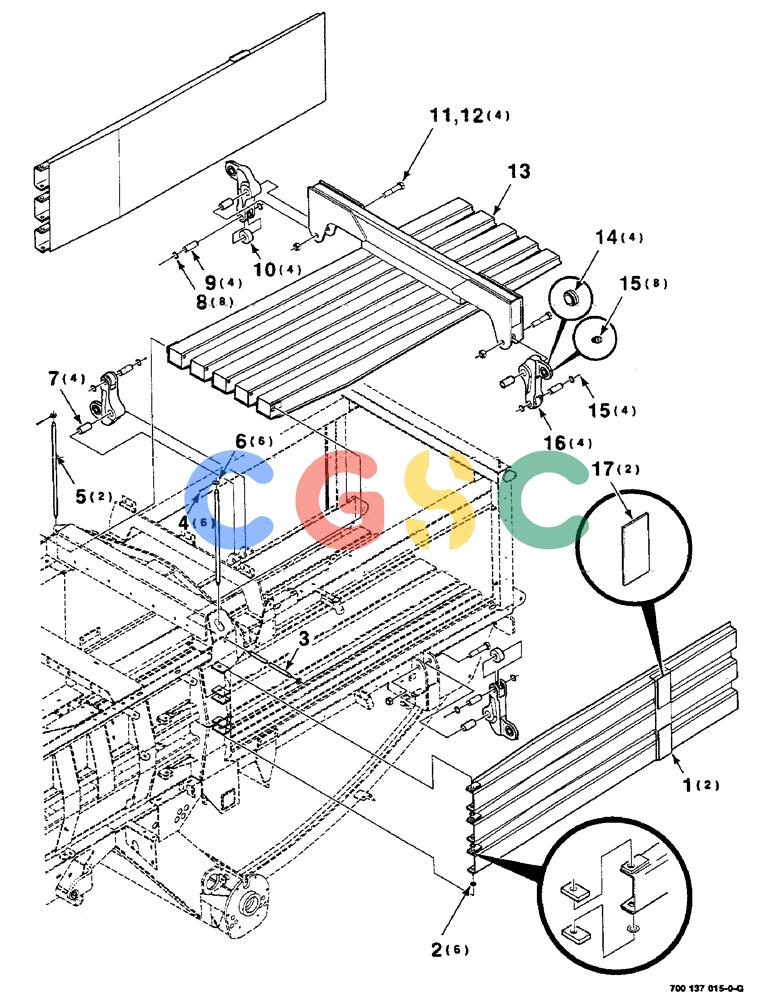

凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (7-04) - BALE DENSITY DOOR AND ARM ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
585 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123700
|
[2] |
DOOR
|
CAS
WA - side (Includes item 17)
|
| 2. |
95-81182
|
[6] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
3/4 X 14 GAUGE NRMB
|
| 3. |
6529432
|
[1] |
PIN
|
CAS
- top
|
| 4. |
432-1620
|
[6] |
COTTER PIN,1/4" x 1 1/4"
|
CAS
Pin, Split (Cotter), 1/4" x 1 1/4" Superseded by part number: 87402
|
| 5. |
700123709
|
[2] |
PIN
|
CAS
- side
|
| 6. |
705566
|
[6] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 7. |
6529408
|
[4] |
BUSHING
|
CAS
|
| 8. |
103-16125
|
[8] |
SNAP RING,#125, Ext
|
CAS
Ring, Snap, #125, Ext Superseded by part number: 86625148
|
| 9. |
700113615
|
[4] |
PIN
|
CAS
|
| 10. |
700113614
|
[4] |
ROLLER
|
CAS
|
| 11. |
7702046
|
[4] |
BOLT
|
CAS
1/8 X 5 C
|
| 12. |
232-41116
|
[4] |
LOCK NUT,1"-8, GC
|
CAS
NUT, LOCK, 1"-8, GC Superseded by part number: 9626600
|
| 13. |
700137423
|
[1] |
DOOR
|
CAS
WA - upper
|
| 14. |
D22200
|
[4] |
BEARING,25.4mm ID x 36.5mm OD x 22.23mm L
|
CAS
BUSHING Superseded by part number: 87659928
|
| 15. |
219-8
|
[12] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 16. |
700137425
|
[4] |
ARM
|
CAS
ASSEMBLY (Includes item 14 and 15)
|
| 17. |
700123706
|
[2] |
LARGE PLATE
|
CAS
PLATE
|
