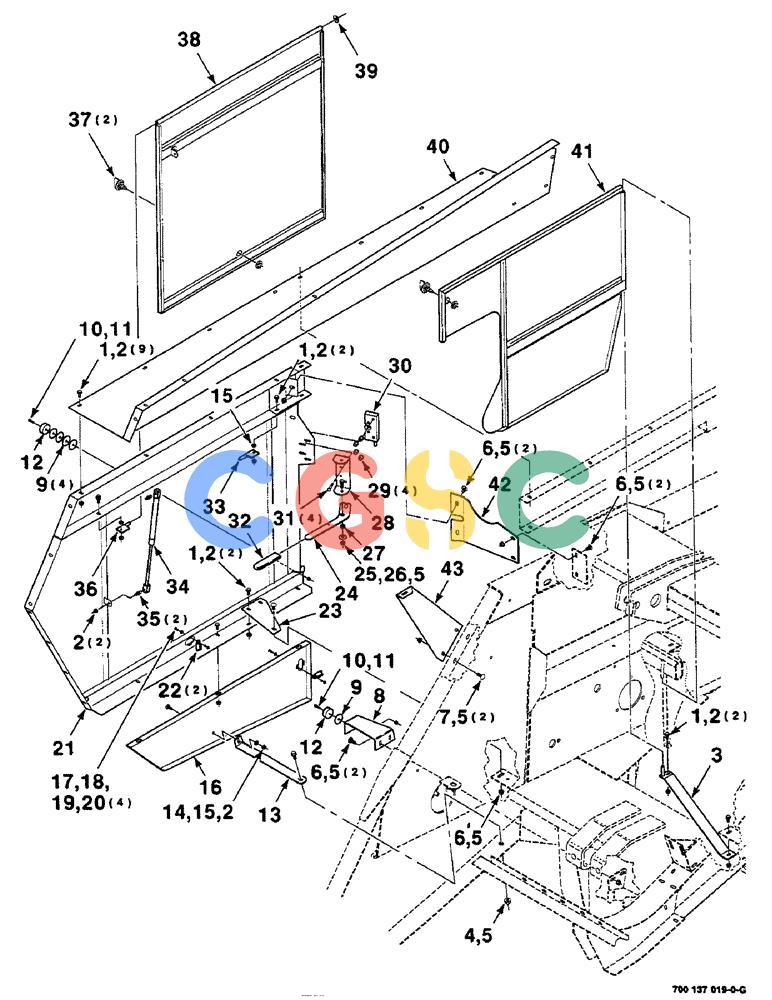

| 1. |
121-115
|
[15] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 2. |
231-5145
|
[18] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 3. |
700137940
|
[1] |
SUPPORT
|
CAS
WA - panel, right
|
| 4. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 5. |
329-286
|
[11] |
FLANGE NUT,Flg, 3/8"-16, G8
|
CAS
|
| 6. |
433-612
|
[7] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 7. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 8. |
700137955
|
[1] |
SUPPORT
|
CAS
- magnet, right
|
| 9. |
76695
|
[5] |
WASHER
|
CAS
5/16 FENDER WASHER
|
| 10. |
700707203
|
[2] |
CAPTIVE WASHER SCREW
|
CAS
#12-24 X 3/4 HWHMS
|
| 11. |
1954816C1
|
[2] |
LOCK NUT
|
IH
#12-24 HCLN SPL Superseded by part number: 848083
|
| 12. |
700708648
|
[2] |
BUMPER
|
CAS
|
| 13. |
700138036
|
[1] |
STRAP
|
CAS
- mounting
|
| 14. |
433-512
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 15. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 16. |
700137959
|
[1] |
SHIELD
|
CAS
- lower, right
|
| 17. |
340-1108
|
[4] |
SCREW,Cross Pan Hd, #10-24 x 1/2"
|
CAS
#10-24 X 1/2 CRPHMS GR60M
|
| 18. |
195-513
|
[4] |
WASHER,#10
|
CAS
PLAIN WASHER #10 Superseded by part number: 9824326
|
| 19. |
492-11010
|
[4] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 20. |
225-14110
|
[4] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 21. |
700137921
|
[1] |
SHIELD
|
CAS
WA - right
|
| 22. |
700714529
|
[2] |
SOCKET/RECEPTACLE
|
CAS
RECEPTACLE Superseded by part number: 292504A1
|
| 23. |
700137929
|
[1] |
SUPPORT
|
CAS
|
| 24. |
700137981
|
[1] |
LEVER
|
CAS
Superseded by part number: 700142944
|
| 25. |
413-616
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 26. |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 27. |
700134804
|
[1] |
SPACER
|
CAS
|
| 28. |
700137933
|
[1] |
SUPPORT
|
CAS
- latch
|
| 29. |
318618
|
[4] |
SPACER
|
CAS
BUSHING
|
| 30. |
700720033
|
[1] |
LATCH
|
CAS
- single rotor
|
| 31. |
413-424
|
[4] |
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 72187192, 280112
|
| 32. |
827360
|
[1] |
HANDLE
|
CAS
GRIP
|
| 33. |
700137961
|
[1] |
HINGE
|
CAS
WA - right
|
| 34. |
700720032
|
[1] |
SPRING
|
CAS
GAS - spring, 600 N
|
| 35. |
700715279
|
[2] |
STUD
|
CAS
- 10 MM ball
|
| 36. |
700137960
|
[1] |
HINGE
|
CAS
WA - left
|
| 37. |
700714706
|
[2] |
LATCH
|
CAS
- 90° turn (Includes nut)
|
| 38. |
700137934
|
[1] |
PANEL
|
CAS
WA - door
|
| 39. |
496-11041
|
[1] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 40. |
700137910
|
[1] |
SHIELD
|
CAS
- right, top Superseded by part number: 700152211
|
| 41. |
700137997
|
[1] |
SHIELD
|
CAS
WA - right
|
| 42. |
700137937
|
[1] |
SUPPORT
|
CAS
|
| 43. |
700137975
|
[1] |
SUPPORT
|
CAS
- right
|
