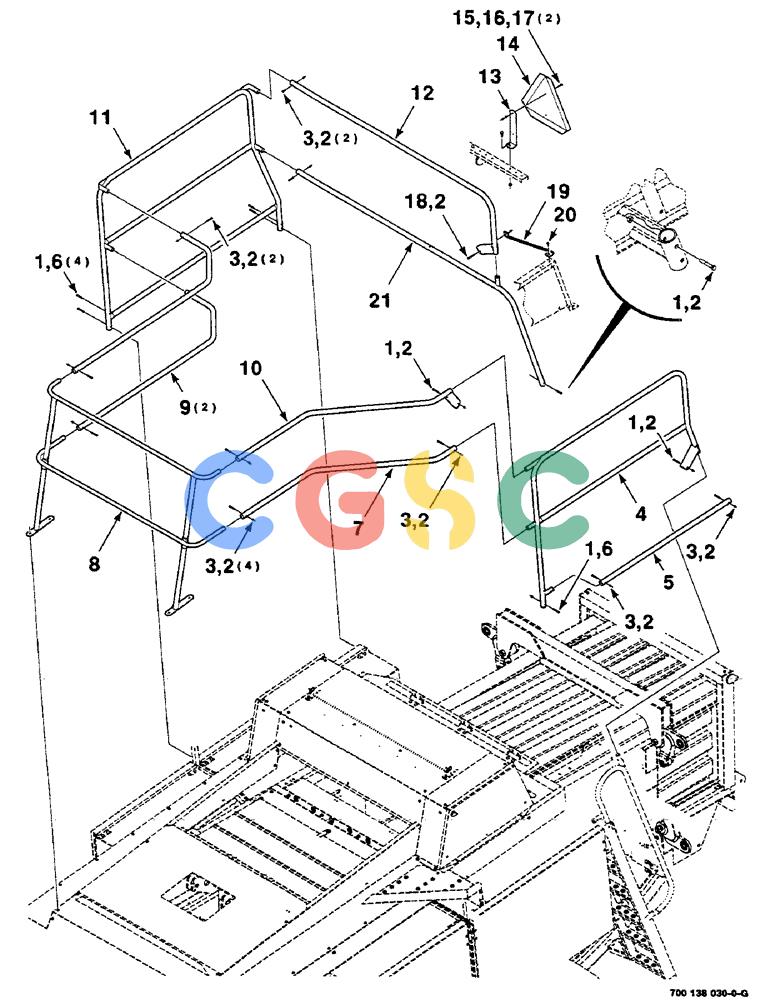

凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (7-30) - HAND RAILS AND MOUNTING ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-532
|
[8] |
BOLT,Hex, 5/16" - 18 x 2", Gr 5
|
CAS
Superseded by part number: 9636711
|
| 2. |
230-4115
|
[15] |
LOCK NUT,5/16"-18, GA
|
CAS
5/16-18 HTLN GR/B Superseded by part number: 230-4145
|
| 3. |
413-528
|
[11] |
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707515, 72187200
|
| 4. |
700138001
|
[1] |
RAIL
|
CAS
WA - left
|
| 5. |
700138004
|
[1] |
PIPE
|
CAS
- rail, stop
|
| 6. |
232-5315
|
[5] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 7. |
700138009
|
[1] |
RAIL
|
CAS
WA - top, left
|
| 8. |
700138010
|
[1] |
RAIL
|
CAS
WA - front
|
| 9. |
700138029
|
[2] |
PIPE
|
CAS
- rail, right
|
| 10. |
700138028
|
[1] |
PIPE
|
CAS
- rail, left
|
| 11. |
700138015
|
[1] |
RAIL
|
CAS
WA - right
|
| 12. |
700138023
|
[1] |
RAIL
|
CAS
WA - top, right
|
| 13. |
700129666
|
[1] |
BRACKET
|
CAS
SUPPORT - SMV
|
| 14. |
7020589
|
[1] |
EMBLEM
|
CAS
- SMV Superseded by part number: 86547710
|
| 15. |
440-11012
|
[2] |
SCREW,Cross Pan Hd, #10-24 x 3/4"
|
CAS
#10-24 X 3/4 CRPHMS GR60M Superseded by part number: 72187239, 86511922
|
| 16. |
492-11010
|
[2] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 17. |
225-14110
|
[2] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 18. |
413-536
|
[1] |
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
|
CAS
5/16-18 X 2-1/4 C Superseded by part number: 86505972
|
| 19. |
700138035
|
[1] |
ANGLE
|
CAS
- support
|
| 20. |
121-115
|
[1] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 21. |
700138026
|
[1] |
RAIL
|
CAS
WA - middle, right
|
