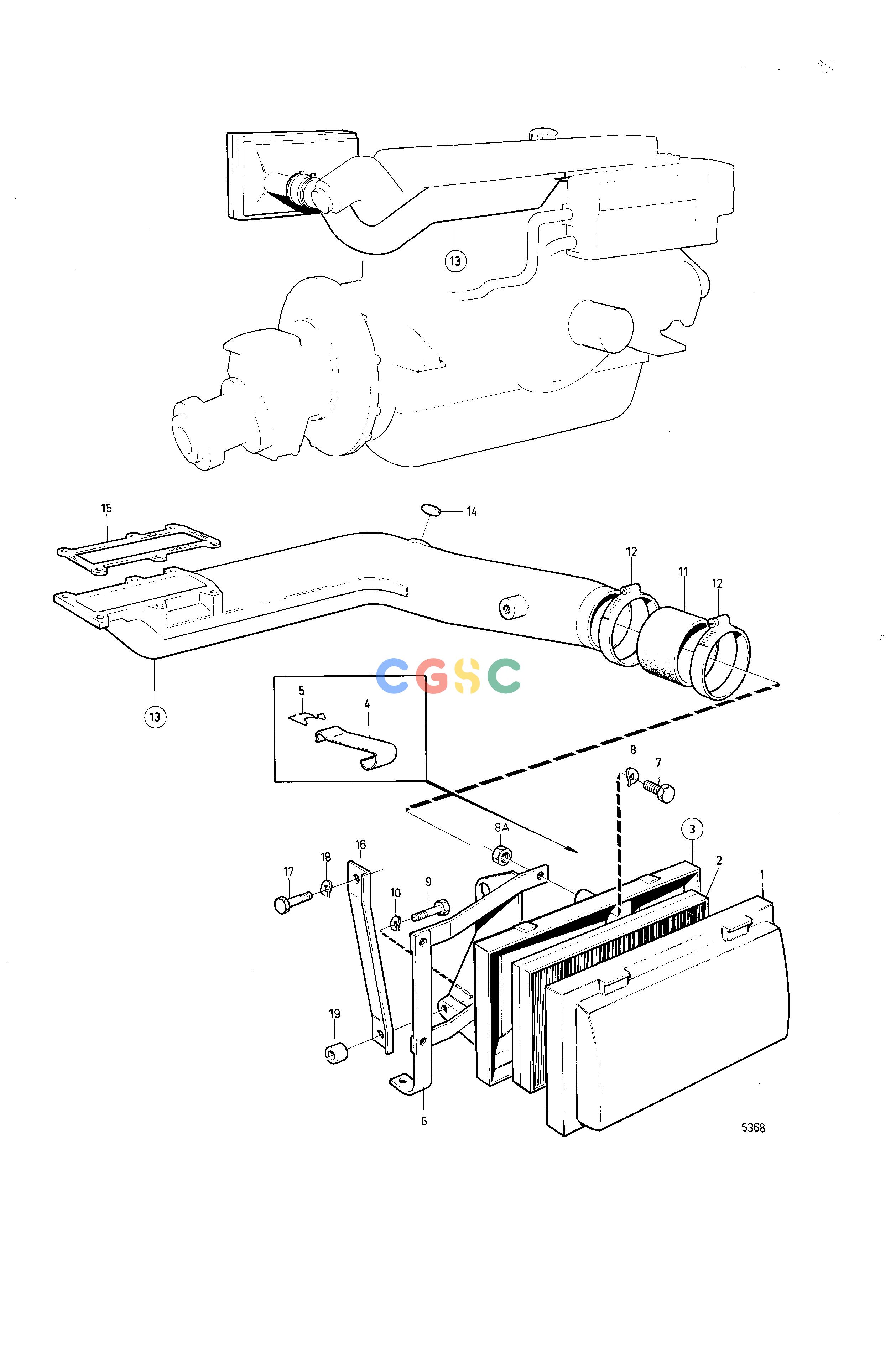

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BCooling SystemAir Filter with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
641 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
842615
|
[1] |
Filter housing
|
|
| 2. |
463505
|
[1] |
Air filter insert
|
|
| 3. |
842680
|
[1] |
Filter housing
|
|
| 4. |
463908
|
[4] |
Clamp
|
|
| 5. |
673792
|
[4] |
Lock
|
|
| 6. |
|
|
|
Early production containing separate mounted lift eye and air filter bracket are replaced by 1pc bra
|
| 6. |
844593
|
[1] |
Bracket
|
Late type
|
| 7. |
959224
|
[2] |
Hex. socket screw
|
L=35mm
|
| 7. |
959227
|
[2] |
Hex. socket screw
|
L=50mm
|
| 8. |
941907
|
[4] |
Spring washer
|
|
| 8A. |
946036
|
[4] |
Lock nut
|
|
| 9. |
955321
|
[1] |
Hexagon screw
|
L=45mm, late type
|
| 9. |
955317
|
[1] |
Hexagon screw
|
L=25mm, late type
|
| 10. |
941908
|
[2] |
Spring washer
|
|
| 11. |
952983
|
[1] |
Hose
|
L=80mm
|
| 12. |
943480
|
[2] |
Hose clamp
|
|
| 13. |
844249
|
[1] |
Tube
|
|
| 14. |
955095
|
[2] |
Expansion plug
|
|
| 15. |
844084
|
[1] |
Gasket
|
|
| 16. |
844377
|
[1] |
Bracket
|
|
| 17. |
955294
|
[1] |
Hexagon screw
|
|
| 18. |
941907
|
[1] |
Spring washer
|
|
| 19. |
843028
|
[1] |
Spacer sleeve
|
|
