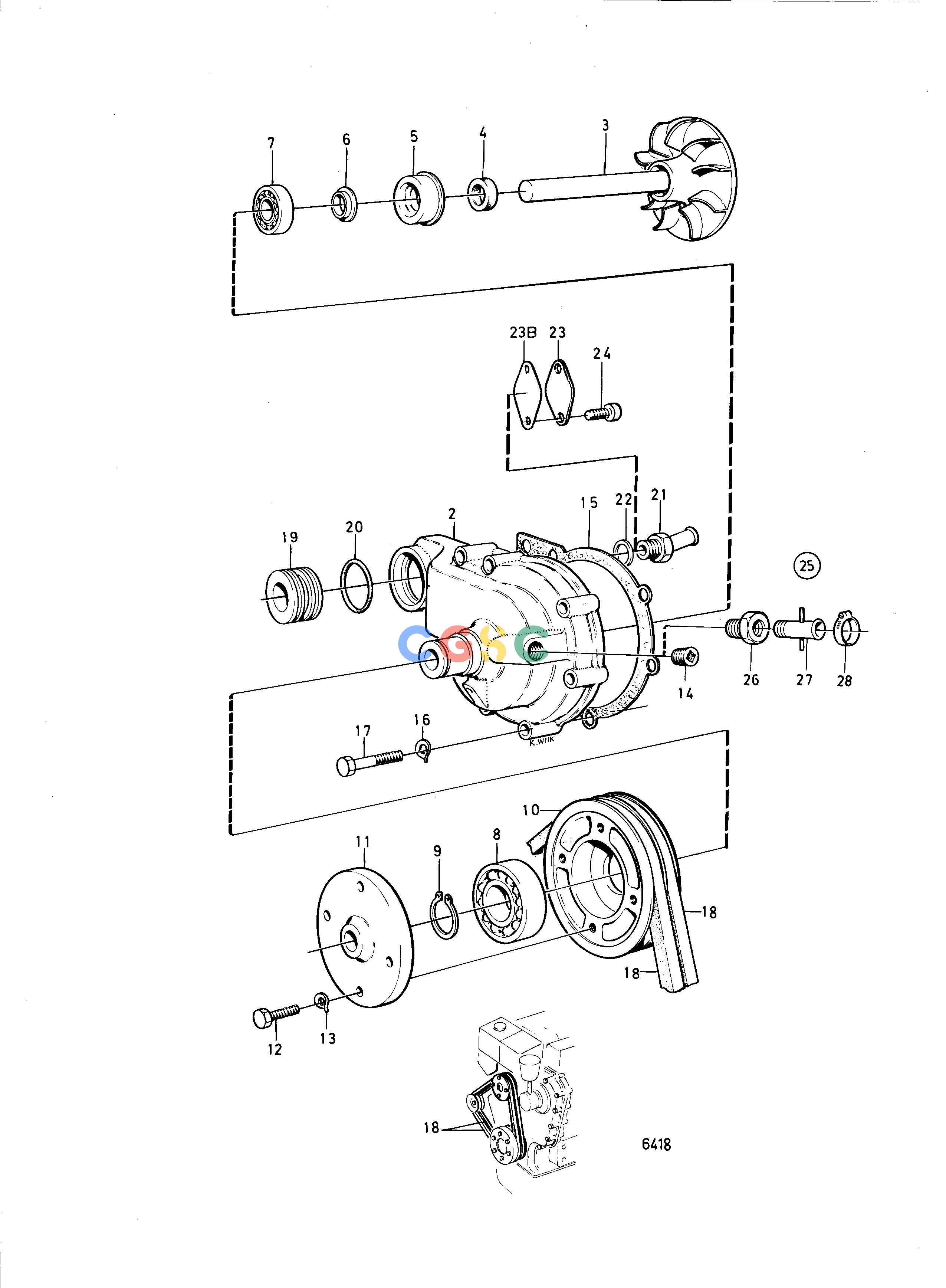

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BCooling SystemCirculation pump with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
325 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Replaced by 1pc 844422, 1pc 844416, 1pc 418445, 2pcs 955271.
|
| 1. |
844422
|
[1] |
Water pump
|
Late type
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
421306
|
[1] |
Wear ring
|
|
| 5. |
1545283
|
[1] |
Sealing ring
|
(1542833) MO 31380-
|
| 6. |
70913
|
[1] |
Deflector
|
|
| 7. |
1660609
|
[1] |
Ball bearing
|
(181670)
|
| 8. |
181538
|
[1] |
Ball bearing
|
|
| 9. |
914462
|
[1] |
Snap ring
|
|
| 10. |
1542235
|
[1] |
Pulley
|
|
| 11. |
1542236
|
[1] |
Hub
|
|
| 12. |
955295
|
[4] |
Hexagon screw
|
|
| 13. |
941907
|
[4] |
Spring washer
|
|
| 14. |
952077
|
[1] |
Plug
|
|
| 15. |
1542229
|
[1] |
Gasket
|
|
| 16. |
941907
|
[7] |
Spring washer
|
|
| 17. |
955298
|
[6] |
Hexagon screw
|
|
| 17. |
955307
|
[1] |
Hexagon screw
|
L=100mm, see group 3
|
| 18. |
958359
|
[1] |
V-belt
|
L=2X1100mm
|
| 18. |
|
|
|
See group 3
|
| 19. |
842965
|
[1] |
Pipe
|
|
| 20. |
925067
|
[2] |
O-ring
|
|
| 21. |
941534
|
[1] |
Elbow nipple
|
Excl spec. 867560 867561 867562 867563 867564 867565., Early type
|
| 22. |
418445
|
[1] |
Sealing ring, seal ring gasket
|
Excl spec. 867560 867561 867562 867563 867564 867565., Late type
|
| 22. |
418771
|
[1] |
Gasket
|
|
| 23. |
418213
|
[1] |
Flange
|
For spec. 867560 867561 867562 867563 867564 867565.
|
| 23B. |
418771
|
[1] |
Gasket
|
(418214)
|
| 24. |
955271
|
[2] |
Hexagon screw
|
For spec. 867560 867561 867562 867563 867564 867565.
|
| 25. |
845277
|
[1] |
Thermal outlet
|
|
| 26. |
16291
|
[2] |
Reduction nipple
|
|
| 27. |
365287
|
[2] |
Faucet
|
|
| 28. |
961666
|
[2] |
Hose clamp
|
|
| 28. |
875626
|
[1] |
Repair kit
|
See group 10A
|
