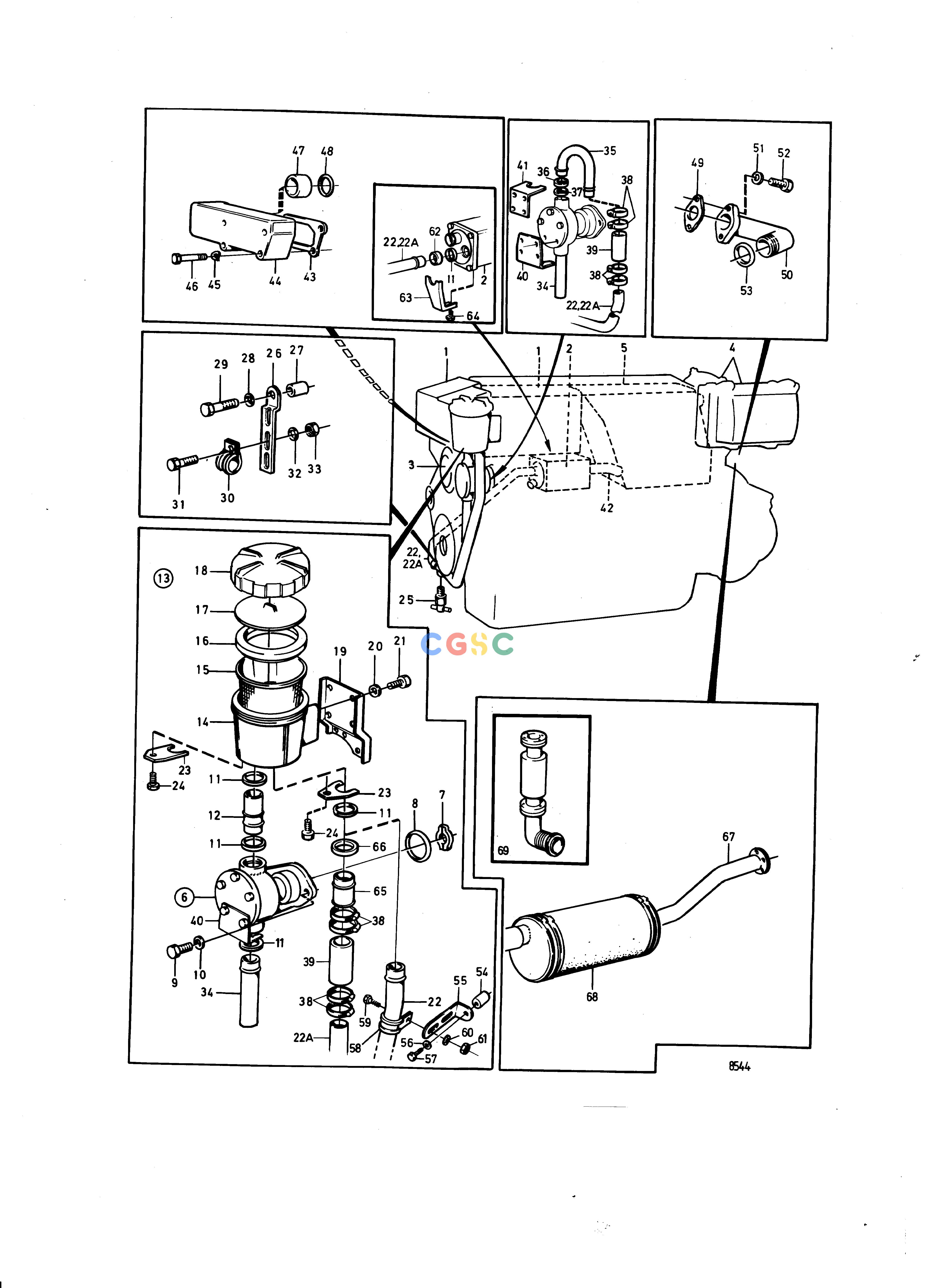

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BCooling SystemCooling System Induction and Exhaust Manifold: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
482 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7744060_039
|
|
after- cooler and thermostat with installation comps
|
|
| 1. |
|
|
|
|
| 2. |
838969
|
[1] |
Oil cooler
|
(845349) MO 39858-
|
| 3. |
7744060_040
|
|
circulation pump with installation comps
|
|
| 3. |
|
|
|
|
| 4. |
7744060_048
|
|
turbo and air filter with installation comps
|
|
| 4. |
|
|
|
|
| 5. |
7744060_054
|
|
induction and exhaust manifold and cool. water overspill with installation comps
|
|
| 5. |
|
|
|
|
| 6. |
844971
|
[1] |
Sea water pump
|
MO-33190
|
| 6. |
838522
|
[1] |
Sea water pump
|
MO33191-
|
| 7. |
845195
|
[1] |
Cross piece
|
|
| 8. |
947314
|
[1] |
O-ring
|
|
| 9. |
955295
|
[2] |
Hexagon screw
|
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
845354
|
[5] |
Sealing ring
|
|
| 12. |
845355
|
[1] |
Feed line
|
|
| 13. |
845337
|
[1] |
Sea water filter
|
MO-29495
|
| 14. |
845338
|
[1] |
Strainer housing
|
|
| 15. |
858081
|
[1] |
Strainer
|
|
| 16. |
838977
|
[1] |
Seal
|
(845329)
|
| 17. |
22396396
|
[1] |
Pressure plate
|
|
| 18. |
845317
|
[1] |
Cover
|
|
| 19. |
845299
|
[1] |
Bracket
|
MO-29495
|
| 20. |
941907
|
[4] |
Spring washer
|
MO-29495
|
| 21. |
955293
|
[4] |
Hexagon screw
|
MO-29495
|
| 22. |
845356
|
[1] |
Coolant pipe
|
MO-35689
|
| 22A. |
838558
|
[1] |
Coolant pipe
|
(845356) MO35690-
|
| 23. |
21212198
|
[2] |
Retainer
|
(84600)
|
| 24. |
940199
|
[2] |
Hexagon screw
|
|
| 25. |
947893
|
[1] |
Shut-off cock
|
|
| 26. |
845999
|
[1] |
Bracket
|
|
| 27. |
843075
|
[1] |
Spacer sleeve
|
|
| 28. |
941907
|
[1] |
Spring washer
|
|
| 29. |
955300
|
[1] |
Hexagon screw
|
|
| 30. |
952641
|
[1] |
Clamp
|
|
| 31. |
955271
|
[1] |
Hexagon screw
|
|
| 32. |
955892
|
[1] |
Washer
|
|
| 33. |
955781
|
[1] |
Hexagon nut
|
|
| 34. |
845357
|
[1] |
Coolant pipe
|
|
| 35. |
846484
|
[1] |
Coolant pipe
|
For pipe 845356, MO-35689
|
| 35. |
838560
|
[1] |
Coolant pipe
|
For pipe 838558, MO-35690-
|
| 36. |
838554
|
[1] |
Pipe retainer
|
For pipe 838560
|
| 37. |
845354
|
[1] |
Sealing ring
|
|
| 38. |
994562
|
[4] |
Hose clamp
|
|
| 39. |
952974
|
[1] |
Hose
|
L=100mm
|
| 40. |
845961
|
[1] |
Lock brace
|
MO27606-
|
| 41. |
845961
|
[1] |
Lock brace
|
For pipe 838560
|
| 42. |
952974
|
[1] |
Hose
|
|
| 43. |
1542187
|
[1] |
Gasket
|
|
| 44. |
842697
|
[1] |
Pipe elbow
|
|
| 45. |
941907
|
[4] |
Spring washer
|
|
| 46. |
955305
|
[4] |
Hexagon screw
|
|
| 47. |
842965
|
[1] |
Pipe
|
|
| 48. |
925067
|
[2] |
O-ring
|
|
| 49. |
843042
|
[1] |
Gasket
|
|
| 50. |
842614
|
[1] |
Tube
|
|
| 51. |
941906
|
[2] |
Spring washer
|
|
| 52. |
955275
|
[2] |
Hexagon screw
|
|
| 53. |
925065
|
[1] |
O-ring
|
|
| 54. |
842350
|
[1] |
Spacer sleeve
|
For pipe 845356
|
| 55. |
965561
|
[1] |
Bracket
|
For pipe 845356
|
| 56. |
941907
|
[1] |
Spring washer
|
For pipe 845356
|
| 57. |
955300
|
[1] |
Hexagon screw
|
For pipe 845356
|
| 58. |
952641
|
[1] |
Clamp
|
For pipe 845356
|
| 59. |
955271
|
[1] |
Hexagon screw
|
For pipe 845356
|
| 60. |
955892
|
[1] |
Washer
|
For pipe 845356
|
| 61. |
955781
|
[1] |
Hexagon nut
|
For pipe 845356
|
| 62. |
847017
|
[1] |
Pipe retainer
|
For pipe 838558
|
| 63. |
838557
|
[1] |
Brace
|
For pipe 838558
|
| 64. |
940132
|
[1] |
Hexagon screw
|
For pipe 838558
|
| 65. |
838559
|
[1] |
Hose connection
|
For pipe 838558
|
| 66. |
847017
|
[1] |
Pipe retainer
|
For pipe 838558
|
| 67. |
|
|
|
|
| 68. |
|
|
|
|
| 69. |
|
|
|
See group 9
|
