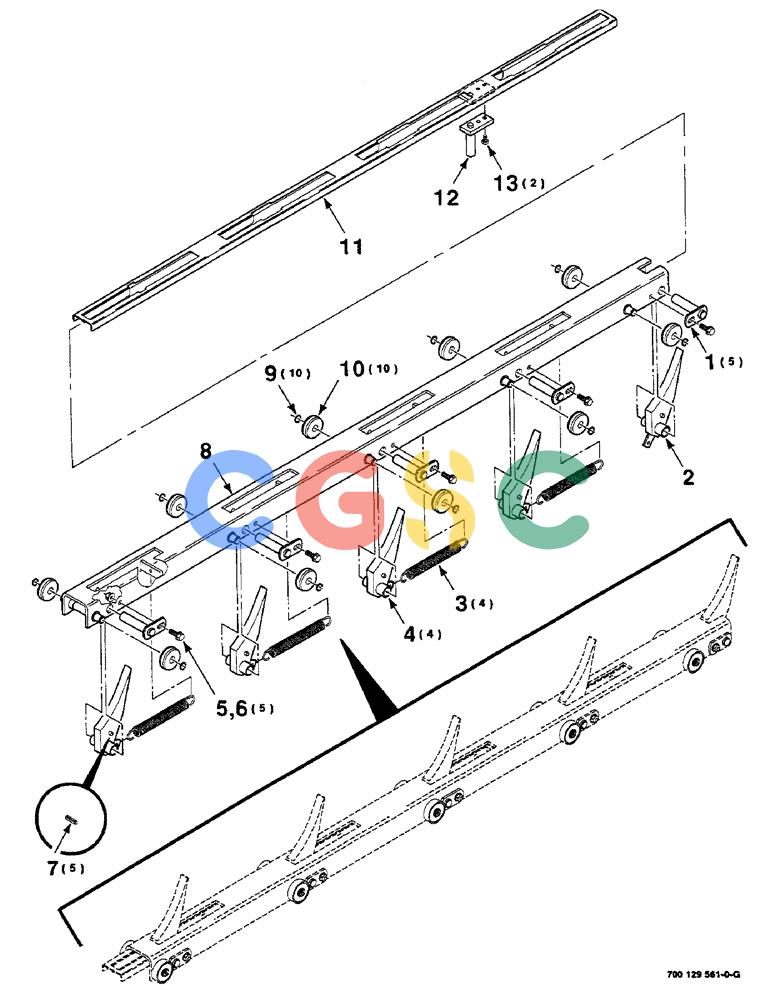

凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (5-26) - EJECTOR CHANNEL ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
157 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700129567
|
[5] |
PIN
|
CAS
WA - hay dog
|
| 2. |
700129695
|
[1] |
PLATE ASSY.
|
CAS
HAY DOG WA - ejector
|
| 3. |
700714166
|
[4] |
SPRING
|
CAS
- extension
|
| 4. |
700129571
|
[4] |
PLATE ASSY.
|
CAS
HAY DOG WA - ejector
|
| 5. |
121-226
|
[5] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 6. |
232-5316
|
[5] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 7. |
17244R1
|
[5] |
LOCK PIN,5/16" x 1 1/4", Slotted
|
IH
PIN, 5/16" x 1 1/4", Slotted Superseded by part number: 87721
|
| 8. |
700129562
|
[1] |
CHANNEL
|
CAS
WA
|
| 9. |
103-1162
|
[10] |
SNAP RING,#62, Ext
|
CAS
Ring, Snap, #62, Ext
|
| 10. |
667925R91
|
[10] |
ROLLER BEARING,0.628" ID x 2" OD x 15 mm
|
IH
Superseded by part number: 47577176
|
| 11. |
700129705
|
[1] |
CHANNEL
|
CAS
WA
|
| 12. |
700129701
|
[1] |
PIN
|
CAS
WA
|
| 13. |
164-40
|
[2] |
HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"
|
CAS
5/16-18 X 3/4 HSFHCS SPL Superseded by part number: 61-43112
|
