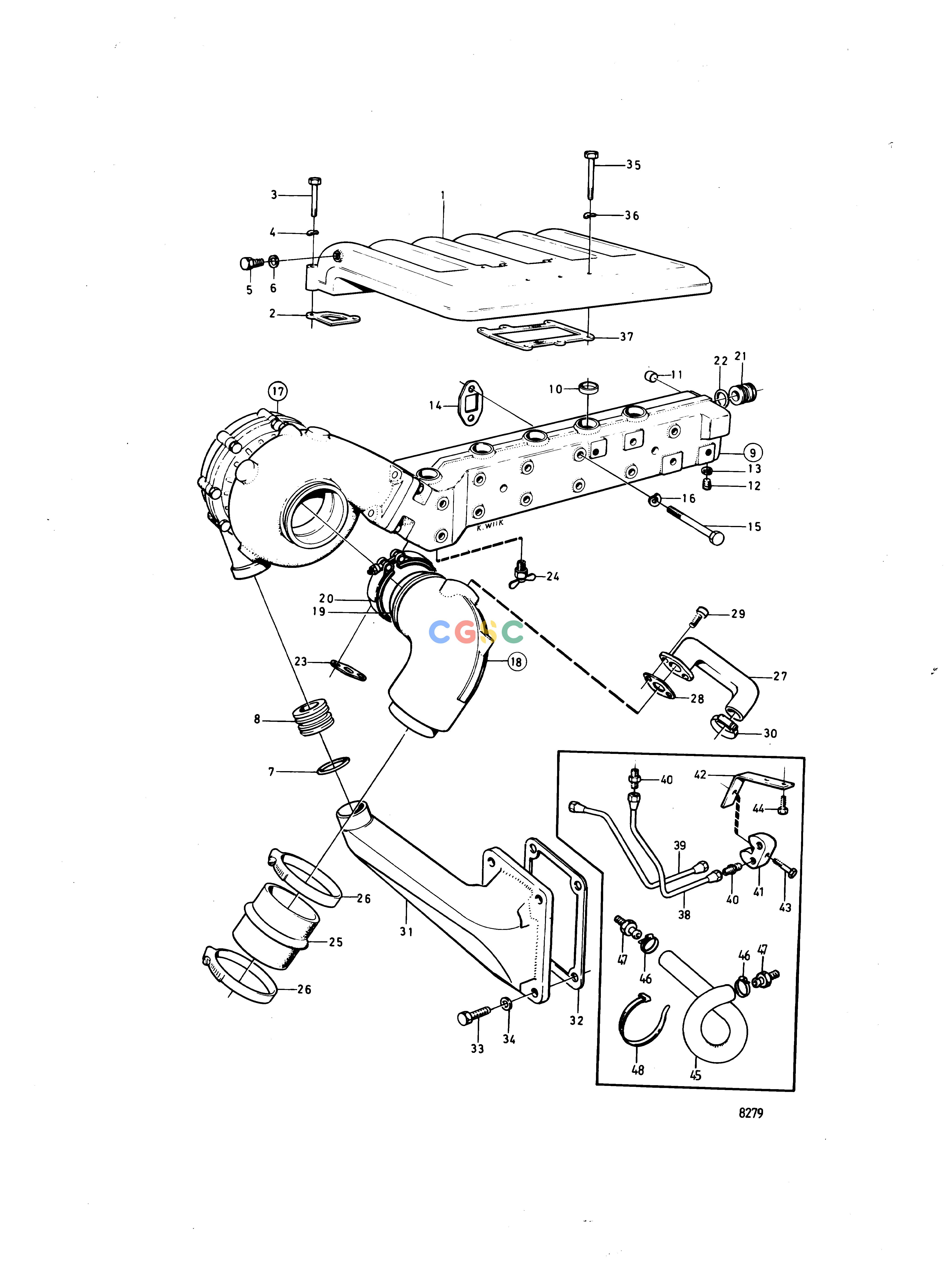

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BCooling SystemInduction- and Exhaust Manifold and Cooling Water OverspillEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
156 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843513
|
[1] |
Inlet manifold
|
|
| 2. |
1542289
|
[6] |
Gasket
|
|
| 3. |
955302
|
[10] |
Hexagon screw
|
L=60mm
|
| 3. |
955303
|
[2] |
Hexagon screw
|
L=65mm
|
| 4. |
941907
|
[10] |
Spring washer
|
|
| 5. |
960628
|
[1] |
Plug
|
|
| 6. |
947281
|
[1] |
Gasket
|
|
| 7. |
842965
|
[1] |
Pipe
|
|
| 8. |
948610
|
[2] |
O-ring
|
|
| 9. |
842569
|
[1] |
Exhaust pipe
|
|
| 10. |
946780
|
[11] |
Cap plug
|
|
| 11. |
955074
|
[1] |
Plug
|
|
| 12. |
960632
|
[2] |
Plug
|
|
| 13. |
957181
|
[2] |
Gasket
|
|
| 14. |
1542123
|
[6] |
Gasket
|
(1542177)
|
| 15. |
955336
|
[2] |
Hexagon screw
|
L=160mm
|
| 15. |
955332
|
[7] |
Hexagon screw
|
L=120mm
|
| 15. |
955333
|
[3] |
Hexagon screw
|
L=130mm
|
| 16. |
941908
|
[8] |
Spring washer
|
|
| 17. |
845294
|
[1] |
Turbocharger
|
|
| 17. |
3802033
|
[1] |
Turbocharger
|
|
| 18. |
845261
|
[1] |
Exhaust pipe elbow
|
|
| 19. |
845408
|
[1] |
Gasket
|
|
| 20. |
842993
|
[1] |
V-clamp
|
|
| 21. |
842965
|
[2] |
Pipe
|
|
| 22. |
925067
|
[4] |
O-ring
|
|
| 23. |
843042
|
[1] |
Gasket
|
|
| 24. |
947893
|
[1] |
Shut-off cock
|
|
| 25. |
843228
|
[1] |
Exhaust hose
|
See group 4A
|
| 26. |
853012
|
[2] |
Hose clamp
|
(961676)
|
| 27. |
845528
|
[1] |
Connector
|
|
| 28. |
845527
|
[1] |
Gasket
|
|
| 29. |
959219
|
[2] |
Hex. socket screw
|
|
| 30. |
961670
|
[2] |
Hose clamp
|
|
| 31. |
845453
|
[1] |
Connecting pipe
|
Excl AQAD40B/290,290DP
|
| 31. |
|
|
|
TAMD40B MO43385-
|
| 31. |
838456
|
[1] |
Connecting pipe
|
AQAD40B/290,290DP
|
| 32. |
845353
|
[1] |
Gasket
|
|
| 33. |
955297
|
[2] |
Hexagon screw
|
For 838456
|
| 33. |
940129
|
[2] |
Hexagon screw, screw resilient washer
|
For 838456
|
| 34. |
941907
|
[4] |
Spring washer
|
|
| 35. |
955304
|
[4] |
Hexagon screw
|
L=70mm
|
| 35. |
955303
|
[2] |
Hexagon screw
|
L=65mm
|
| 36. |
941907
|
[6] |
Spring washer
|
|
| 37. |
844084
|
[1] |
Gasket
|
|
| 38. |
845857
|
[1] |
Tube
|
Replaced by 1pc hose-943366,2pcs clamp-943469 and 2pcs nipple-1136965.
|
| 39. |
845858
|
[1] |
Tube
|
Replaced by 1pc hose-943366,2pcs clamp-943469 and 2pcs nipple-1136965.
|
| 40. |
954337
|
[4] |
Nipple
|
|
| 41. |
829146
|
[1] |
Fitting
|
|
| 42. |
845859
|
[1] |
Bracket
|
|
| 43. |
955275
|
[1] |
Hexagon screw
|
|
| 44. |
955300
|
[1] |
Hexagon screw
|
|
| 45. |
943366
|
[2] |
Rubber hose
|
L=3800mm
|
| 46. |
994555
|
[4] |
Hose clamp
|
|
| 47. |
1136965
|
[4] |
Nipple
|
|
| 48. |
948210
|
[1] |
Cable tie
|
|
