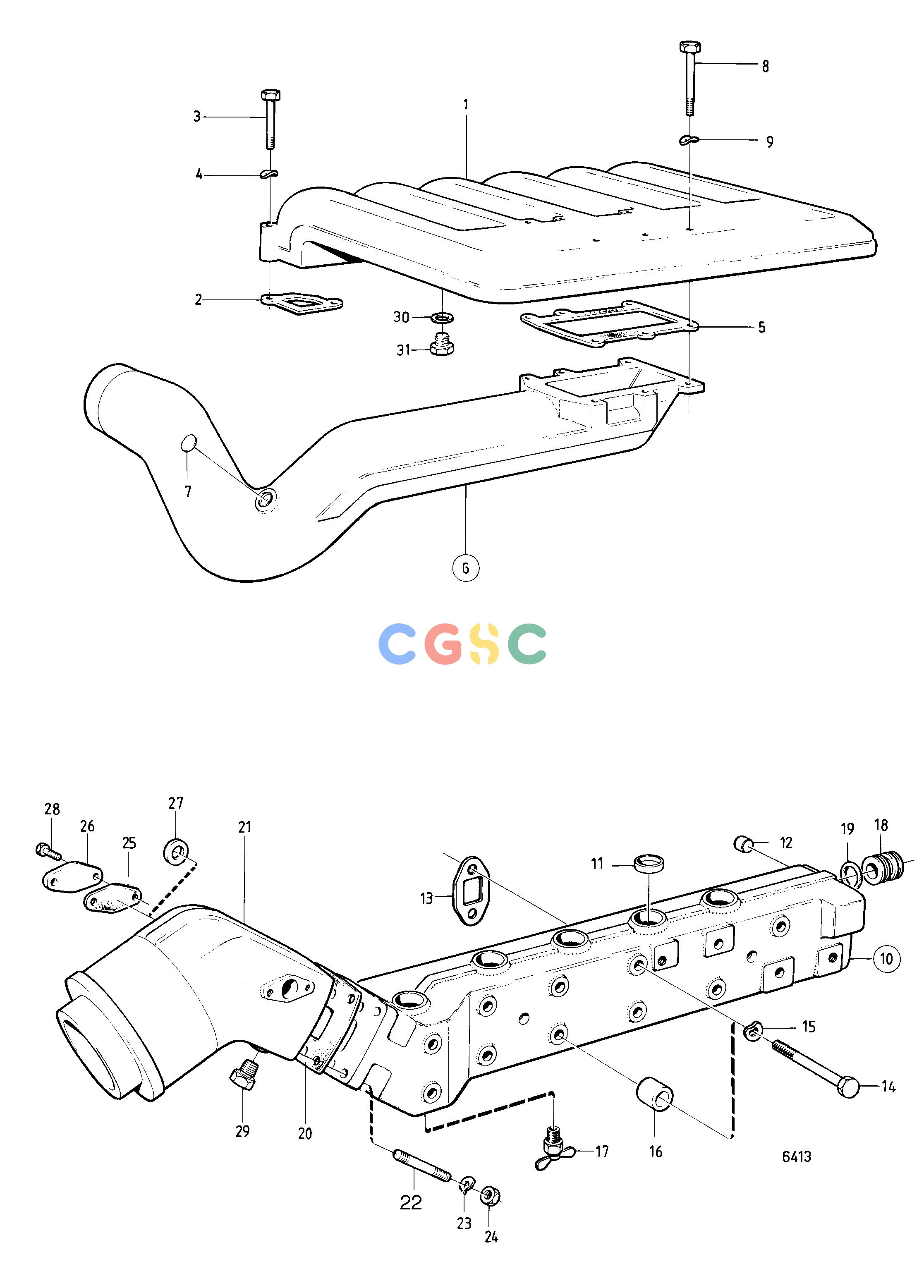

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BCooling SystemInduction- and Exhaust Manifold with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
898 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843513
|
[1] |
Inlet manifold
|
|
| 2. |
1542289
|
[6] |
Gasket
|
|
| 3. |
955302
|
[10] |
Hexagon screw
|
Late type
|
| 3. |
955303
|
[2] |
Hexagon screw
|
Late type, see group 2A
|
| 4. |
941907
|
[12] |
Spring washer
|
|
| 5. |
844084
|
[1] |
Gasket
|
|
| 6. |
844249
|
[1] |
Tube
|
|
| 7. |
955095
|
[2] |
Expansion plug
|
|
| 8. |
955303
|
[6] |
Hexagon screw
|
|
| 9. |
941907
|
[6] |
Spring washer
|
|
| 10. |
842569
|
[1] |
Exhaust pipe
|
|
| 11. |
946780
|
[11] |
Cap plug
|
|
| 12. |
955074
|
[1] |
Plug
|
|
| 13. |
1542123
|
[6] |
Gasket
|
(1542177)
|
| 14. |
955332
|
[7] |
Hexagon screw
|
L=120mm, late type
|
| 14. |
955532
|
[8] |
Hexagon screw
|
L=95mm, early type
|
| 14. |
955336
|
[2] |
Hexagon screw
|
L=160mm
|
| 14. |
955334
|
[1] |
Hexagon screw
|
L=140mm
|
| 14. |
955333
|
[1] |
Hexagon screw
|
L=130mm, late type
|
| 15. |
941908
|
[12] |
Spring washer
|
|
| 16. |
824205
|
[1] |
Spacer sleeve
|
|
| 17. |
82745
|
[1] |
Shut-off cock
|
|
| 18. |
842965
|
[2] |
Pipe, adapter sealing
|
|
| 19. |
925067
|
[4] |
O-ring, ring
|
|
| 20. |
843009
|
[1] |
Gasket
|
|
| 21. |
844091
|
[1] |
Exhaust manifold
|
|
| 22. |
924079
|
[4] |
Stud
|
|
| 23. |
955895
|
[4] |
Washer
|
|
| 24. |
940183
|
[4] |
Hexagon nut
|
|
| 25. |
843042
|
[1] |
Gasket
|
|
| 26. |
844093
|
[1] |
Flange
|
|
| 27. |
842913
|
[1] |
Sealing ring
|
See group 4A
|
| 28. |
955271
|
[2] |
Hexagon screw
|
|
| 29. |
192134
|
[1] |
Plug
|
|
| 30. |
957173
|
[1] |
Gasket
|
|
| 31. |
960628
|
[1] |
Plug
|
|
