凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (6-32) - LUBE HARNESS ASSEMBLIES, TWINE FINGER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
898 次

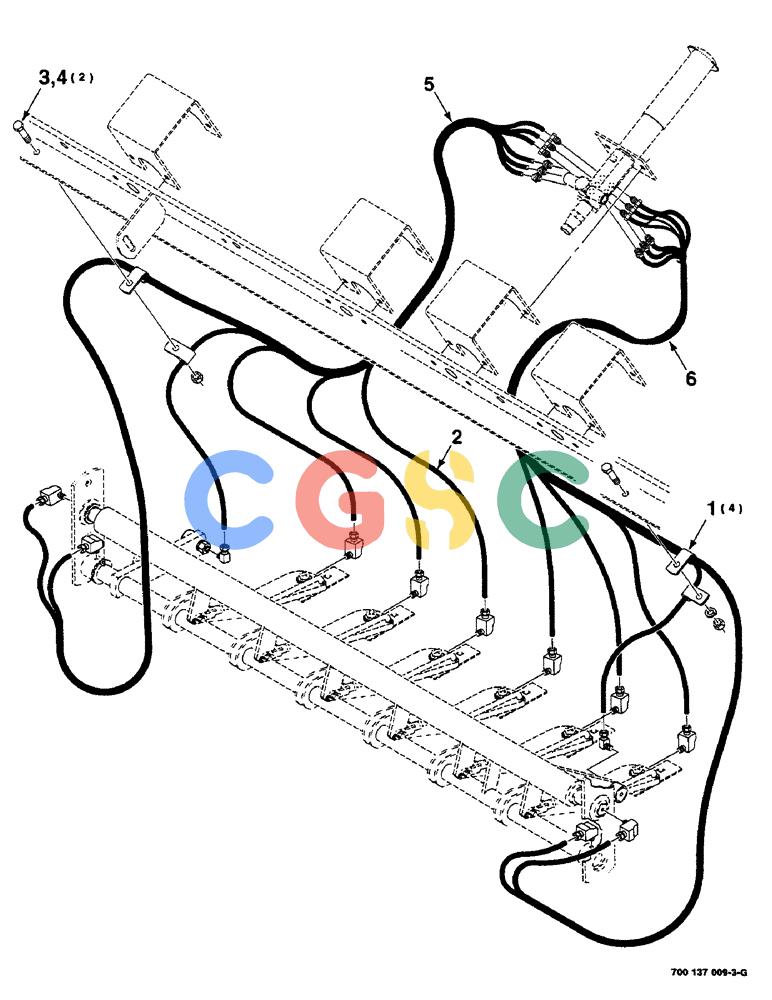

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
515-2363
|
[4] |
CLAMP,M6.3, Insul, 3/8" Bolt
|
CAS
Superseded by part number: 675162
|
| 2. |
700113359
|
[1] |
TUBE,0.125" OD, 3048 mm Length
|
CAS
TUBING - nylon (10 foot bulk)
|
| 3. |
163-16
|
[2] |
SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"
|
CAS
1/4-20 X 3/4 HWHMS
|
| 4. |
1703354
|
[2] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 5. |
700113356
|
[1] |
FLEXIBLE HOSE
|
CAS
HARNESS ASSEMBLY
|
| 6. |
700113355
|
[1] |
FLEXIBLE HOSE
|
CAS
HARNESS ASSEMBLY
|
