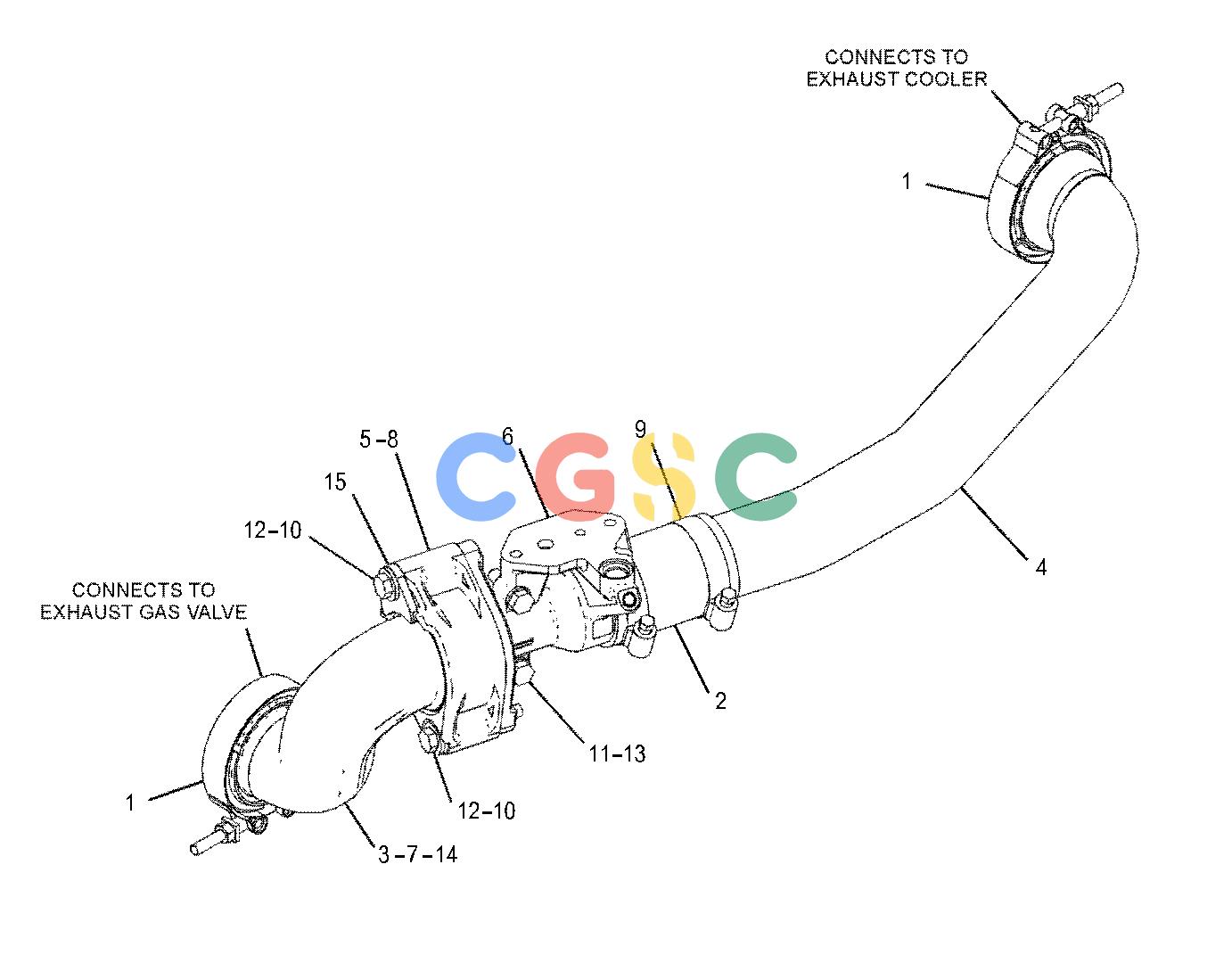

卡特零件查询（730） 343-0621: LINES GP-AIR
广数供应链运营团队, 15 02月, 2025，浏览：
213 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9N-5085 | [2] | CLAMP | |
| 2. | 328-7546 | [1] | HOSE | |
| 3. | 450-3124C | [1] | TUBE-AIR | |
| 4. | 344-8272 | [1] | TUBE AS-AIR | |
| 5. | 450-3123C | [1] | FLANGE | |
| 6. | 353-7173 | [1] | TUBE-VENTURI | |
| 7. | 109-2332C | [2] | SEAL-O-RING | |
| 8. | 272-2583 | [1] | SEAL-O-RING | |
| 9. | 314-7599 | [2] | CLAMP-BAND | |
| 10. | 3E-4352C | [3] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 11. | 6V-2317M | [2] | BOLT(M8X1.25X30-MM) | |
| 12. | 8T-0100CM | [2] | BOLT(M8X1.25X60-MM) | |
| 13. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 14. | 5P-5757 | [1] | SEAL-O-RING | |
| 15. | 483-7224C | [1] | RETAINER | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
