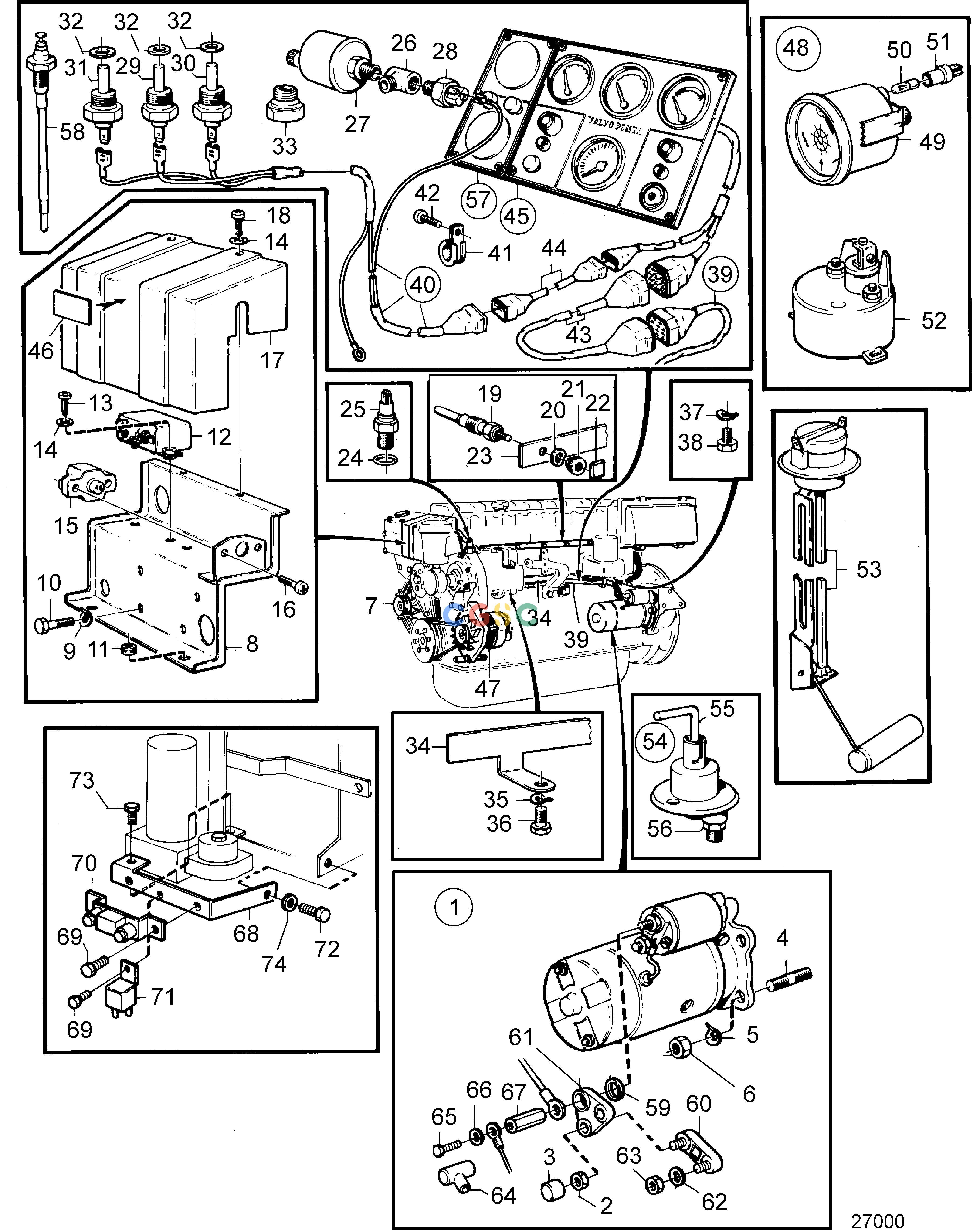

| 1. |
829527
|
[1] |
Starter motor
|
|
| 1. |
838987
|
[1] |
Starter motor
|
24V
|
| 2. |
853573
|
[1] |
Hexagon nut
|
|
| 3. |
853572
|
[1] |
Protective cap
|
|
| 4. |
953067
|
[3] |
Stud
|
|
| 5. |
941908
|
[3] |
Spring washer
|
|
| 6. |
955783
|
[3] |
Hexagon nut
|
|
| 7. |
834625
|
[1] |
Alternator, alternator and installation comps
|
MO-1900 repl by 834964
|
| 7. |
7744060_060
|
|
alternator and installation comps
|
|
| 7. |
841378
|
[1] |
Alternator, alternator and installation comps
|
Replaced by 841768., MO12770-21869
|
| 7. |
841768
|
[1] |
Alternator, alternator and installation comps
|
Replaced by alternator 841765 +pulley 841812 + tension iron 845021., MO21870-25724
|
| 7. |
841765
|
[1] |
Alternator, alternator and installation comps
|
Repl by 858838, MO25725-
|
| 7. |
858838
|
[1] |
Alternator, alternator and installation comps
|
|
| 7. |
845940
|
[1] |
Alternator, alternator installation comps
|
Spec 867948., 24V repl by 849563
|
| 7. |
849563
|
[1] |
Alternator
|
|
| 8. |
843140
|
[1] |
Clutch housing
|
|
| 8. |
846791
|
[1] |
Box
|
|
| 9. |
941907
|
[4] |
Spring washer
|
See group 2B
|
| 10. |
955305
|
[4] |
Hexagon screw
|
See group 2B
|
| 11. |
94026
|
[2] |
Rubber bushing
|
|
| 12. |
843145
|
[2] |
Relay
|
Replaced by 1pc relay-838518,2pcs cable terminal-881485 and 1pc insulator-958210.
|
| 12. |
838518
|
[2] |
Relay
|
|
| 13. |
955140
|
[4] |
Cross recessed screw
|
|
| 14. |
940090
|
[6] |
Washer
|
|
| 15. |
841178
|
[1] |
Automatic fuse
|
(835596)
|
| 16. |
950013
|
[2] |
Cross recessed screw
|
|
| 17. |
842915
|
[1] |
Cap
|
|
| 18. |
955138
|
[2] |
Cross recessed screw
|
|
| 19. |
1542411
|
[6] |
Glow plug
|
(1542319)
|
| 19. |
838954
|
[6] |
Glow plug
|
Spec 867948.
|
| 20. |
941905
|
[6] |
Spring washer
|
|
| 21. |
955780
|
[6] |
Hexagon nut
|
|
| 22. |
1542408
|
[6] |
Protecting casing
|
|
| 23. |
1542296
|
[1] |
Rail
|
|
| 24. |
925059
|
[1] |
O-ring
|
|
| 25. |
1502028
|
[1] |
Tachometer sensor
|
(829571)
|
| 26. |
942490
|
[1] |
T-nipple
|
|
| 27. |
843231
|
[1] |
Oil pressure sensor
|
|
| 27. |
834920
|
[1] |
Oil pressure sensor
|
For TMD40A spec 867478, AQD40A spec 867479.
|
| 28. |
881348
|
[1] |
Pressure switch
|
|
| 29. |
827151
|
[1] |
Temperature sensor
|
|
| 29. |
834629
|
[1] |
Temperature sensor
|
For TMD40A spec 867478, AQD40A spec 867479.
|
| 29. |
858596
|
[1] |
Temperature sensor
|
For dual station., Combined temperature sensor and guard.
|
| 29. |
|
|
|
MO38777-
|
| 30. |
843325
|
[1] |
Temperature sensor
|
Spec 867948.
|
| 30. |
833927
|
[1] |
Thermo monitor
|
|
| 30. |
822858
|
[1] |
Thermo monitor
|
Spec 867948.
|
| 31. |
840345
|
[1] |
Temperature sensor
|
Alternative for temp.sender 827151 and thermoswitch control 833927.
|
| 32. |
957181
|
[3] |
Gasket
|
|
| 33. |
844828
|
[1] |
Nipple
|
For TMD40A spec 867478, AQD40A spec 867479.
|
| 34. |
|
|
|
|
| 35. |
941908
|
[1] |
Spring washer
|
MO-26461
|
| 36. |
955314
|
[1] |
Hexagon screw
|
MO-26461
|
| 37. |
941907
|
[1] |
Spring washer
|
MO-26461
|
| 38. |
955293
|
[1] |
Hexagon screw
|
MO-26461
|
| 38. |
940199
|
[1] |
Hexagon screw
|
AQAD40A spec 867560, -561, -562. TAMD40A spec 867563, -564, -565.
|
| 39. |
843450
|
[1] |
Cable block
|
Engine L=7000mm
|
| 39. |
844869
|
[1] |
Cable block, cable unit
|
For TMD40A spec 867478, AQD40A spec 867479., Engine
|
| 39. |
|
|
|
L=7000mm
|
| 39. |
845344
|
[1] |
Cable block, cable unit
|
AQAD40A spec 867560, -561, -562. TAMD40A spec 867563, -564, -565., Engine
|
| 39. |
846648
|
[1] |
Extension cable
|
CPC, L=3000mm
|
| 39. |
846649
|
[1] |
Extension cable
|
CPC, L=5000mm
|
| 39. |
846650
|
[1] |
Extension cable
|
CPC, L=7000mm
|
| 40. |
843501
|
[1] |
Cable block
|
Alarm
|
| 40. |
844892
|
[1] |
Cable block, cable unit
|
For TMD40A spec 867478, AQD40A spec 867479., Alarm
|
| 40. |
|
|
|
L=7000mm
|
| 40. |
845451
|
[1] |
Cable block, cable unit
|
AQAD40A spec 867560, -561, -562. TAMD40A spec 867563, -564, -565., Alarm
|
| 40. |
858057
|
[1] |
Cable block
|
Spec 867948.
|
| 41. |
952628
|
[1] |
Clamp
|
MO-26461
|
| 42. |
956094
|
[1] |
Cross recessed screw
|
MO-26461
|
| 43. |
843214
|
[1] |
Cable block
|
Excl TMD40A spec 867478, AQD40A spec 867479., Engine
|
| 44. |
839180
|
[1] |
Extension cable, extension cable
|
Excl TMD40A spec 867478, AQD40A spec 867479., Alarm
|
| 44. |
|
|
|
L=7000mm
|
| 45. |
843525
|
[1] |
Instrument panel
|
Excl TMD40A spec 867478, AQD40A spec 867479.
|
| 45. |
838926
|
[1] |
Instrument panel
|
|
| 45. |
858036
|
[1] |
Instrument panel
|
24V
|
| 45. |
|
|
|
Late type, see group 9
|
| 46. |
843141
|
[1] |
Decal
|
|
| 47. |
|
|
|
See group 9
|
| 48. |
834401
|
[1] |
Rudder indicator
|
|
| 49. |
834383
|
[1] |
Rudder indicator
|
|
| 50. |
19923
|
[1] |
Bulb
|
|
| 51. |
808175
|
[1] |
Bulb socket
|
|
| 52. |
837772
|
[1] |
Position sensor
|
|
| 53. |
834400
|
[1] |
Tank gauge, tank gauge drinking water
|
See group 9
|
| 53. |
834399
|
[1] |
Tank gauge, tank gauge fuel
|
See group 9
|
| 54. |
870980
|
[1] |
Main switch
|
|
| 55. |
243700
|
[1] |
Handle
|
|
| 56. |
955783
|
[2] |
Hexagon nut
|
|
| 57. |
843604
|
[1] |
Instrument panel
|
See group 9
|
| 57. |
|
|
|
Late type, see group 9
|
| 58. |
|
|
|
See group 9
|
| 59. |
829714
|
[1] |
Sealing ring
|
AQAD40B/290,290DP
|
| 60. |
853502
|
[1] |
Fuse
|
AQAD40B/290,290DP
|
| 61. |
852986
|
[1] |
Current bar
|
AQAD40B/290,290DP
|
| 62. |
941906
|
[2] |
Spring washer
|
AQAD40B/290,290DP
|
| 63. |
955781
|
[2] |
Hexagon nut
|
AQAD40B/290,290DP
|
| 64. |
855798
|
[1] |
Protecting sleeve
|
|
| 65. |
940199
|
[1] |
Hexagon screw
|
|
| 66. |
941907
|
[1] |
Spring washer
|
|
| 67. |
855314
|
[1] |
Spacer nut
|
|
| 68. |
858078
|
[1] |
Bracket
|
Spec 867948.
|
| 69. |
955268
|
[3] |
Hexagon screw
|
Spec 867948.
|
| 70. |
838980
|
[1] |
Series resistance
|
Spec 867948.
|
| 71. |
838955
|
[1] |
Relay
|
Spec 867948.
|
| 72. |
955318
|
[1] |
Hexagon screw
|
Spec 867948., See group 2B
|
| 73. |
955296
|
[1] |
Hexagon screw
|
Spec 867948.
|
