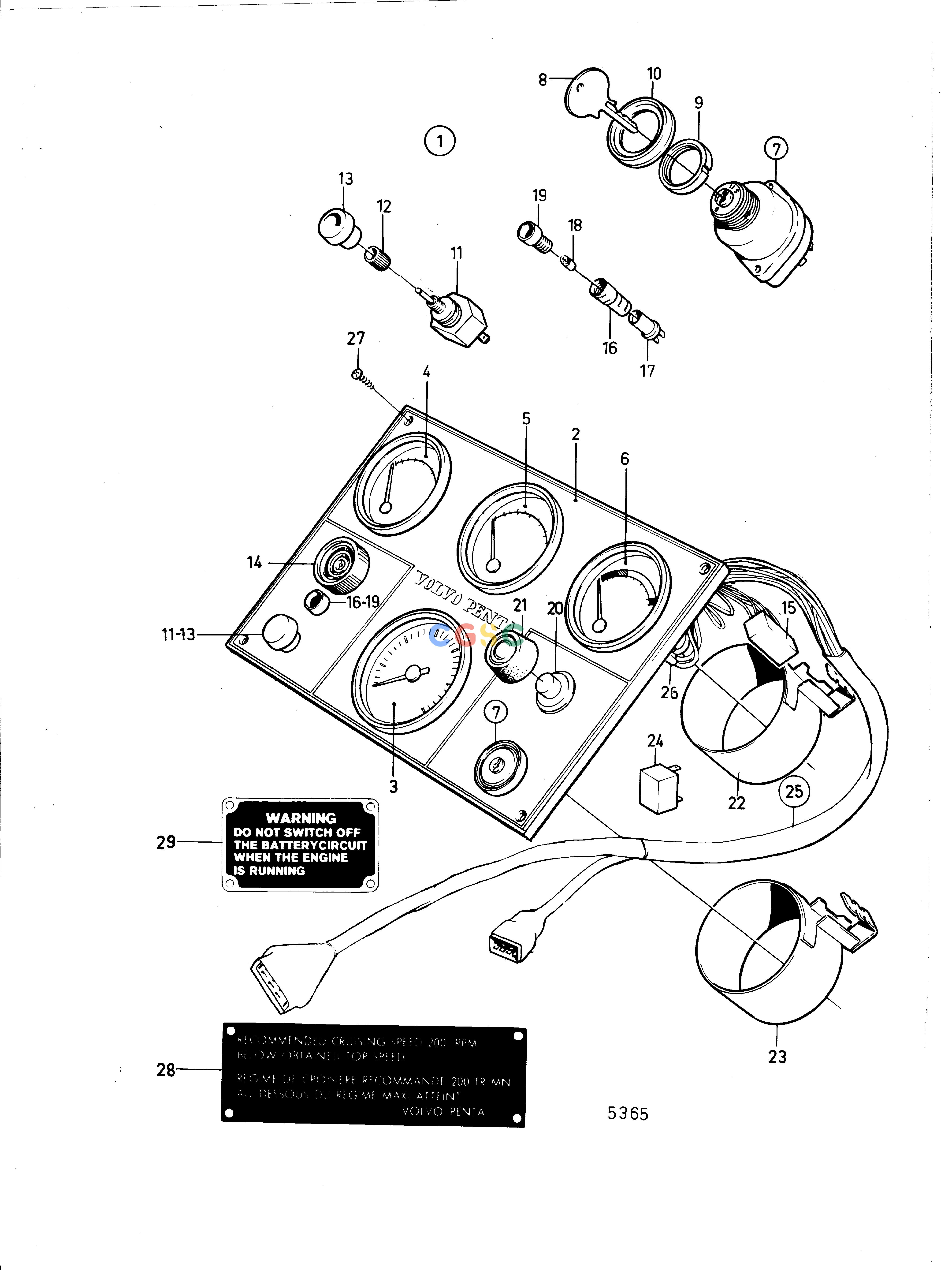

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BElectrical SystemInstrument PanelEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
501 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843525
|
[1] |
Instrument panel
|
|
| 2. |
843413
|
[1] |
Instrument plate
|
|
| 3. |
842872
|
[1] |
Tachometer
|
|
| 4. |
837759
|
[1] |
Thermometer
|
|
| 5. |
837757
|
[1] |
Instrument
|
|
| 6. |
837895
|
[1] |
Voltmeter
|
|
| 7. |
241315
|
[1] |
Starter switch
|
|
| 8. |
241383
|
[2] |
Key
|
State key code when ordering
|
| 9. |
829169
|
[1] |
Nut
|
|
| 10. |
827767
|
[1] |
Collar
|
|
| 11. |
842918
|
[1] |
Rheostat
|
(842917)
|
| 12. |
843002
|
[1] |
Nut
|
|
| 13. |
842921
|
[1] |
Knob
|
|
| 14. |
827597
|
[1] |
Signalling device
|
|
| 15. |
843502
|
[1] |
Alarm separator
|
|
| 16. |
819350
|
[1] |
Sleeve
|
|
| 17. |
808175
|
[5] |
Bulb socket
|
|
| 18. |
19923
|
[5] |
Bulb
|
|
| 19. |
827766
|
[1] |
Lens
|
|
| 20. |
843684
|
[1] |
Button
|
|
| 21. |
837533
|
[1] |
Rubber cap
|
|
| 22. |
837859
|
[1] |
Anchorage
|
|
| 23. |
837860
|
[1] |
Anchorage
|
|
| 24. |
837723
|
[1] |
Resistor
|
|
| 25. |
843443
|
[1] |
Cable block
|
|
| 26. |
7744060_069
|
|
cables and cable terminals
|
|
| 26. |
|
|
|
|
| 27. |
944540
|
[4] |
Screw
|
|
| 28. |
837374
|
[1] |
Sign
|
|
| 29. |
821042
|
[1] |
Sign
|
|
