凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (09-30) - ACCUMULATOR MOUNTING KIT, 8582 ONLY, HK40965 ACCUMULATOR MOUNTING KIT COMPLETE Case Agriculture_凯斯Case_工程机械

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (09-30) - ACCUMULATOR MOUNTING KIT, 8582 ONLY, HK40965 ACCUMULATOR MOUNTING KIT COMPLETE Case Agriculture

广数供应链运营团队, 15 02月, 2025，浏览： 764 次

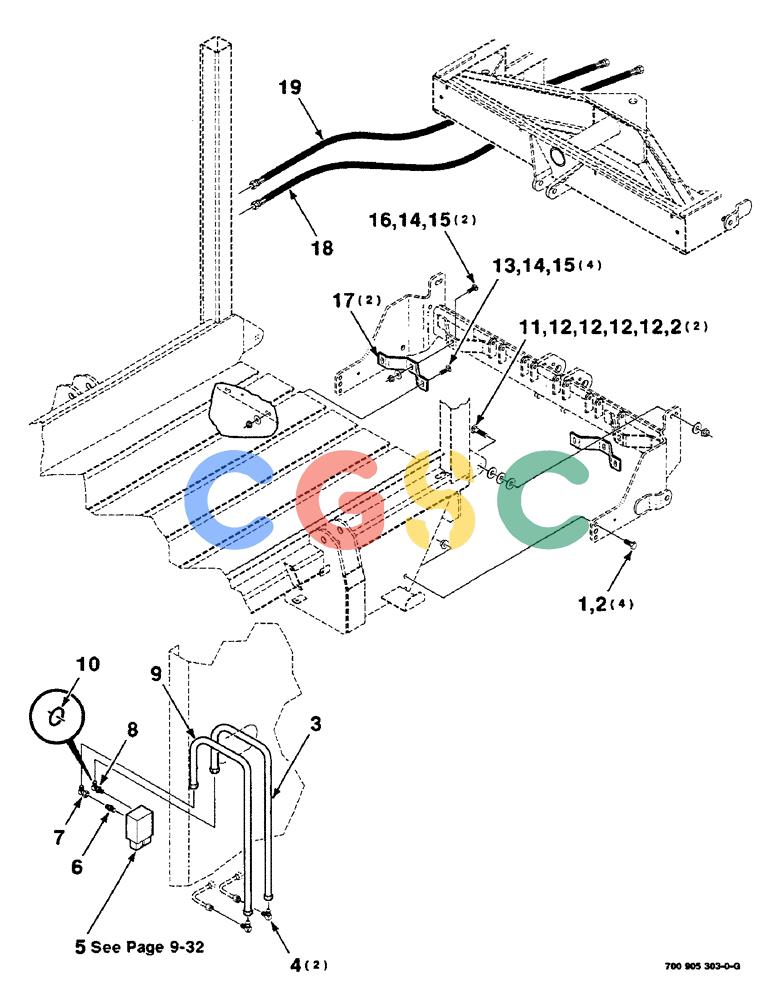

Pos.	Part No	Qty	Parts name	Comments
. .	HK40965	[1]	ACCUMULATOR MOUNTING KIT COMPLETE
1.	413-1024	[4]	BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5	CAS Superseded by part number: 88062
2.	232-53110	[6]	FLANGE NUT,Flg, 5/8"-11	CAS 5/8-11 HFTLN GR/G Superseded by part number: 84180923
3.	700706396	[1]	TUBE	CAS LINE - hydraulic
4.	218-473	[2]	ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC	CAS 90 DEGREES Superseded by part number: 241074
5.	700706395	[1]	VALVE PRESSURE RELIE	CAS VALVE - control
6.	218-5058	[1]	HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB	CAS FITTING - hydraulic Superseded by part number: 128817, 72186139
7.	218-980	[1]	ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw	CAS Superseded by part number: 72186136, 86629586
8.	218-5128	[1]	ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB	CAS - 90 degrees (Incl. item 10) Superseded by part number: 87329788
9.	700706397	[1]	TUBE	CAS LINE - hydraulic
10.	237-6008	[1]	O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro	CAS 8-1, 90 Duro, .644" ID x .087" Thk Superseded by part number: 128825
11.	433-1032	[2]	CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5	CAS 5/8-11 X 2-1/2 RHSNB Superseded by part number: 280742
12.	700711165	[8]	WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk	CAS 5/8 HARDENED WIDE PLAIN WASHER
13.	433-828	[4]	CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5	CAS 1/2-13 X 1-3/4 RHSNB Superseded by part number: 88530
14.	700711557	[6]	WASHER	CAS 1/2 HARDENED WIDE PLAIN WASHER
15.	231-5348	[6]	FLANGE NUT,Flg, 1/2"-13	CAS 1/2-13 HFTLN GR/G Superseded by part number: 86521610
16.	433-824	[2]	CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5	CAS 1/2-13 X 1-1/2 RHSNB Superseded by part number: 280420, 72187237
17.	700138210	[2]	SUPPORT	HFI - hitch
18.	700706848	[1]	FLEXIBLE HOSE	CAS HOSE - hydraulic
19.	700706530	[1]	FLEXIBLE HOSE	CAS HOSE - hydraulic
