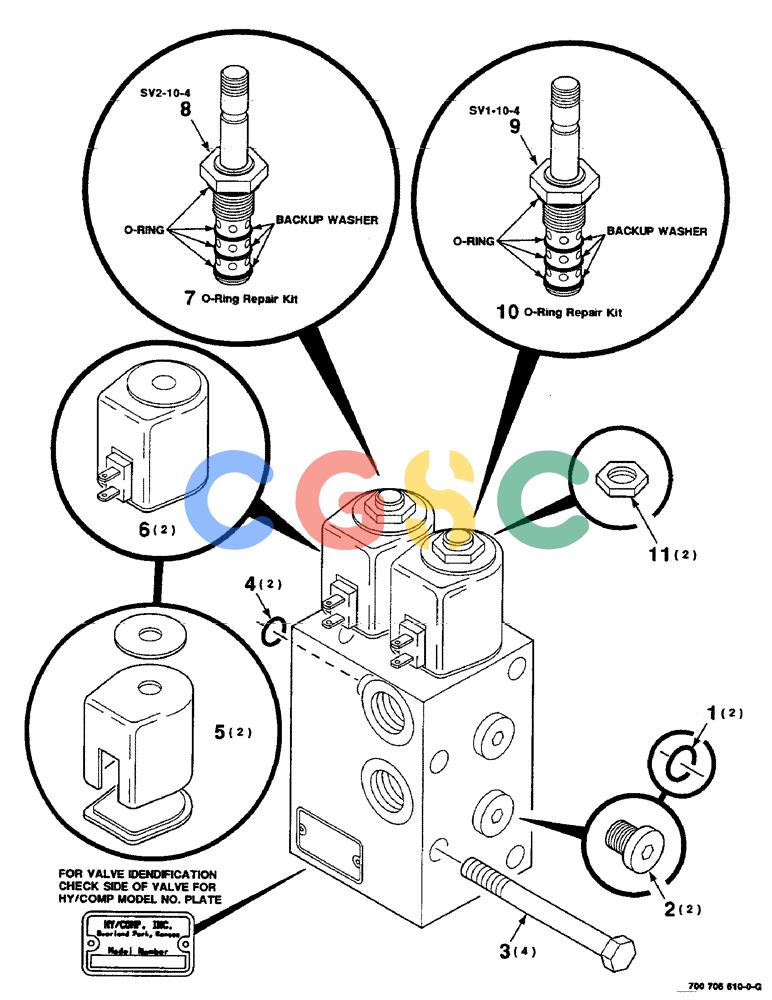

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (09-32) - HYDRAULIC CONTROL VALVE ASSEMBLY, 700706395 HYDRAULIC ASSEMBLY COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700706395
|
[1] |
VALVE PRESSURE RELIE
|
CAS
HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE
|
| 1. |
238-5010
|
[2] |
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
|
CAS
-010, 70 Duro, .239" ID x .070" Thk Superseded by part number: 49886
|
| 2. |
218-5151
|
[2] |
PLUG,Hex Hd, 5/16"-24 ORB
|
CAS
- ORB (Includes Item 1)
|
| 3. |
7772767
|
[4] |
SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5
|
CAS
3/8-16 X 3-1/2 C Superseded by part number: 88959
|
| 4. |
238-6023
|
[2] |
O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro
|
CAS
|
| 5. |
700707826
|
[2] |
REPAIR KIT
|
CAS
KIT - coil housing
|
| 6. |
700710176
|
[2] |
COIL
|
CAS
- solenoid
|
| 7. |
700707215
|
[1] |
SEAL KIT
|
IH
KIT - seal
|
| 8. |
700706611
|
[1] |
CARTRIDGE
|
CAS
|
| 9. |
700706610
|
[1] |
CARTRIDGE
|
L
|
| 10. |
700707843
|
[1] |
SEAL KIT
|
IH
KIT - seal
|
| 11. |
700706151
|
[2] |
NUT
|
CAS
Superseded by part number: 87033382
|
