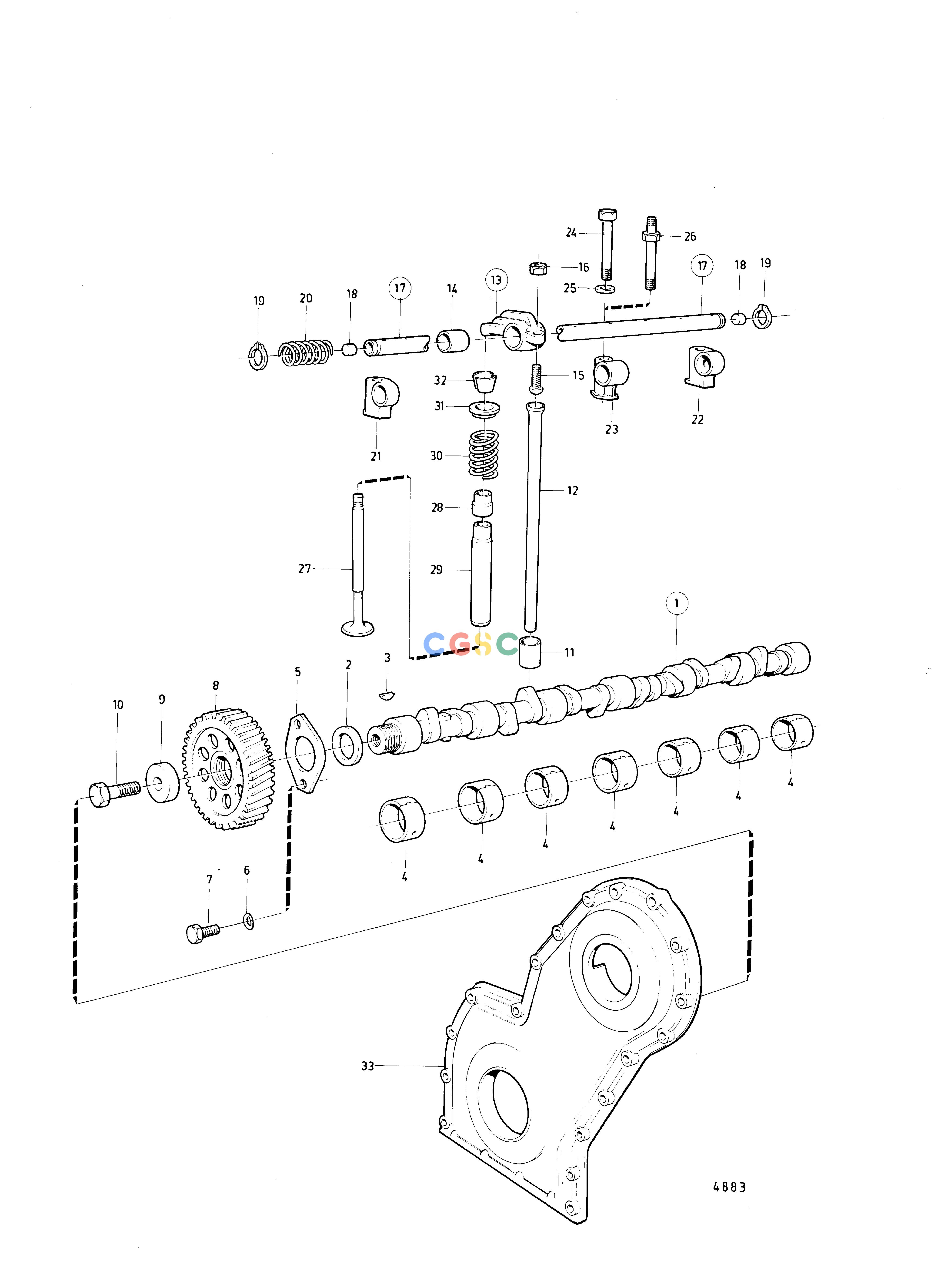

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BEngineCamshaft and Valve MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
913 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1542418
|
[1] |
Camshaft
|
|
| 2. |
1542221
|
[1] |
Spacer washer
|
|
| 3. |
910116
|
[1] |
Woodruff key
|
|
| 4. |
1542067
|
[7] |
Camshaft bushing
|
|
| 5. |
838992
|
[1] |
Thrust washer
|
(1542222)
|
| 6. |
941907
|
[2] |
Spring washer
|
|
| 7. |
955295
|
[2] |
Hexagon screw
|
|
| 8. |
1542034
|
[1] |
Gear
|
|
| 9. |
1542223
|
[1] |
Washer
|
|
| 10. |
955347
|
[1] |
Hexagon screw
|
MO-4406 L=65mm
|
| 10. |
955344
|
[1] |
Hexagon screw
|
MO4407- L=50mm
|
| 11. |
|
|
|
Repl by valve lifter 1542208 and push rod 1542207.
|
| 11. |
1542208
|
[12] |
Valve tappet
|
|
| 12. |
|
|
|
Repl by valve lifter 1542208 and push rod 1542207.
|
| 12. |
1542207
|
[12] |
Push rod
|
Replaced by 1545239., MO-26848
|
| 12. |
1545239
|
[12] |
Push rod
|
MO 26849-
|
| 13. |
418301
|
[6] |
Rocker arm
|
No. 1-3-5-7-9-11
|
| 13. |
418298
|
[6] |
Rocker arm
|
No. 2-4-6-8-10-12
|
| 14. |
418297
|
[12] |
Bushing
|
|
| 15. |
418286
|
[12] |
Ball stud
|
|
| 16. |
921781
|
[12] |
Hexagon nut
|
|
| 17. |
1542039
|
[1] |
Rocker arm shaft
|
|
| 18. |
955083
|
[2] |
Cap plug
|
|
| 19. |
914456
|
[2] |
Snap ring
|
|
| 20. |
411139
|
[5] |
Compression spring
|
|
| 21. |
1542041
|
[1] |
Bearing bracket
|
|
| 22. |
1542042
|
[1] |
Bearing bracket
|
|
| 23. |
1542043
|
[6] |
Bearing bracket
|
|
| 24. |
955304
|
[4] |
Hexagon screw
|
|
| 25. |
955894
|
[4] |
Washer
|
|
| 26. |
1542283
|
[4] |
Stud
|
|
| 27. |
1542472
|
[6] |
Inlet valve
|
(1542037)
|
| 27. |
1542389
|
[6] |
Exhaust valve
|
|
| 28. |
419702
|
[6] |
Valve seal
|
Repl by 1306630
|
| 28. |
1306630
|
[6] |
Valve stem seal
|
|
| 29. |
419653
|
[12] |
Valve guide
|
|
| 30. |
1545198
|
[12] |
Valve spring
|
|
| 31. |
460181
|
[12] |
Washer
|
|
| 32. |
419643
|
[24] |
Valve collet
|
|
| 33. |
7744060_010
|
|
timing gear casing and gears
|
|
| 33. |
|
|
|
|
