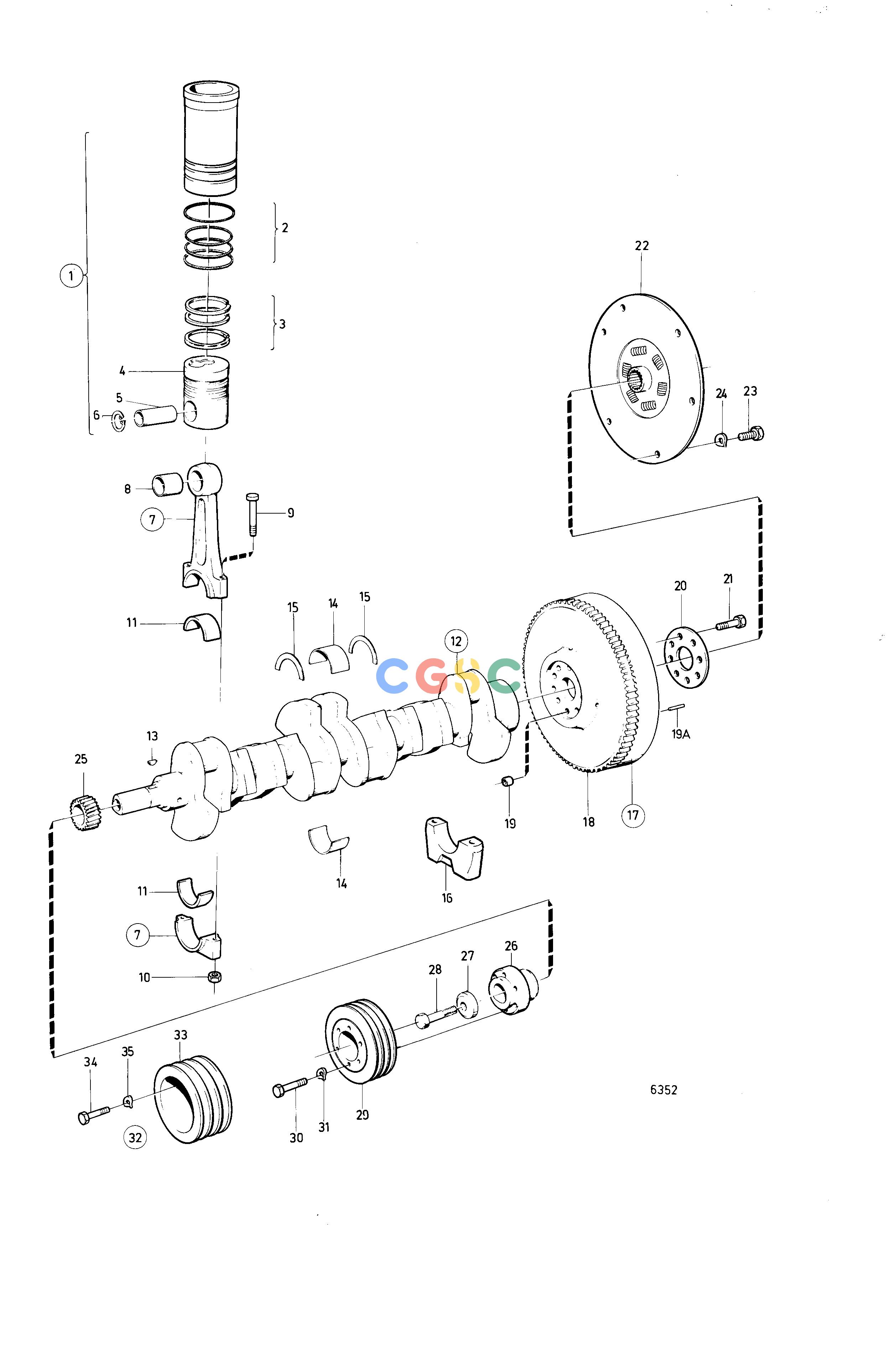

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BEngineCrankshaft and Related PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
463 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
875722
|
[6] |
Cylinder liner kit
|
|
| 2. |
875651
|
[6] |
Sealing ring kit
|
(275595)
|
| 3. |
275350
|
[6] |
Piston ring kit
|
(275326)
|
| 4. |
|
|
|
|
| 5. |
1542160
|
[6] |
Gudgeon pin
|
|
| 6. |
914519
|
[12] |
Snap ring
|
|
| 7. |
1542072
|
[6] |
Connecting rod
|
|
| 8. |
1542076
|
[6] |
Bushing
|
|
| 9. |
1542077
|
[12] |
Connecting rod bolt
|
|
| 10. |
1542078
|
[12] |
Nut
|
|
| 11. |
270111
|
[6] |
Big-end bearing kit
|
Std D, SN-2204141572
|
| 11. |
270112
|
[6] |
Big-end bearing kit
|
Over size 0,25 mm
|
| 11. |
270113
|
[6] |
Big-end bearing kit
|
Over size 0,50 mm
|
| 11. |
270114
|
[6] |
Big-end bearing kit
|
Over size 0,75 mm
|
| 11. |
876511
|
[6] |
Big-end bearing kit
|
Std D, SN2204141573-
|
| 11. |
876512
|
[6] |
Big-end bearing kit
|
Over size 0,25 mm
|
| 11. |
876513
|
[6] |
Big-end bearing kit
|
Over size 0,50 mm
|
| 11. |
876514
|
[6] |
Big-end bearing kit
|
Over size 0,75 mm
|
| 11. |
|
|
|
|
| 12. |
1542304
|
[1] |
Crankshaft, crankshaft crankshaft
|
Replaced by crankshaft-1545231 and 7PCS main sender kit -270467.
|
| 12. |
1545231
|
[1] |
Crankshaft
|
SN-2204141572
|
| 12. |
860379
|
[1] |
Crankshaft
|
SN2204141573-
|
| 13. |
910118
|
[1] |
Woodruff key
|
|
| 14. |
270460
|
[7] |
Main bearing kit
|
MO-28308., Std D
|
| 14. |
270467
|
[7] |
Main bearing kit
|
Std D, SN-2204141572
|
| 14. |
270468
|
[7] |
Main bearing kit
|
MO 28309-., Over size 0,25 mm
|
| 14. |
270462
|
[7] |
Main bearing kit
|
MO-28308., Over size 0,50 mm
|
| 14. |
270469
|
[7] |
Main bearing kit
|
MO 28309-., Over size 0,50 mm
|
| 14. |
270470
|
[7] |
Main bearing kit
|
MO 28309-., Over size 0,75 mm
|
| 14. |
876515
|
[7] |
Main bearing kit
|
Std D, SN2204141573-
|
| 14. |
876516
|
[7] |
Main bearing kit
|
Over size 0,25 mm
|
| 14. |
876517
|
[7] |
Main bearing kit
|
Over size 0,50 mm
|
| 14. |
876518
|
[7] |
Main bearing kit
|
Over size 0,75 mm
|
| 15. |
270464
|
[1] |
Thrust washer kit
|
Std D, SN-2204141572
|
| 15. |
270465
|
[1] |
Thrust washer kit
|
Over size 0,1mm
|
| 15. |
270466
|
[1] |
Thrust washer kit
|
Over size 0,2mm
|
| 15. |
876523
|
[1] |
Thrust washer
|
Std D, SN2204141573-
|
| 15. |
876524
|
[1] |
Thrust washer kit
|
Over size 0,25 mm
|
| 15. |
876525
|
[1] |
Thrust washer kit
|
Over size 0,50 mm
|
| 15. |
876526
|
[1] |
Thrust washer kit
|
Over size 0,75 mm
|
| 16. |
7744060_003
|
|
bearing cap
|
|
| 17. |
829460
|
[1] |
Flywheel
|
|
| 18. |
829462
|
[1] |
Ring gear
|
|
| 19. |
415311
|
[3] |
Guide sleeve
|
|
| 19A. |
191873
|
[3] |
Locating pin
|
|
| 20. |
1542093
|
[1] |
Bolt plate
|
|
| 21. |
1542471
|
[8] |
Hexagon screw
|
Repl by 1544147
|
| 22. |
841895
|
[1] |
Absorber
|
MO-35022
|
| 22. |
855389
|
[1] |
Absorber
|
(841895) MO35023-
|
| 22. |
841893
|
[1] |
Absorber
|
Alt (824991)
|
| 23. |
955295
|
[6] |
Hexagon screw
|
|
| 24. |
941907
|
[6] |
Spring washer
|
|
| 25. |
1542305
|
[1] |
Gear
|
|
| 26. |
1542196
|
[1] |
Hub
|
(1542228)
|
| 27. |
420124
|
[1] |
Washer
|
|
| 28. |
1542149
|
[1] |
Hexagon screw
|
|
| 29. |
1542315
|
[1] |
Pulley
|
|
| 30. |
955299
|
[6] |
Hexagon screw
|
|
| 31. |
941907
|
[6] |
Spring washer
|
|
| 32. |
843314
|
[1] |
Pulley
|
|
| 33. |
842710
|
[1] |
Pulley
|
|
| 34. |
955301
|
[6] |
Hexagon screw
|
|
| 35. |
941907
|
[6] |
Spring washer
|
|
