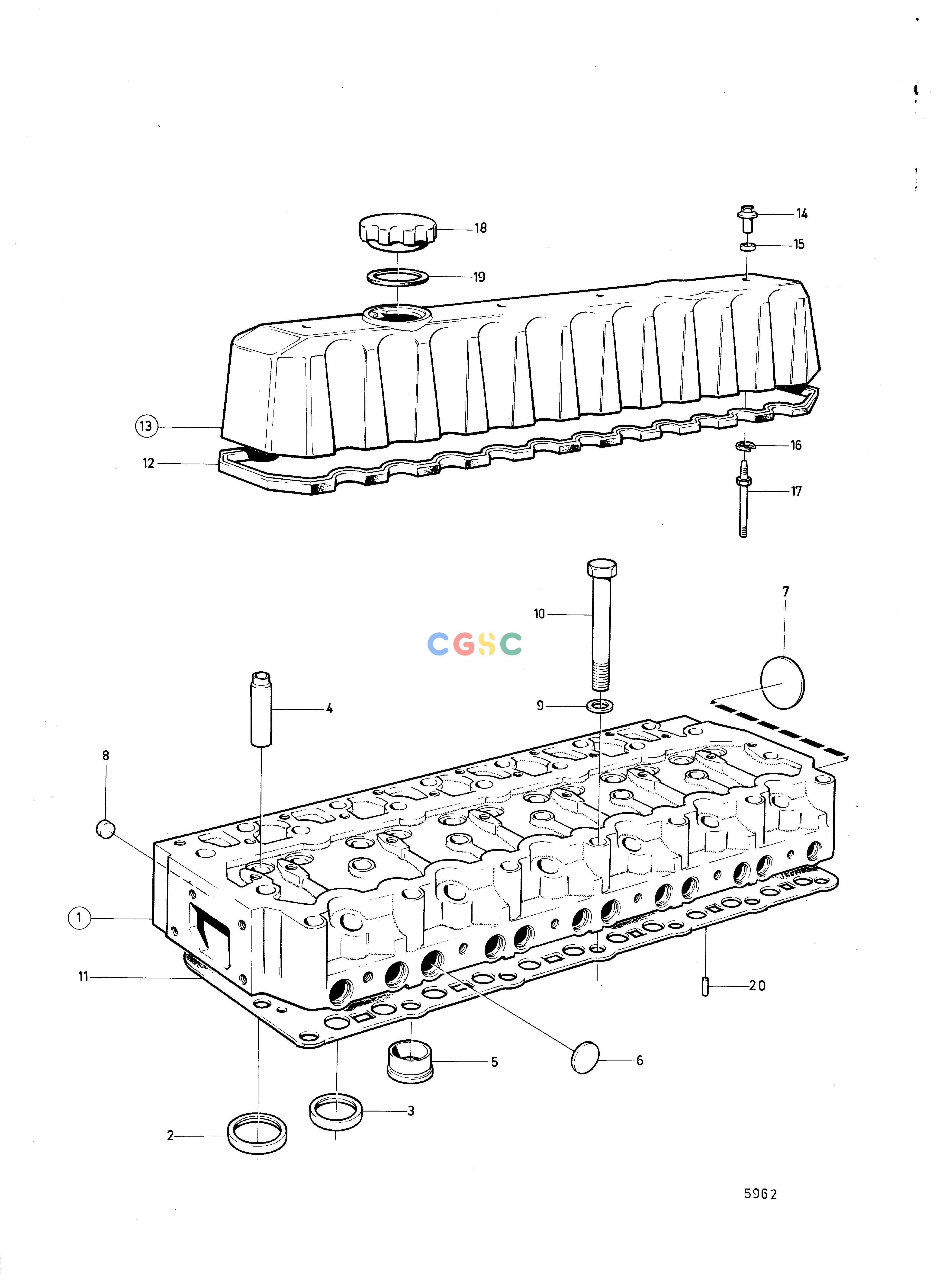

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803009
|
[1] |
Cylinder head
|
Including valves., (1545287)
|
| 1. |
|
|
|
(858996)
|
| 2. |
1545174
|
[6] |
Valve seat, intake
|
Std D (1542409)
|
| 2. |
1542403
|
[6] |
Valve seat, intake
|
Over size 0,20mm
|
| 2. |
|
|
|
Repl by 1545175
|
| 2. |
1545175
|
[6] |
Valve seat, intake
|
Over size 0,20mm
|
| 3. |
1545177
|
[6] |
Valve seat, exhaust
|
(1542410) std d
|
| 3. |
1545178
|
[6] |
Valve seat, exhaust
|
Over size 0,20mm (154240
|
| 4. |
419653
|
[12] |
Valve guide
|
|
| 5. |
1542140
|
[6] |
Precombustion chambe
|
|
| 6. |
192426
|
[18] |
Expansion plug
|
|
| 7. |
1542264
|
[1] |
Expansion plug
|
|
| 8. |
967853
|
[6] |
Cap plug
|
(955081)
|
| 9. |
1542316
|
[27] |
Washer
|
Screw-1542144 and lever-1542316 are replaced by flange- screw-838775.
|
| 10. |
1542019
|
[27] |
Hexagon screw
|
MO-32069
|
| 10. |
1542144
|
[27] |
Screw
|
Screw-1542144 and lever-1542316 are replaced by flange- screw-838775., MO32070-
|
| 10. |
838775
|
[27] |
Flange screw
|
|
| 11. |
859155
|
[1] |
Cylinder head gasket
|
(858503)
|
| 12. |
1542287
|
[1] |
Gasket
|
|
| 13. |
1542285
|
[1] |
Cover
|
(1542284)
|
| 14. |
1542286
|
[4] |
Cap nut
|
|
| 15. |
469846
|
[4] |
Sealing ring
|
(424342)
|
| 16. |
914449
|
[4] |
Snap ring
|
|
| 17. |
1542283
|
[4] |
Stud
|
|
| 18. |
420292
|
[1] |
Oil filler cap
|
|
| 19. |
940096
|
[1] |
Gasket
|
|
| 20. |
946402
|
[2] |
Grooved pin
|
|
