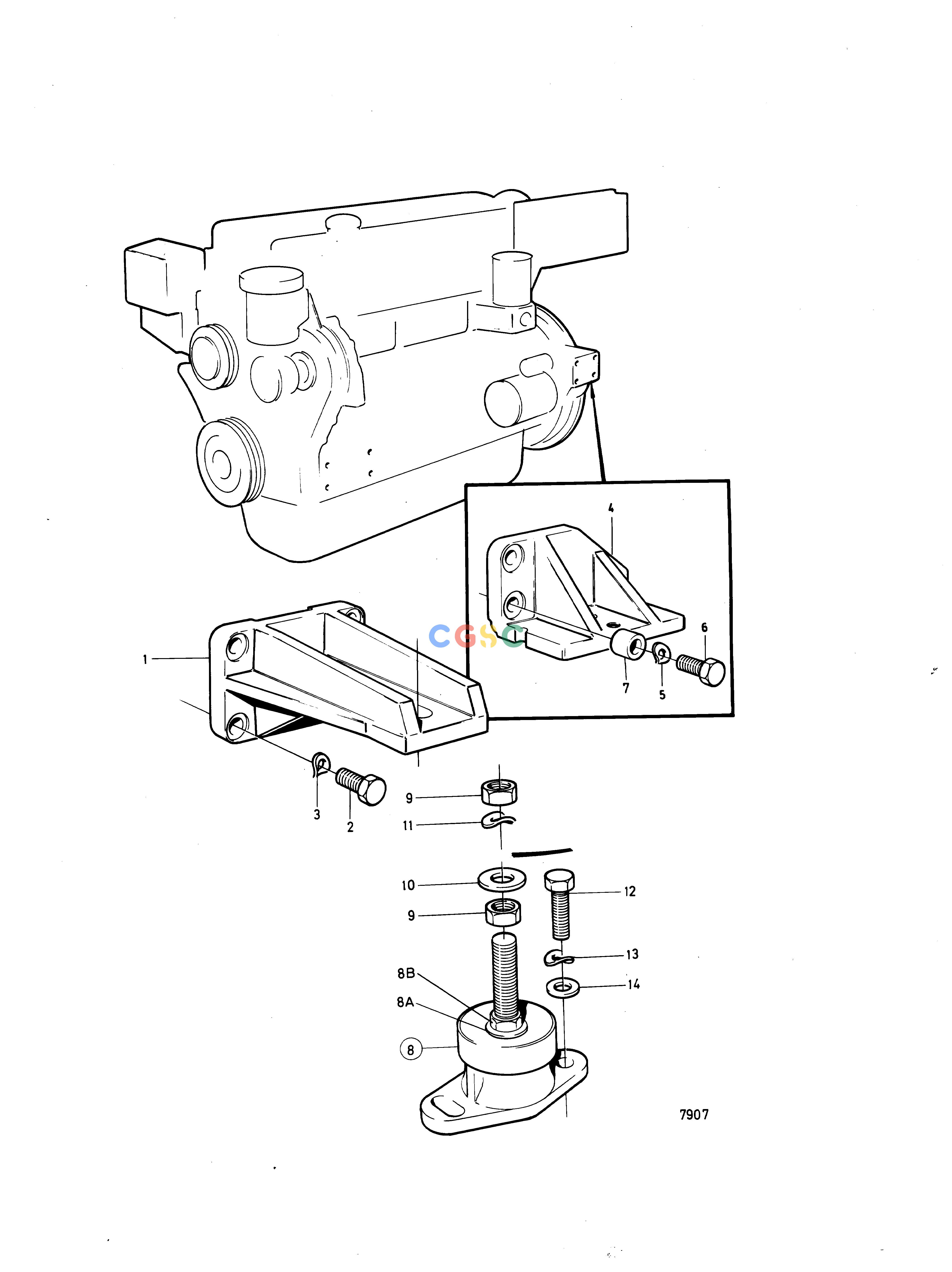

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BEngineEngine SuspensionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
512 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829517
|
[2] |
Engine bracket
|
|
| 2. |
955342
|
[8] |
Hexagon screw
|
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 4. |
829515
|
[1] |
Engine bracket
|
P
|
| 4. |
829516
|
[1] |
Engine bracket
|
S.B
|
| 5. |
940143
|
[6] |
Toothed washer
|
|
| 6. |
955341
|
[1] |
Hexagon screw
|
L=35mm, alt
|
| 6. |
955342
|
[1] |
Hexagon screw
|
L=40mm, alt
|
| 7. |
843122
|
[1] |
Spacer sleeve
|
S.B
|
| 8. |
829976
|
[4] |
Rubber element
|
|
| 8A. |
955900
|
[4] |
Washer
|
|
| 8B. |
829567
|
[4] |
Adjusting bolt
|
|
| 9. |
955805
|
[8] |
Hexagon nut
|
|
| 10. |
191940
|
[6] |
Washer
|
Late type
|
| 10. |
955900
|
[2] |
Washer
|
Late type
|
| 11. |
829892
|
[16] |
Lock washer
|
Early type
|
| 12. |
959242
|
[8] |
Hex. socket screw
|
Early type
|
| 13. |
941908
|
[8] |
Spring washer
|
|
| 14. |
960148
|
[8] |
Washer
|
|
