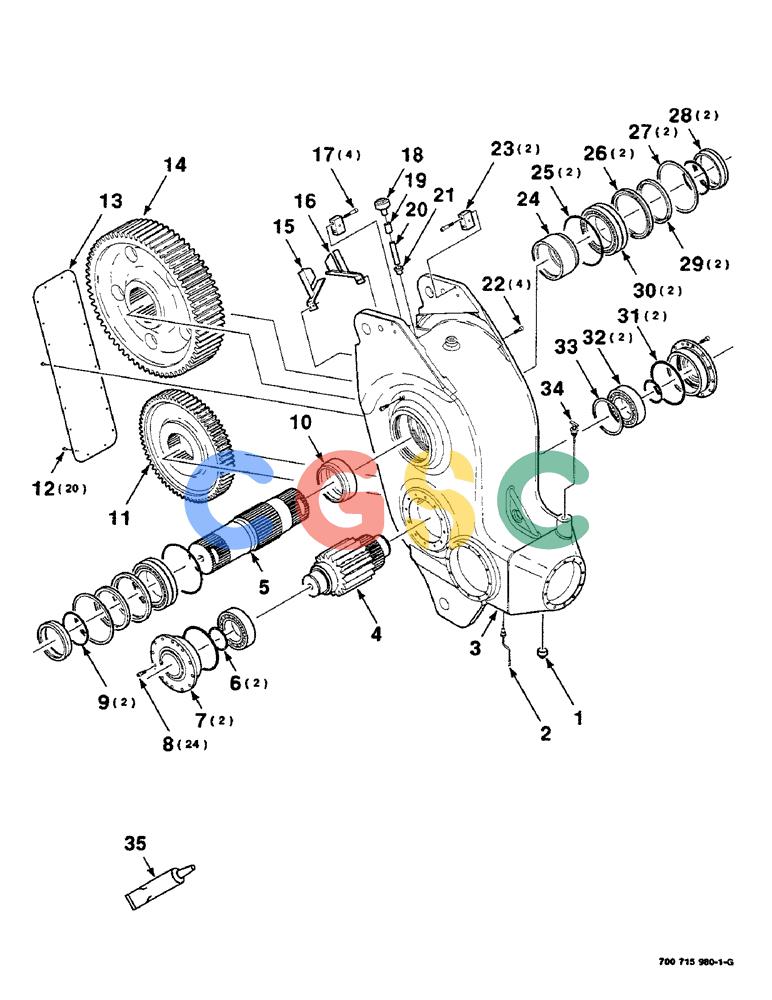

700715980
|
[1] |
GEARBOX
|
CAS
ASSEMBLY COMPLETE Superseded by part number: 700716952, 700722210
|
| 1. |
217-532
|
[1] |
DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF
|
CAS
PLUG, DRAIN, , Pipe Sq Hd, 1 1/4"-11 1/2 NPTF
|
| 2. |
700716952
|
[1] |
THERMOSTAT
|
CAS
ASSEMBLY
|
| 3. |
700715981
|
[1] |
HOUSING
|
CAS
- main
|
| 4. |
700706091
|
[1] |
GEAR
|
CAS
SHAFT - spur
|
| 5. |
700112989
|
[1] |
SHAFT
|
CAS
- output
|
| 6. |
8052136
|
[2] |
RING, SNAP
|
CAS
RING - retaining
|
| 7. |
700715984
|
[2] |
FLANGE COVER CAP
|
CAS
BEARING - carrier, cap
|
| 8. |
863-12035
|
[24] |
HEX SOC SCREW,M12 x 35mm, Cl 12.9
|
SUM
M12 X 1.75 X 35 HSHCS SPL
|
| 9. |
238-5257
|
[2] |
O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro
|
CAS
Superseded by part number: 87016956
|
| 10. |
700715988
|
[1] |
SPACER
|
CAS
|
| 11. |
700706090
|
[1] |
GEAR
|
CAS
- spur
|
| 12. |
614-8016
|
[20] |
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
CAS
C Hex, M8 x 16, 8.8 Superseded by part number: 16043224
|
| 13. |
700715986
|
[1] |
COVER PLATE
|
CAS
COVER - housing, main
|
| 14. |
700706092
|
[1] |
GEAR
|
CAS
- spur, output
|
| 15. |
700112992
|
[1] |
SCRAPER BLADE
|
CAS
SCRAPER
|
| 16. |
700112991
|
[1] |
SCRAPER BLADE
|
CAS
SCRAPER
|
| 17. |
861-12060
|
[4] |
HEX SOC SCREW,M12 x 60mm, Cl 12.9
|
SUM
M12 X 1.75 X 60 HSHCS SPL Superseded by part number: 1355168
|
| 18. |
8799280
|
[1] |
FILTER
|
CAS
|
| 19. |
746354
|
[1] |
COUPLING
|
CAS
- pipe Superseded by part number: IH140813
|
| 20. |
746313
|
[1] |
NIPPLE, LUBE
|
CAS
NIPPLE - pipe, 1/2 x 4 NPT
|
| 21. |
217-1031
|
[1] |
REDUCER,3/4" - 14 NPT x 1/2" - 14 NPT
|
CAS
BUSHING - reducing
|
| 22. |
861-10030
|
[4] |
HEX SOC SCREW,M10 x 30mm, Cl 12.9
|
SUM
SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9 Superseded by part number: 87016471
|
| 23. |
700716685
|
[2] |
BAR
|
CAS
TENSIONER
|
| 24. |
700715989
|
[1] |
SPACER
|
CAS
|
| 25. |
238-5270
|
[2] |
O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro
|
CAS
Superseded by part number: 86625104
|
| 26. |
700112993
|
[2] |
SEAL
|
CAS
- carrier, output
|
| 27. |
700708037
|
[2] |
SNAP RING
|
CAS
RING - retaining
|
| 28. |
700112988
|
[2] |
SPACER
|
CAS
|
| 29. |
700708000
|
[2] |
SEAL
|
CAS
- lip, output
|
| 30. |
700706041
|
[2] |
SPHERICAL BEARING,150 mm ID x 225 mm OD x 56 mm
|
CAS
BEARING - spherical
|
| 31. |
700720023
|
[2] |
O-RING
|
CAS
|
| 32. |
S97820
|
[2] |
SPHERICAL BEARING,100mm ID x 180mm OD x 46mm W
|
CAS
BEARING - spherical
|
| 33. |
7052020
|
[1] |
RING
|
CAS
- retaining
|
| 34. |
700706144
|
[1] |
DIPSTICK
|
CAS
GAUGE - oil
|
| 35. |
700707823
|
[1] |
SEALANT
|
CAS
- 10.3 Oz tube Superseded by part number: MC37464
|
