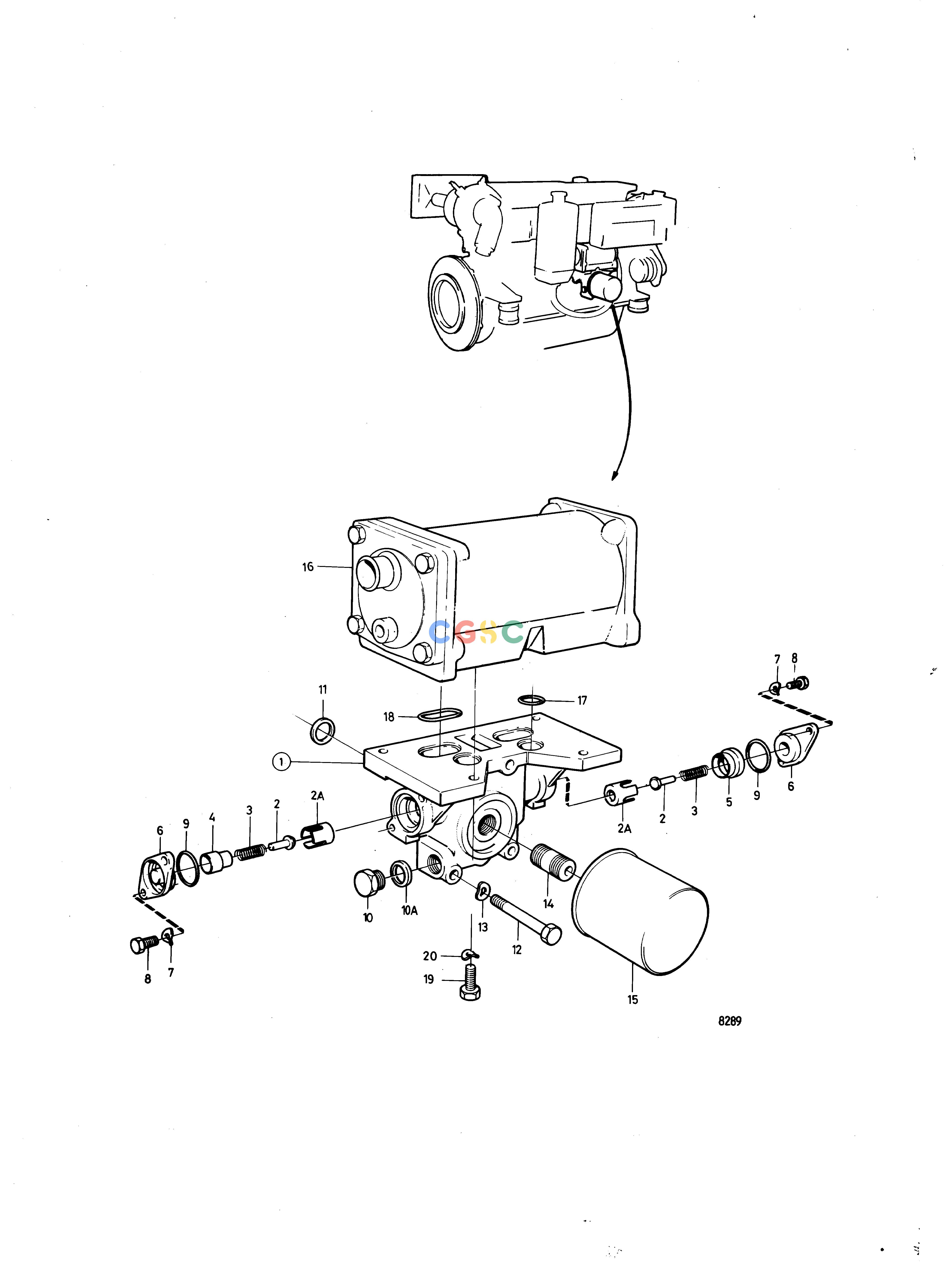

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BEngineOil Filter and Installation Components: 858245EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858245
|
[1] |
Oil filter housing
|
(842584) MO20711-
|
| 2. |
471085
|
[2] |
Valve cone
|
|
| 2A. |
1542265
|
[2] |
Valve seat
|
|
| 3. |
468087
|
[2] |
Spring
|
|
| 4. |
1542268
|
[1] |
Sleeve
|
|
| 5. |
1542266
|
[1] |
Sleeve
|
|
| 6. |
1542267
|
[2] |
Cover
|
|
| 8. |
946544
|
[4] |
Flange screw
|
|
| 9. |
925065
|
[2] |
O-ring
|
|
| 10. |
952077
|
[1] |
Plug
|
|
| 11. |
469483
|
[4] |
Sealing ring
|
(422581)
|
| 12. |
955306
|
[3] |
Hexagon screw
|
|
| 13. |
941907
|
[3] |
Spring washer
|
|
| 14. |
423067
|
[1] |
Nipple
|
|
| 15. |
471034
|
[1] |
Oil filter
|
|
| 16. |
842589
|
[1] |
Oil cooler
|
MO-41831
|
| 16. |
838968
|
[1] |
Oil cooler
|
(842589) MO41832-
|
| 16. |
845349
|
[1] |
Oil cooler
|
Spec 867560 867561 867562 867563 867564 867565., MO-39857
|
| 16. |
838969
|
[1] |
Oil cooler
|
(845349) MO39858-
|
| 17. |
469483
|
[2] |
Sealing ring
|
(422581)
|
| 18. |
842586
|
[2] |
Sealing ring
|
|
| 19. |
940142
|
[3] |
Hexagon screw
|
|
| 20. |
941907
|
[3] |
Spring washer
|
|
