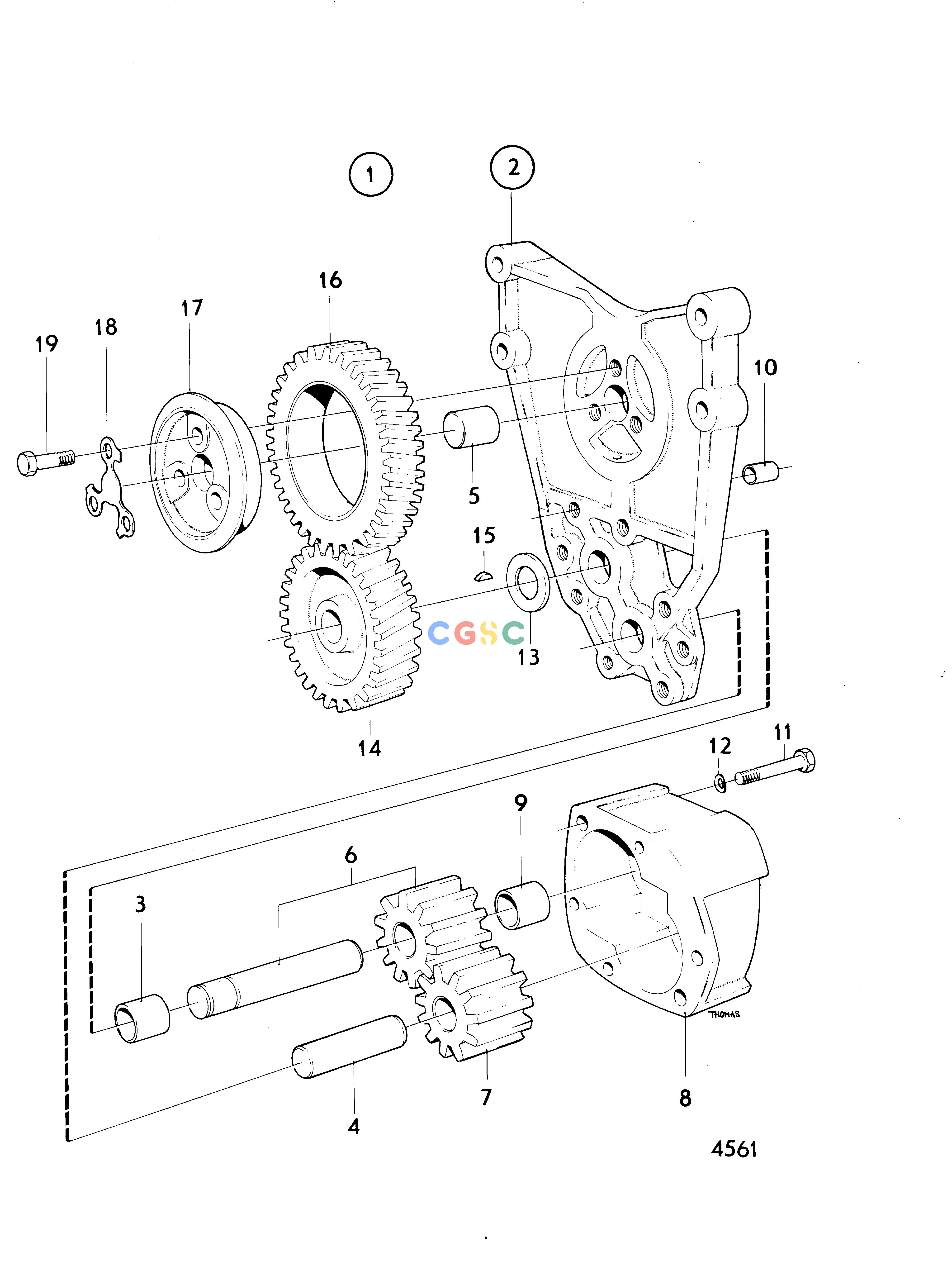

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BEngineOil PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
960 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1542210
|
[1] |
Oil pump
|
|
| 2. |
1542211
|
[1] |
Bracket
|
|
| 3. |
470234
|
[1] |
Bushing
|
MO 32828-
|
| 4. |
420043
|
[1] |
Pivot pin
|
|
| 5. |
950614
|
[1] |
Pin
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
470234
|
[1] |
Bushing
|
MO 32828-
|
| 10. |
401146
|
[2] |
Guide sleeve
|
|
| 11. |
955300
|
[2] |
Hexagon screw
|
Early type
|
| 11. |
965179
|
[2] |
Flange screw
|
Late type
|
| 12. |
941907
|
[2] |
Spring washer
|
Early type
|
| 13. |
424133
|
[1] |
Washer
|
|
| 14. |
1542214
|
[1] |
Gear
|
|
| 15. |
910115
|
[1] |
Woodruff key
|
|
| 16. |
1542215
|
[1] |
Oil pump wheel
|
|
| 17. |
1542218
|
[1] |
Bearing sleeve
|
|
| 18. |
1542199
|
[1] |
Lock washer
|
Early type
|
| 19. |
940132
|
[3] |
Hexagon screw
|
Early type
|
| 19. |
946470
|
[3] |
Flange screw
|
Late type
|
| 19. |
276166
|
[1] |
Oil pump kit
|
|
