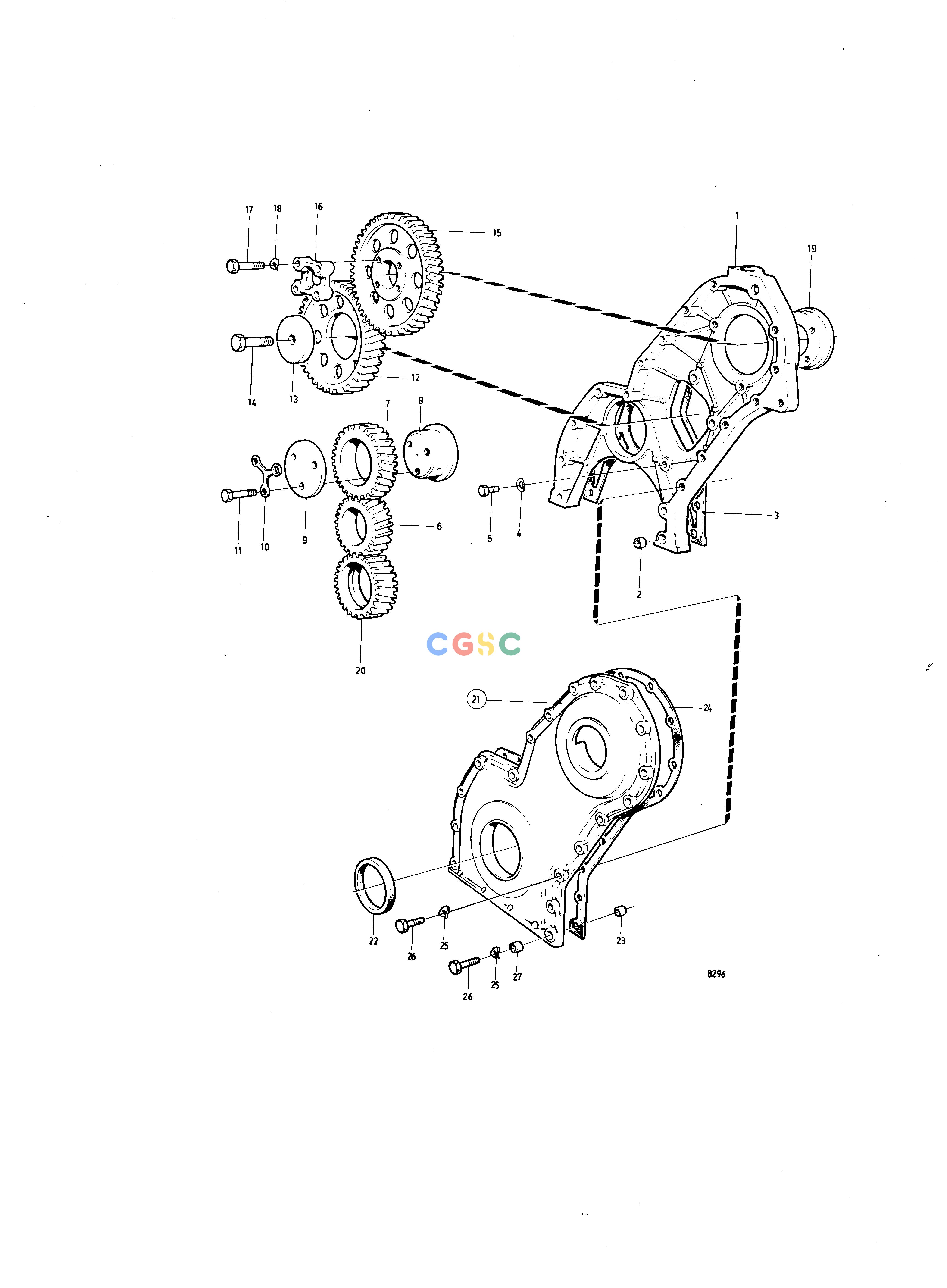

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BEngineTiming Gear Casing and GearsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
842988
|
[1] |
Timing gear casing
|
|
| 2. |
415311
|
[1] |
Guide sleeve
|
|
| 3. |
1542219
|
[1] |
Gasket
|
|
| 4. |
941907
|
[4] |
Spring washer
|
|
| 5. |
955295
|
[3] |
Hexagon screw
|
L=20mm
|
| 5. |
940142
|
[1] |
Hexagon screw
|
L=30mm
|
| 6. |
1542305
|
[1] |
Gear
|
|
| 7. |
1542061
|
[1] |
Gear
|
|
| 8. |
838997
|
[1] |
Bearing spindle
|
(1542064)
|
| 9. |
1542065
|
[1] |
Thrust washer
|
|
| 10. |
421076
|
[1] |
Lock washer
|
Early type
|
| 11. |
955302
|
[3] |
Hexagon screw
|
Early type
|
| 11. |
965180
|
[3] |
Flange screw
|
Late type
|
| 12. |
1542034
|
[1] |
Gear
|
|
| 13. |
1542223
|
[1] |
Washer
|
|
| 14. |
7744060_008
|
|
bolt
|
|
| 15. |
1544149
|
[1] |
Gear
|
|
| 16. |
829523
|
[1] |
Companion flange
|
|
| 16. |
845194
|
[1] |
Companion flange
|
Spec 867560 867561 867562 867563 867564 867565.
|
| 17. |
955298
|
[4] |
Hexagon screw
|
|
| 18. |
941907
|
[4] |
Spring washer
|
|
| 19. |
1542171
|
[1] |
Hub
|
See group 2C
|
| 20. |
1542215
|
[1] |
Oil pump wheel
|
|
| 21. |
843086
|
[1] |
Cover
|
Replaced by 842991
|
| 21. |
842991
|
[1] |
Cover
|
|
| 22. |
1542318
|
[1] |
Sealing ring
|
|
| 23. |
415311
|
[2] |
Guide sleeve
|
|
| 24. |
859038
|
[1] |
Gasket
|
|
| 25. |
941907
|
[13] |
Spring washer
|
|
| 26. |
955300
|
[1] |
Hexagon screw
|
L=50mm
|
| 26. |
955304
|
[5] |
Hexagon screw
|
L=70mm
|
| 26. |
955306
|
[2] |
Hexagon screw
|
L=80mm, see group 3
|
| 26. |
940132
|
[5] |
Hexagon screw
|
L=35mm
|
| 26. |
955307
|
[2] |
Hexagon screw
|
L=100mm, see group 3
|
| 26. |
955299
|
[1] |
Hexagon screw
|
L=45mm
|
| 26. |
955268
|
[1] |
Hexagon screw
|
|
| 27. |
842350
|
[1] |
Spacer sleeve
|
See group 2B
|
