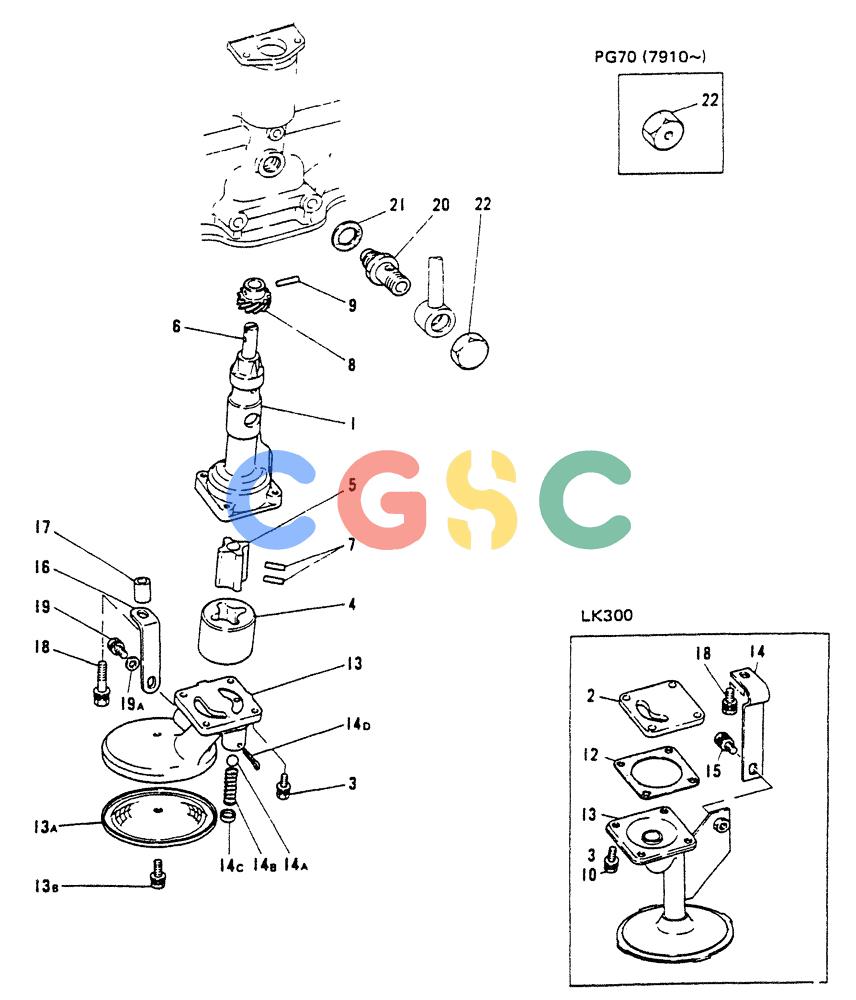

| 1-16. | VAME008131 | [1] | ENGINE OIL PUMP | KOBOIL PUMP ASSY, (FOR M2 ONLY), (SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES), Start Serial: 8001- |
| 1-9. | VA3173590101 | [1] | FF: SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCASE, OIL PUMP, (31735— 10300) |
| 2. | VA3173590400 | [1] | COVER, OIL PUMP, (FOR M2 ONLY), (SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES) | |
| 3. | VAMF244826 | [4] | BOLT W/WASHER 6X20 (FOR M0, M1 ONLY) | |
| 3. | VAMF241227 | [4] | BOLT | KOBBOLT W/WASHER 6X20, (FOR M2 ONLY), Start Serial: 8001- |
| 4-7. | VA3173510090 | [1] | SHAFT | KOBOIL PUMP SHAFT ASSY |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONROTOR, OUTER, (31735-11400) |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONROTOR, INNER, (31735-11100) |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT OIL PUMP, (31735-11200) |
| 7. | NSS | [2] | NOT SOLD SEPARAT | CONPIN, (31735-11300) |
| 8. | VA3133503100 | [1] | GEAR,PUMP DRIVE GEAR, PUMP DRIVE | GEAR,PUMP DRIVE GEAR, PUMP DRIVE |
| 9. | VA3133503200 | [1] | PIN | |
| 10. | VAMF240029 | [4] | SCREW | KOBBOLT W/W WASHER 6X25, (FOR M2 ONLY), Serial Range: --7912 |
| 12. | VA3173692400 | [1] | GASKET GASKET, (FOR M2 ONLY),(SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES) | GASKET GASKET, (FOR M2 ONLY),(SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES) |
| 13-14D. | VA3173511020 | [1] | OIL STRAINER ASSY, (FOR M0, M1 ONLY) | |
| 13. | VA3173610201 | [1] | STRAINER, OIL (FOR M0, M1 ONLY) | |
| 13. | VA3173697012 | [1] | STRAINER, OIL, (FOR M2 ONLY), (SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES) | |
| 13A. | VA3173611400 | [1] | PLATE PLATE, OIL STRAINER, (FOR M0, M1 ONLY) | PLATE PLATE, OIL STRAINER, (FOR M0, M1 ONLY) |
| 13B. | VAMF244851 | [1] | BOLT W/WASHER 8X20, (FOR M0, M1 ONLY) | |
| 14. | VA3143616200 | [1] | STAY, (FOR M2 ONLY), (SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES) | |
| 14A. | VAMF540014 | [1] | BALL BALL, STEEL, (FOR M0, M1 ONLY) | BALL BALL, STEEL, (FOR M0, M1 ONLY) |
| 14B. | VAME034013 | [1] | SPRING | KOBSPRING, RELIEF VALVE, (FOR M0, M1 ONLY) |
| 14C. | VAME034014 | [1] | SEAT SEAT SPRING, (FOR M0, M1 ONLY) | SEAT SEAT SPRING, (FOR M0, M1 ONLY) |
| 14D. | VAMF472085 | [1] | PIN | KOBPIN, SPRIT 4X30, (FOR M0, M1 ONLY) |
| 15. | VAMF244850 | [1] | BOLT W/WASHER 8X 18, (FOR M2 ONLY) | |
| 16. | VA3173611600 | [1] | STAY, (FOR M0, M1 ONLY) | |
| 17. | VA3173611900 | [1] | SPACER 2=22.5, (FOR M0, M1 ONLY) | |
| 18. | VAMF244859 | [1] | BOLT, W/WASHER 8X40, (FOR M0, M1 ONLY) | |
| 18. | VAMF244850 | [1] | BOLT, W/WASHER 8X18, (FOR M2 ONLY) | |
| 19. | VAMF241252 | [1] | BOLT | KOBBOLT W/WASHER 8X18, (FOR M0, M1 ONLY), (FOR M0, M1 ONLY) |
| 19A. | VAMH005006 | [1] | WASHER | KOBWASHER, PLAIN 8, (FOR M0, M1 ONLY) Superseded by part number: VAMH005027 |
| 20. | VAMH037233 | [1] | BOLT BOLT JOINT | BOLT BOLT JOINT |
| 21. | VAMF660068 | [1] | PACKING | KOBGASKET 20, Start Serial: 7906~ Superseded by part number: VAF420220000 |
| 21. | VA3133514300 | [1] | GASKET 20 | |
| 22. | VA3133514600 | [1] | NUT CAP, (FOR M0, M2 ONLY) | |
| 22. | VAME008105 | [1] | NUT CAP, (FOR M1 ONLY), Start Serial: 7910- | |
