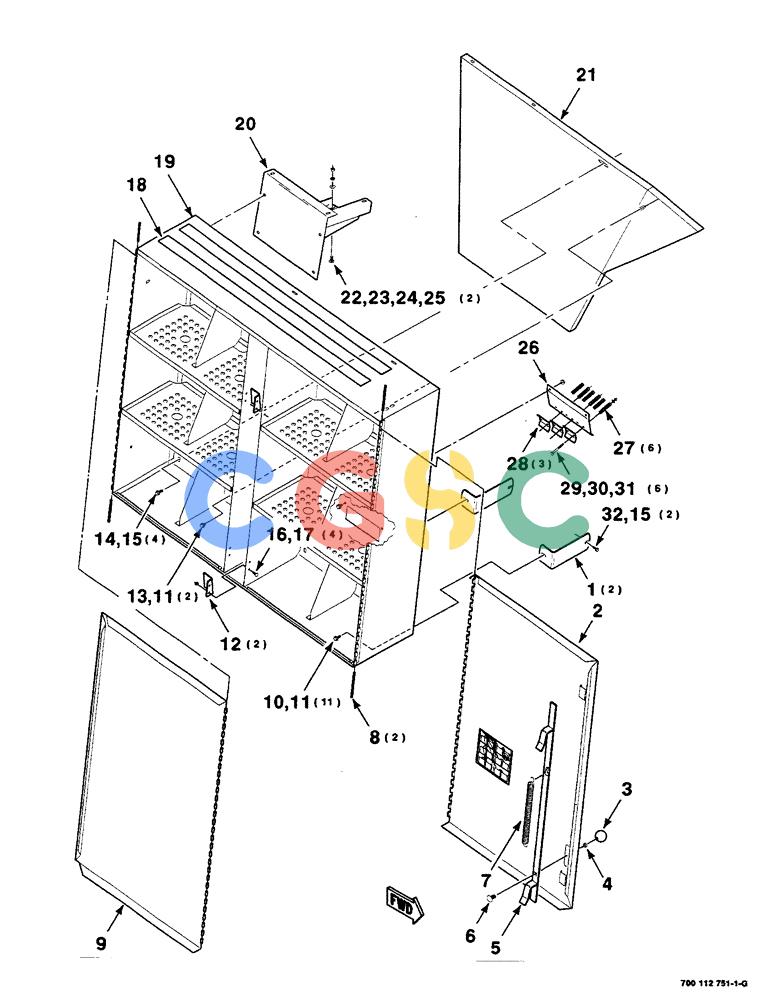

| 1. |
6844682
|
[2] |
BRACKET
|
CAS
- left
|
| 2. |
700100052
|
[1] |
DOOR
|
CAS
ASSEMBLY - twine, box (Includes Decals)
|
| 3. |
A23885
|
[1] |
KNOB
|
CAS
- control
|
| 4. |
6270854
|
[1] |
SPACER
|
CAS
|
| 5. |
6844633
|
[1] |
SECURING STRAP,74mm L
|
CAS
WA
|
| 6. |
433-816
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
1/2-13 X 1 RHSNB Superseded by part number: 280486
|
| 7. |
58941
|
[1] |
SPRING
|
CAS
- extension
|
| 8. |
700122881
|
[2] |
PIN
|
CAS
- hinge
|
| 9. |
700100051
|
[1] |
DOOR
|
CAS
ASSEMBLY
|
| 10. |
121-115
|
[11] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 11. |
231-5145
|
[13] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 12. |
6844674
|
[2] |
CATCH
|
CAS
|
| 13. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 14. |
409-7616
|
[4] |
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
|
CAS
Superseded by part number: 9706726
|
| 15. |
231-5146
|
[6] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 16. |
412-48
|
[4] |
CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2
|
CAS
1/4-20 X 1/2 RHSNB Superseded by part number: 280700
|
| 17. |
231-5144
|
[4] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 18. |
6849178
|
[1] |
WALL
|
CAS
TAPE - safety walk (10 Foot Bulk)
|
| 19. |
700133651
|
[1] |
TERMINAL BOX
|
CAS
TWINE WA - box, right (Includes Safety Tread)
|
| 20. |
700114038
|
[1] |
SUPPORT
|
CAS
WA - right
|
| 21. |
700114049
|
[1] |
BOX
|
CAS
SHIELD WA - right
|
| 22. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 23. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 24. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 25. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 26. |
702400047
|
[1] |
PLATE
|
HFI
|
| 27. |
700707677
|
[6] |
SPRING
|
L
|
| 28. |
6488431
|
[3] |
CLIP
|
CAS
PLATE
|
| 29. |
26144R1
|
[6] |
BOLT
|
IH
1/4-20 X 2-1/4 RHSNB Superseded by part number: 280498
|
| 30. |
496-11028
|
[6] |
WASHER,9/32" x 5/8" x .065, HDN
|
CAS
1/4 HARDENED PLAIN WASHER Superseded by part number: 86632587
|
| 31. |
231-1444
|
[6] |
NUT,1/4"-20, GB
|
CAS
NUT, LOCK, 1/4"-20, GB Superseded by part number: 86625061
|
| 32. |
121-226
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
