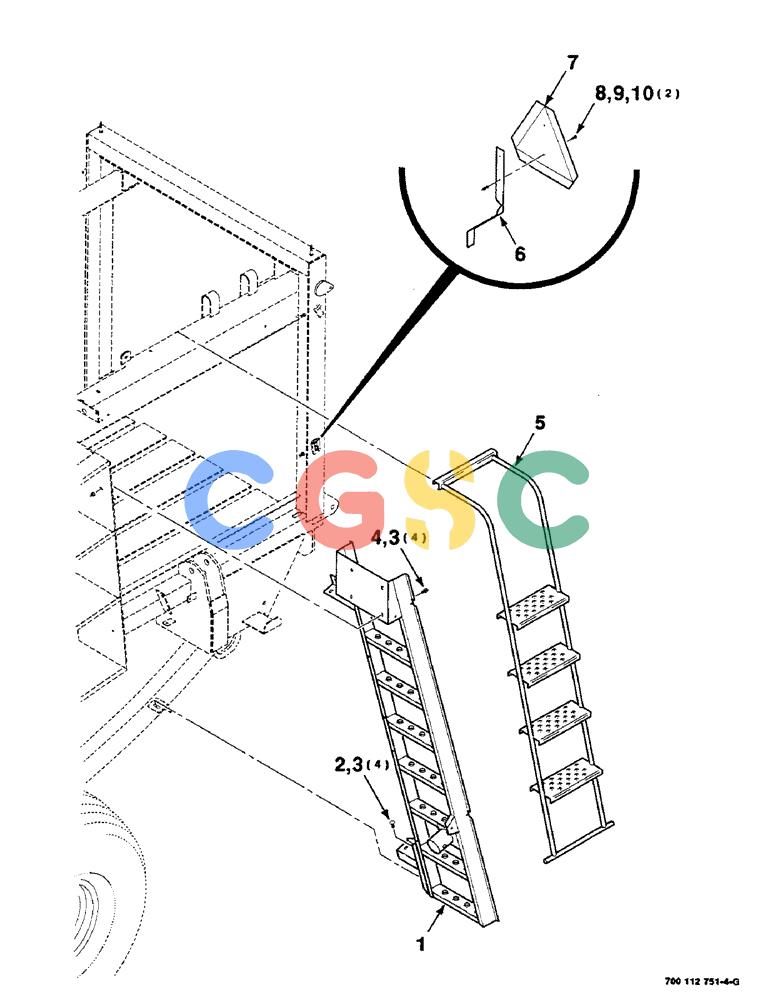

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (07-20) - LADDER AND SMV ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
439 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700114028
|
[1] |
LADDER
|
HFI
WA Superseded by part number: 700133669
|
| 2. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 3. |
231-5146
|
[8] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 4. |
409-7612
|
[4] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 5. |
700114060
|
[1] |
LADDER
|
CAS
WA
|
| 6. |
6564645
|
[1] |
BRACKET
|
CAS
|
| 7. |
7020589
|
[1] |
EMBLEM
|
CAS
SMV EMBLEM Superseded by part number: 86547710
|
| 8. |
440-11012
|
[2] |
SCREW,Cross Pan Hd, #10-24 x 3/4"
|
CAS
#10-24 X 3/4 CRPHMS GR60M Superseded by part number: 72187239, 86511922
|
| 9. |
492-11010
|
[2] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 10. |
225-14110
|
[2] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
