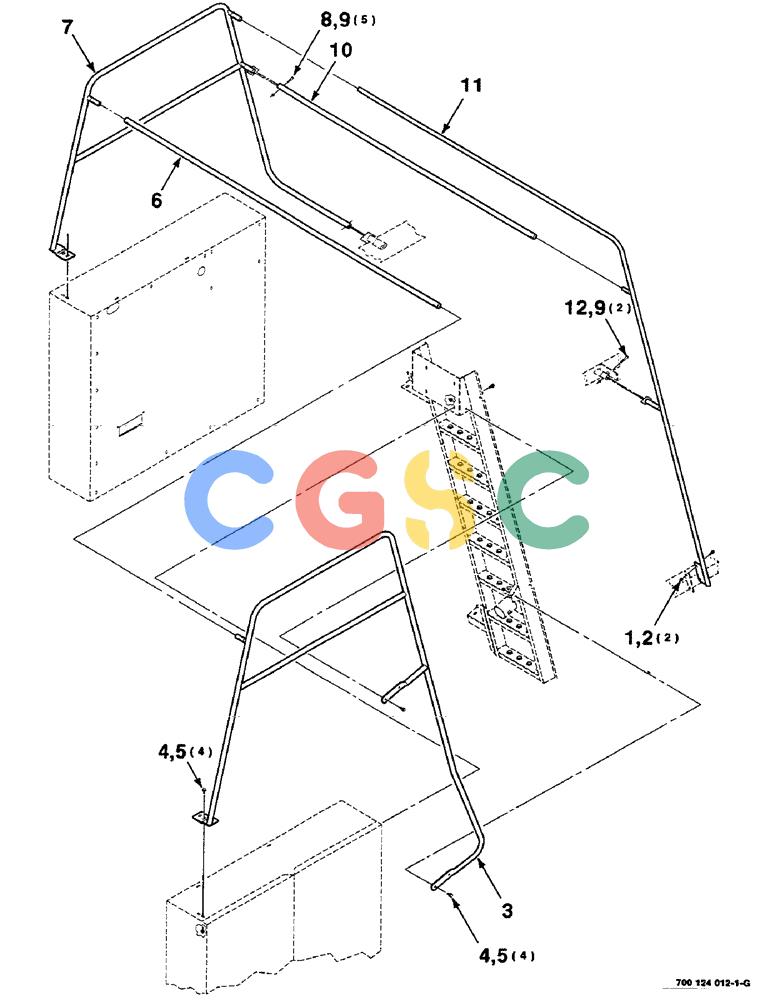

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (07-22) - HAND RAIL ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
125 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
231-5145
|
[2] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 2. |
409-7516
|
[2] |
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
|
CAS
Superseded by part number: 86512168
|
| 3. |
6564702
|
[1] |
RAIL ASSY.
|
HFI
RAIL WA - left
|
| 4. |
409-7612
|
[8] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HFSS Superseded by part number: 72187187, 255918
|
| 5. |
231-5146
|
[8] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 6. |
6564819
|
[1] |
CROSSBAR
|
CAS
- front
|
| 7. |
6564769
|
[1] |
RAIL
|
CAS
WA - right
|
| 8. |
413-524
|
[5] |
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
|
IH
Superseded by part number: 88275, 72187199
|
| 9. |
230-4115
|
[7] |
LOCK NUT,5/16"-18, GA
|
CAS
5/16-18 HTLN GR/B Superseded by part number: 230-4145
|
| 10. |
6564827
|
[1] |
CROSS
|
CAS
BAR - rear
|
| 11. |
6564785
|
[1] |
X
|
HFI
RAIL WA - right
|
| 12. |
413-532
|
[2] |
BOLT,Hex, 5/16" - 18 x 2", Gr 5
|
CAS
Superseded by part number: 9636711
|
