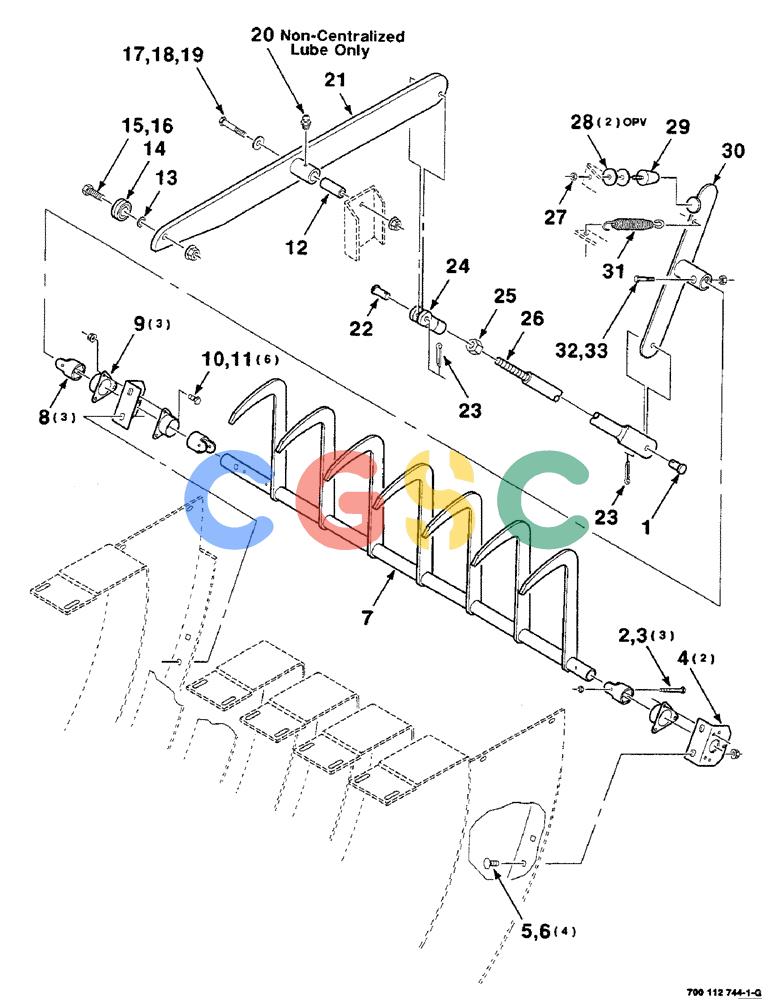

| 1. |
427-8136
|
[1] |
CLEVIS PIN,1/2" x 1.360"
|
CAS
1/2 X 1-1/4 CLEVIS PIN Superseded by part number: 86636813
|
| 2. |
413-432
|
[3] |
BOLT,Hex, 1/4" - 20 x 2", Gr 5
|
IH
Superseded by part number: 72187193, 87404
|
| 3. |
232-4114
|
[3] |
LOCK NUT,1/4"-20, GC
|
CAS
1/4-20 HTLN GR B Superseded by part number: 280129
|
| 4. |
6845507
|
[2] |
BRACKET
|
CAS
|
| 5. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 6. |
329-286
|
[4] |
FLANGE NUT,Flg, 3/8"-16, G8
|
CAS
|
| 7. |
700122691
|
[1] |
FINGER
|
CAS
WA
|
| 8. |
6105159
|
[3] |
NYLON BEARING,1.75"
|
IH
BEARING - tine
|
| 9. |
6105621
|
[3] |
FLANGE
|
CAS
HOUSING - bearing
|
| 10. |
413-512
|
[6] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
C Hex, 5/16"-18 x 3/4", G5, Full Thd Superseded by part number: 72187196, 87872
|
| 11. |
232-5315
|
[6] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 12. |
R37265
|
[1] |
SPACER
|
CAS
- bushing
|
| 13. |
52233
|
[1] |
BUSHING
|
CAS
5/8 X 14 GAUGE NRMB Superseded by part number: 51200381
|
| 14. |
667925R91
|
[1] |
ROLLER BEARING,0.628" ID x 2" OD x 15 mm
|
IH
Superseded by part number: 47577176
|
| 15. |
413-1028
|
[1] |
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5
|
CAS
5/8-11 X 1-3/4 C Superseded by part number: 9627896
|
| 16. |
232-53110
|
[1] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
5/8-11 HFTLN GR/G Superseded by part number: 84180923
|
| 17. |
413-848
|
[1] |
BOLT,Hex, 1/2" - 13 x 3", Gr 5
|
IH
1/2-13 X 3 C Superseded by part number: 72187218, 87339
|
| 18. |
495-21056
|
[1] |
WASHER,1/2"
|
CAS
1/2 WIDE PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 19. |
231-5348
|
[1] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 20. |
219-1
|
[1] |
LUBE NIPPLE,1/8" - 27 NPTF
|
CAS
1/8-27 ZERK Superseded by part number: 80710
|
| 21. |
700112833
|
[1] |
LEVER
|
CAS
WA
|
| 22. |
427-8150
|
[1] |
CLEVIS PIN,1/2" x 1 1/2"
|
CAS
1/2X1.500 1.281 HD/HOLE CLEVIS ZND
|
| 23. |
432-816
|
[2] |
COTTER PIN,1/8" x 1"
|
CAS
1/8" x 1" Superseded by part number: 80755
|
| 24. |
066183
|
[1] |
CLEVIS
|
IH
1/2-13 CLEVIS Superseded by part number: 70937465
|
| 25. |
425-108
|
[1] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 26. |
6845630
|
[1] |
CONNECTING ROD
|
HFI
ROD WA - connecting
|
| 27. |
230-4715
|
[1] |
LOCK NUT,5/16"-24, GA
|
CAS
NUT, LOCK, 5/16"-24, GA
|
| 28. |
700710049
|
[2] |
WASHER
|
CAS
- 3/8 fender, P
|
| 29. |
827568
|
[1] |
BUMPER
|
CAS
- rubber
|
| 30. |
700123488
|
[1] |
ARM
|
CAS
WA
|
| 31. |
700714987
|
[1] |
SPRING
|
CAS
- extension
|
| 32. |
700706548
|
[1] |
HEX SOC SCREW
|
CAS
1/2-13 X 2-1/4 HSHCS SPL
|
| 33. |
230-4118
|
[1] |
LOCK NUT,1/2"-13, GA
|
CAS
1/2-13 HTLN GR/B
|
