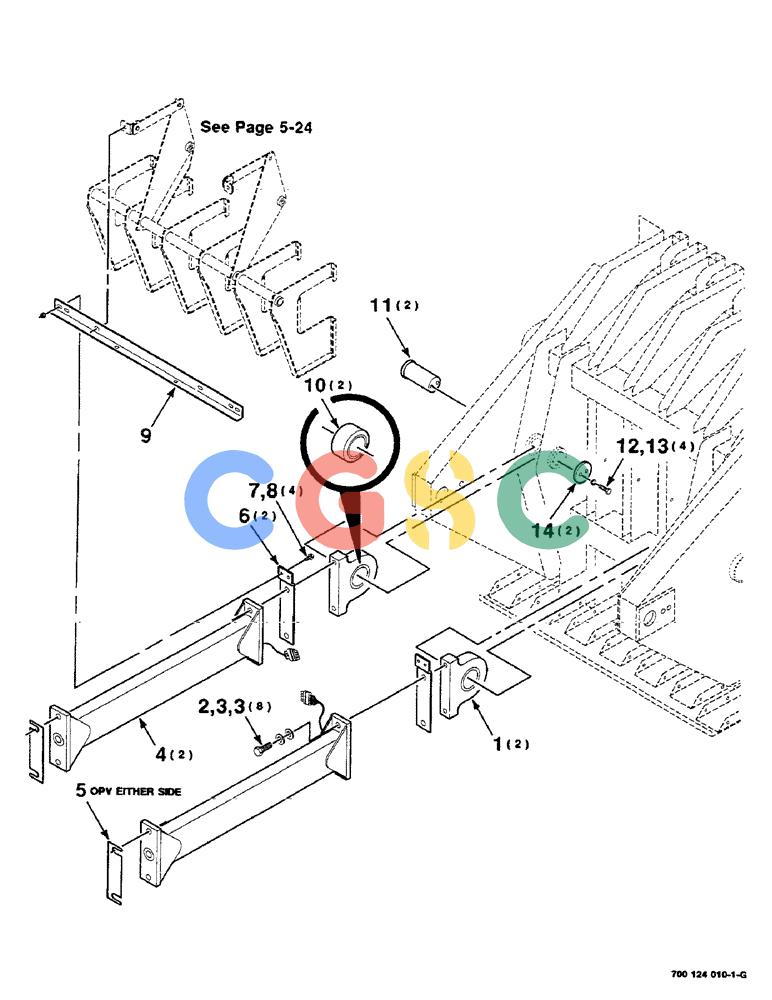

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (05-20) - PLUNGER CONNECTING ROD ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
403 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700113172
|
[2] |
BEARING ASSY,57.15mm ID
|
CAS
BEARING ASSEMBLY (Includes Item 10)
|
| 2. |
700706419
|
[8] |
SCREW
|
CAS
3/4-10 X 2 C GR8 NP Superseded by part number: 70922743
|
| 3. |
705566
|
[16] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 4. |
700129480
|
[2] |
ARM
|
CAS
ROD ASSEMBLY Superseded by part number: 700137258
|
| 5. |
6565675
|
[1] |
SHIM
|
CAS
|
| 6. |
700113660
|
[2] |
COVER PLATE
|
CAS
PLATE - plunger
|
| 7. |
409-7616
|
[4] |
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
|
CAS
Superseded by part number: 9706726
|
| 8. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 9. |
700113193
|
[1] |
ANGLE
|
CAS
|
| 10. |
700706120
|
[2] |
SPHERICAL BEARING,57.15 mm ID x 90.488 mm OD x 50.01 mm
|
CAS
BEARING - cylindrical Superseded by part number: 700723350
|
| 11. |
700121646
|
[2] |
SHAFT
|
CAS
|
| 12. |
413-824
|
[4] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 13. |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 14. |
700113192
|
[2] |
WASHER
|
CAS
PLATE
|
