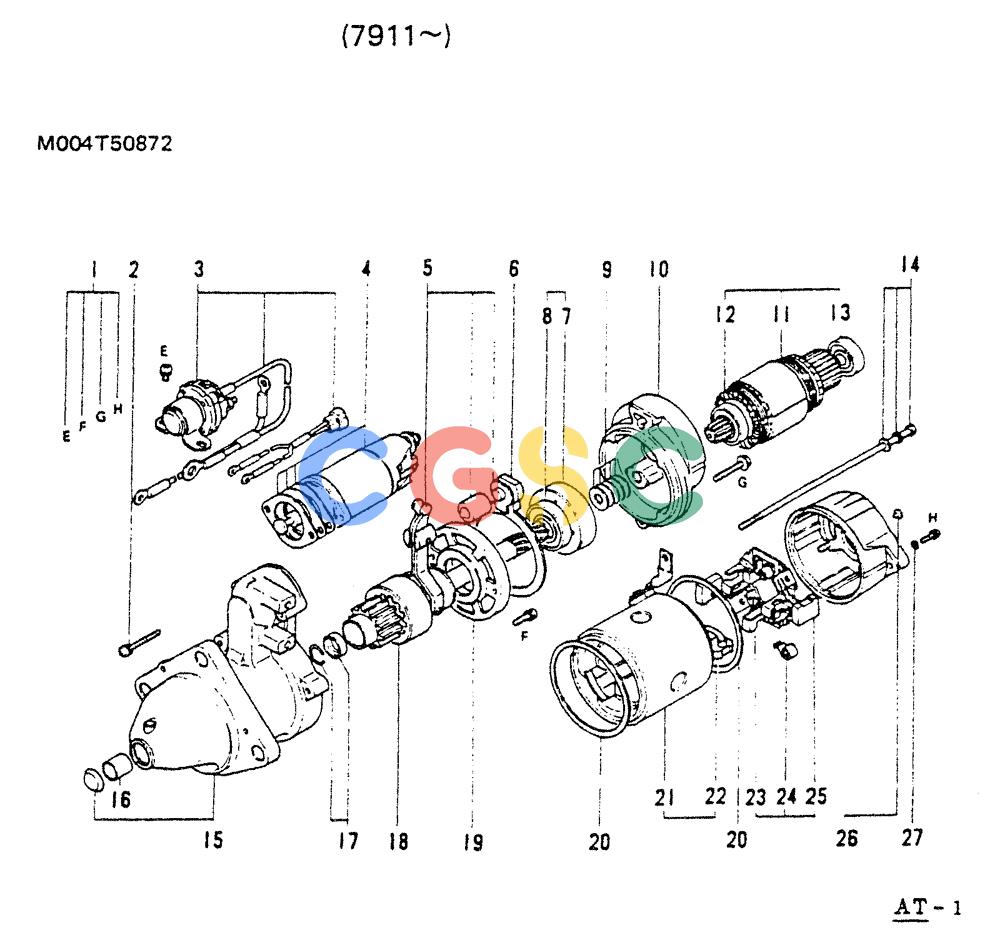

神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (08-002) - STARTER (7911-) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
462 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-27. | VAME951803 | [1] | STARTER MOTOR | KOBSTATER ASSY 24V-4.5KW Superseded by part number: VAME008815 |
| 1. | VAM414X03971 | [1] | SCREW SET (M.E.CNo.) | |
| 2. | VAS054S00561 | [2] | SCREW P | |
| 3. | VAU001T06078 | [1] | SWITCH | KOBSWITCH ASSY |
| 4. | VAM371X20271 | [1] | SOLENOID | KOBSWITCH ASSY |
| 5. | VAM863D04174 | [1] | LEVER ASSY | |
| 6. | VAM578C16901 | [1] | PACKING | |
| 7-8. | VAM357X60471 | [1] | GEAR SHAFT ASSY | |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, INTERAL |
| 8. | VAS930P10201 | [1] | BEARING | |
| 9. | VAM900X02071 | [1] | WASHER SET | |
| 10. | VAM646B21101 | [1] | BRACKET, CTR | |
| 11-13. | VAM106X27271 | [1] | ARMATURE | KOBARMATURE ASSY |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONARMATURE |
| 12. | VAS930P10101 | [1] | BEARING | |
| 13. | VAS930P28001 | [1] | BEARING | KOBBEARING |
| 14. | VAM981X73371 | [1] | BOLT SET | |
| 15-16. | VAM641X57171 | [1] | BRACKET ASSY FR | |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET FR |
| 16. | VAM410D11771 | [1] | SLEEVE BEARING BEARING, SLEEVE FR | SLEEVE BEARING BEARING, SLEEVE FR |
| 16. | VAM410S11701 | [1] | BEARING, SLEEVE FR | |
| 17. | VAM385X03071 | [1] | STOPPER SET | |
| 18. | VAM191T63272 | [1] | CLUTCH | KOBCLUTCH,OVER RUNNING |
| 19. | VAM646C70101 | [1] | BRACKET GEAR | |
| 20. | VAM578D17101 | [2] | PACKING | |
| 21-22. | VAM800X40477 | [1] | YOKE ASSY | |
| 21. | NSS | [1] | NOT SOLD SEPARAT | CONYOKE |
| 22. | VAM648C24971 | [2] | BRUSH | KOBBRUSH |
| 23-25. | VAM649T03671 | [1] | HOLDER, INJECTOR NOZ | KOBBRUSH HOLDER ASSY |
| 23. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER,BRUSH |
| 24. | VAM391C01801 | [4] | SPRING,BRUSH | |
| 25. | VAM648C24972 | [2] | BRUSH | KOBBRUSH |
| 26. | VAM644X20171 | [1] | BRACKET, RE. | |
| 27. | VAM816D00701 | [2] | SEAL RETAINER | KOBRING, RUBBER Superseded by part number: 135064A1 |
