神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (08-003) - STARTER (-7910) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
568 次

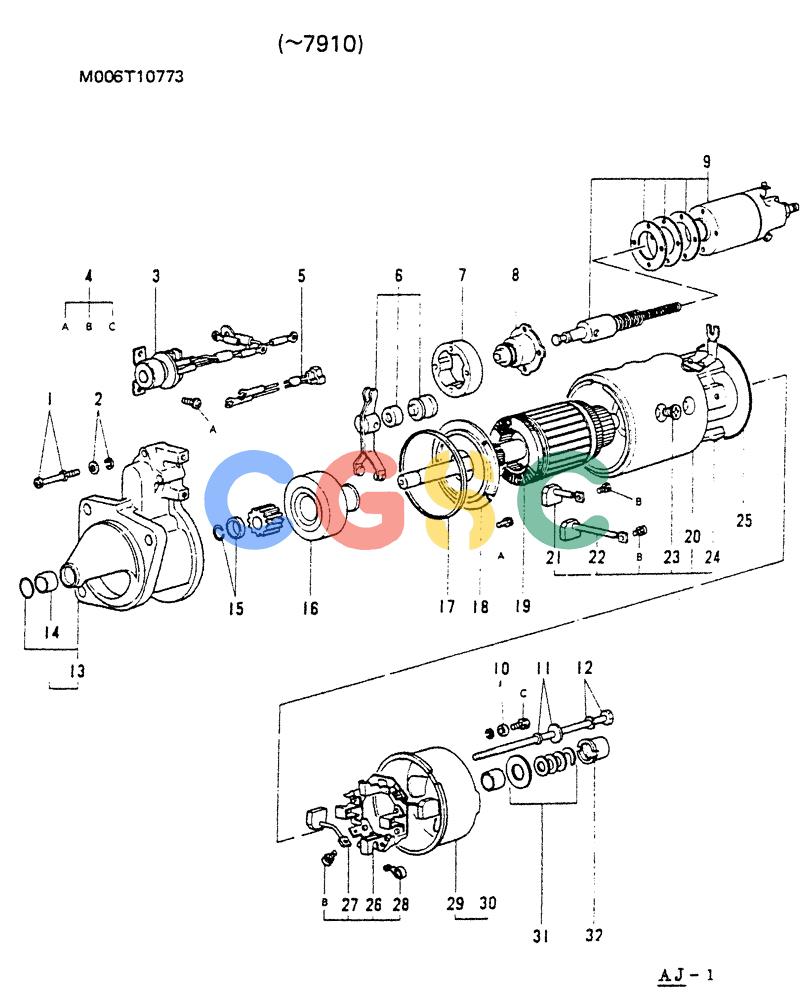

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-32. | 3176610060 | [1] | STARTER ASSY 24V-5KW | |
| 1. | VAM414X03071 | [1] | SET OF SCREWS | KOBSTARTER ASSY (M.E.CNo.) |
| 2. | VAM578X13573 | [1] | PACKING SET | |
| 3. | VAU001T04078 | [1] | SWITCH ASSY | |
| 4. | VAM414X02971 | [1] | SCREW SET | |
| 5. | VAM832D01371 | [1] | LEAD WIRE ASSY | |
| 6. | VAM863D03772 | [1] | LEVER ASSY | |
| 7. | VAM212X09271 | [1] | COVER | |
| 8. | VAM212X09272 | [1] | COVER COVER | COVER COVER |
| 9. | VAM373X00371 | [1] | SWITCH ASSY | |
| 9. | VAM373X00171 | [1] | SOLENOID SWITCH ASSY | SOLENOID SWITCH ASSY |
| 10. | VAM578X02472 | [1] | PACKING | |
| 11. | VAM578X14971 | [1] | PACKING | |
| 12. | VAM981X72371 | [1] | BOLT | |
| 13-14. | VAM641X52771 | [1] | BRACKET ASSY FR. | |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, FR. |
| 14. | VAM410D11771 | [1] | SLEEVE BEARING BEARING, SLEEVE, FR | SLEEVE BEARING BEARING, SLEEVE, FR |
| 14. | VAM410S11701 | [1] | BEARING, SLEEVE, FR | |
| 15. | VAM385X02871 | [1] | STOPPER | |
| 16. | VAM191T61471 | [1] | CLUTCH, OVER RUNNING | |
| 16. | VAM191T72071 | [1] | CLUTCH | KOBCLUTCH, OVER RUNNING |
| 17. | VAM578C14801 | [1] | PACKING | |
| 18. | VAM640C24971 | [1] | BRACKET CTR | |
| 19. | VAM106T26371 | [1] | ARMATURE | |
| 20-24. | VAM800X29378 | [1] | YOKE ASSY | |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONYOKE |
| 21. | VAM648D24571 | [1] | COMMUTATOR BRUSH | KOBBRUSH |
| 22. | VAM648D24671 | [1] | BRUSH BRUSH | BRUSH BRUSH |
| 23. | VAS061S00069 | [8] | SCREW 8x17 | |
| 24. | VAM300T26071 | [1] | COIL, FIELD | |
| 25. | VAM816D03901 | [1] | RING, RUBBER | |
| 26-28. | VAM649T08971 | [1] | BRUSH HOLDER ASSY | |
| 26. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER, BRUSH |
| 27. | VAM648D24871 | [2] | BRUSH BRUSH | BRUSH BRUSH |
| 28. | VAM391D01901 | [4] | SPRING, BRUSH | |
| 29-30. | VAM642B25071 | [1] | BRACKET ASSY RE | |
| 29. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, RE |
| 30. | VAM410D11771 | [1] | SLEEVE BEARING BEARING, SLEEVE | SLEEVE BEARING BEARING, SLEEVE |
| 30. | VAM410S11701 | [1] | BEARING, SLEEVE | |
| 31. | VAM900X01971 | [1] | WASHER SET | |
| 32. | VAM234D52701 | [1] | CAP | |
