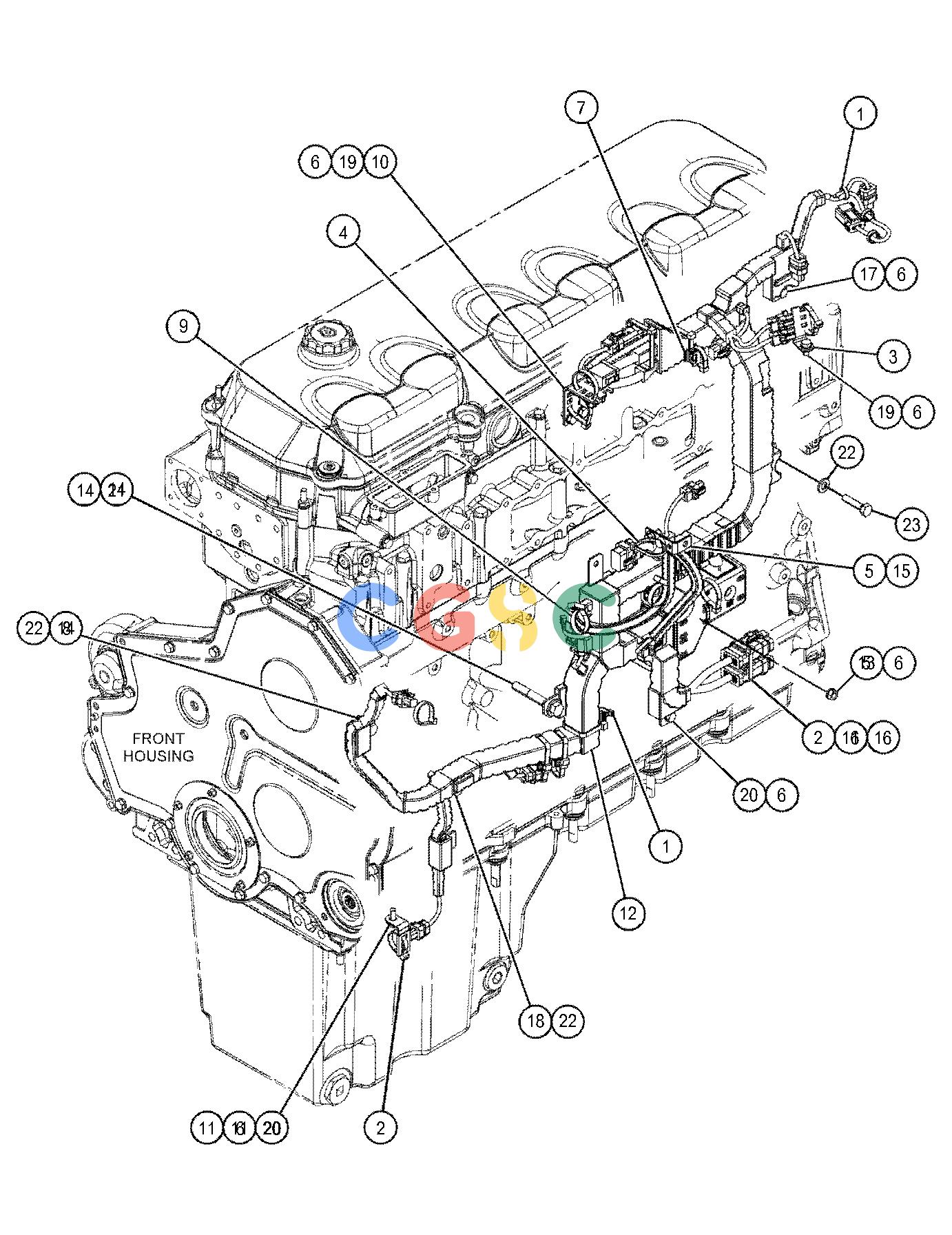

卡特零件查询（730） 380-6963: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
966 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [4] | STRAP-CABLE | |
| 2. | 7K-1181 | [15] | STRAP-CABLE | |
| 3. | 178-1781 | [1] | CLIP | |
| 4. | 206-1345 | [1] | STRAP-CABLE | |
| 5. | 229-8844 | [1] | CLIP | |
| 6. | 9M-1974 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 290-5562 | [4] | MOUNT(DUAL SWIVEL) | |
| 8. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 9. | 326-4514 | [2] | TIE-CABLE | |
| 10. | 347-3869 | [1] | CLIP | |
| 11. | 132-5789 | [2] | CLIP(LADDER) | |
| 12. | 428-7383CY | [1] | HARNESS AS-ENGINE | |
| 13. | 5P-7970M | [1] | NUT(M8X1.25-THD) | |
| 14. | 5P-8245 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 6I-3812M | [1] | BOLT(M8X1.25X16-MM) | |
| 16. | 8T-0642M | [1] | BOLT(M8X1.25X14-MM) | |
| 17. | 6V-2317M | [2] | BOLT(M8X1.25X30-MM) | |
| 18. | 6V-4249M | [1] | BOLT(M10X1.5X50-MM) | |
| 19. | 6V-5215M | [3] | BOLT(M8X1.25X16-MM) | |
| 20. | 6V-5217M | [4] | BOLT(M8X1.25X20-MM) | |
| 21. | 6V-5696M | [1] | BOLT(M12X1.75X80-MM) | |
| 22. | 6V-5839 | [3] | WASHER(11X21X2.5-MM THK) | |
| 23. | 6V-5842M | [1] | BOLT(M10X1.5X40-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
