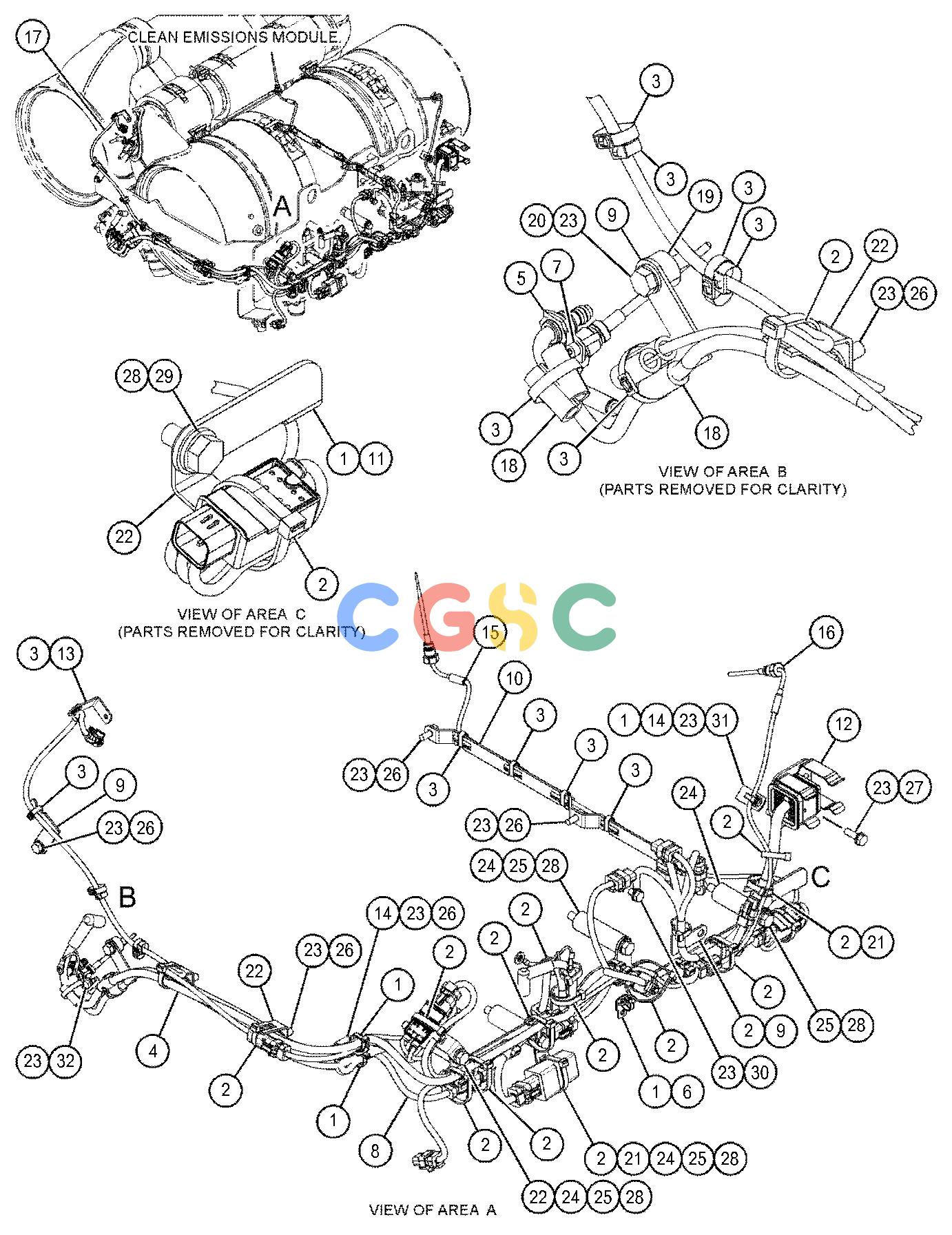

卡特零件查询（730） 434-1907: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
925 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [5] | STRAP-CABLE | |
| 2. | 7K-1181 | [19] | STRAP-CABLE | |
| 3. | 290-1993 | [13] | STRAP-CABLE | |
| 4. | 295-6244 | [1] | WIRE AS-IGNITION | |
| 5. | 315-0225 | [1] | CLAMP-WIRE | |
| 6. | 318-9355 | [1] | MOUNTING-CABLE TIE | |
| 7. | 162-2165M | [1] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| 8. | 352-4756Y | [1] | HARNESS AS-CEM(NOZZLE HEATER) | |
| 9. | 355-3322 | [3] | BRACKET | |
| 10. | 362-5228 | [1] | BRACKET | |
| 11. | 362-5229 | [1] | BRACKET | |
| 12. | 364-8334 | [1] | PLATE AS | |
| 13. | 370-4373 | [1] | CLIP | |
| 14. | 370-4374 | [2] | CLIP | |
| 15. | 373-5283 | [1] | SENSOR GP-TEMPERATURE | |
| 16. | 374-4768 | [1] | SENSOR GP-TEMPERATURE(DUAL SENSOR- DPF, FLAME DETECT) | |
| 17. | 377-0642Y | [1] | WIRING GP-CEM | |
| 18. | 488-2652 | [10] | SLEEVE | |
| 19. | 226-1388 | [1] | SPACER(9X20X10-MM THK) | |
| 20. | 8T-7547M | [1] | BOLT(M8X1.25X30-MM) | |
| 21. | 285-6393 | [2] | CLIP | |
| 22. | 285-6395 | [4] | CLIP(LADDER) | |
| 23. | 8T-4224 | [14] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 316-0488 | [4] | SPACER(11X25X78-MM THK) | |
| 25. | 8T-4198M | [4] | BOLT(M10X1.5X100-MM) | |
| 26. | 8T-4189M | [7] | BOLT(M8X1.25X20-MM) | |
| 27. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 28. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 29. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 30. | 8T-4199M | [1] | BOLT(M8X1.25X12-MM) | |
| 31. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 32. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
