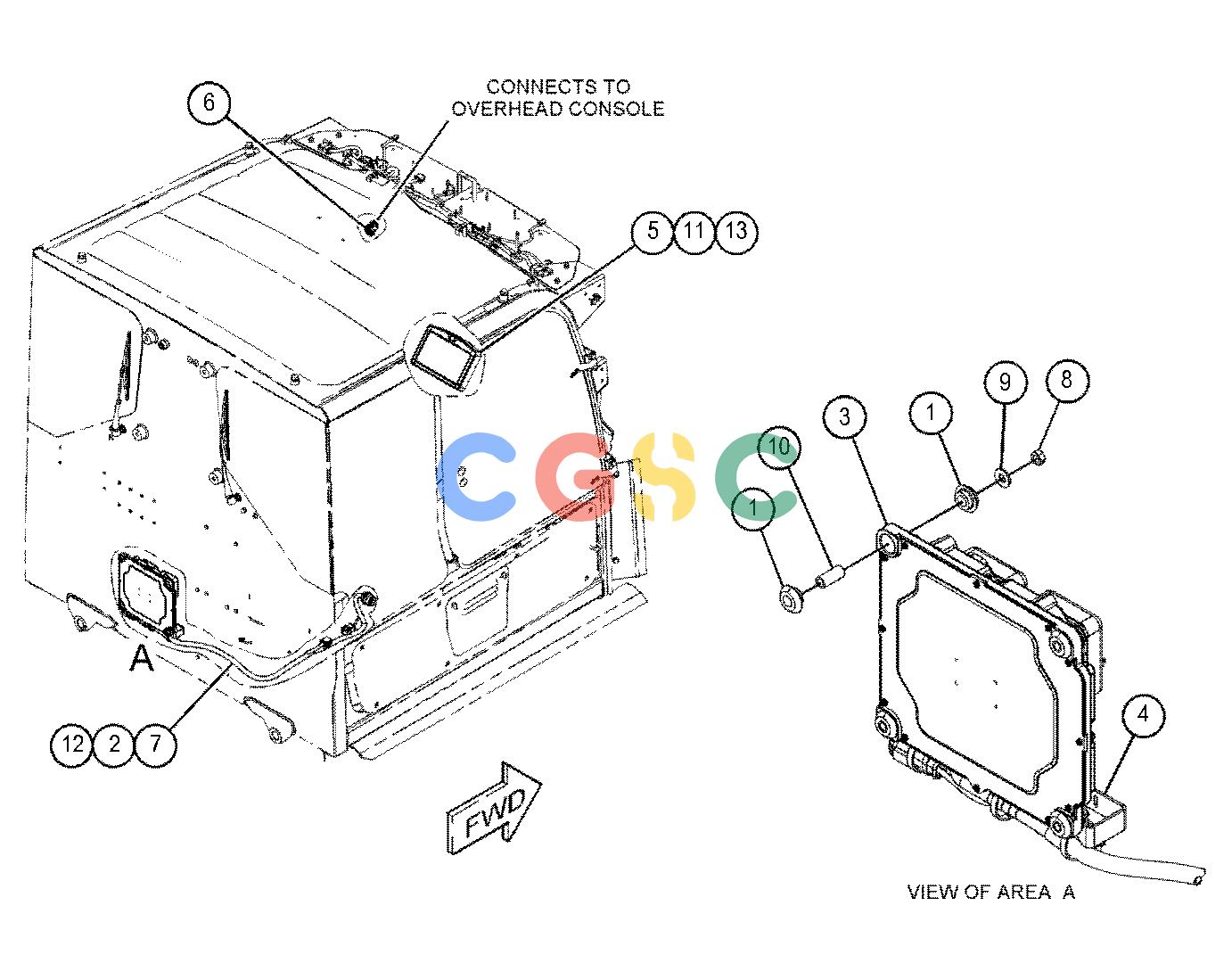

卡特零件查询（730） 480-7187: WIRING GP-ENGINE
广数供应链运营团队, 15 02月, 2025，浏览：
915 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 2. | 311-2813 | [1] | SEAL | |
| 3. | 340-8158Y | [1] | CONTROL GP-ENGINE ELECTRONIC(AIR COOLING) | |
| 4. | 392-8993 | [1] | BRACKET | |
| 5. | 459-4755Y | [1] | CONTROL GP-ELECTRONIC | |
| 6. | 468-8068 | [1] | SWITCH AS-ROCKER(ENGINE) | |
| | 111-7899 | [1] | GASKET | |
| 7. | 480-7186Y | [1] | HARNESS AS-CEM | |
| 8. | 6V-9189M | [4] | LOCKNUT(M8X1.25-THD) | |
| 9. | 352-0244 | [5] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 10. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 11. | 7I-2272M | [8] | BOLT(M5X0.8X12-MM) | |
| 12. | 7K-1181 | [5] | STRAP-CABLE | |
| 13. | 8T-0328 | [8] | WASHER-HARD(5.5X10X1-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
