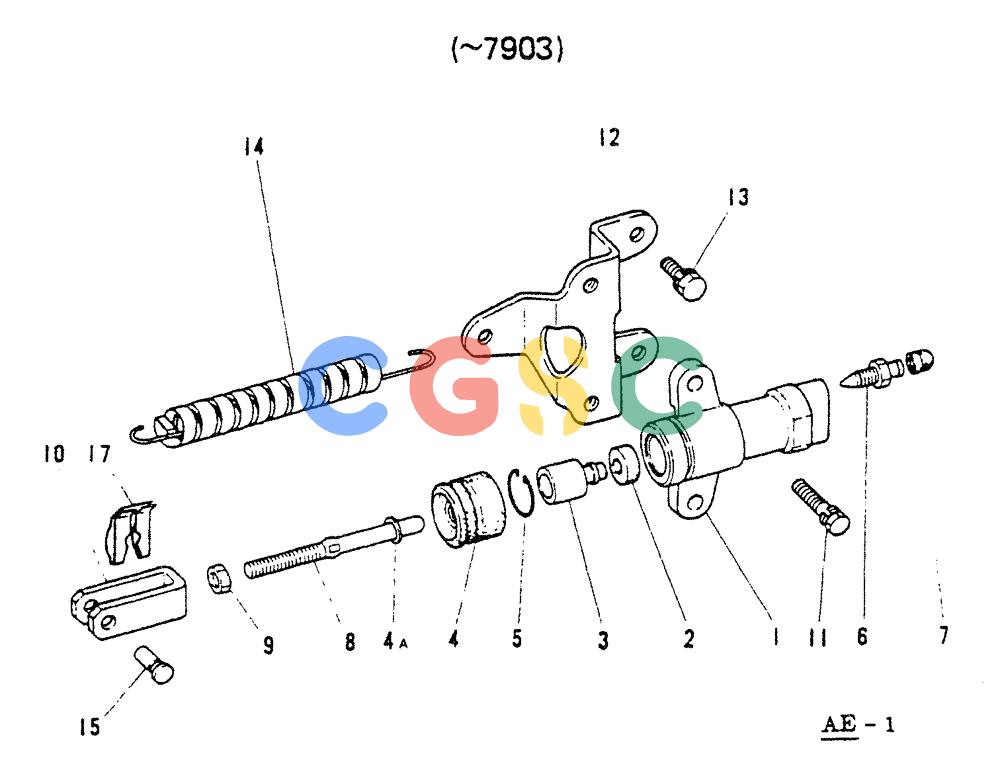

神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (14-004) - CLUTCH CONTROL (-7903) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
918 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-10. | VA4410311200 | [1] | POWER CYLINDER ASSY (FOR M0 ONLY) | |
| 1. | VA4410311211 | [1] | BODY, CYLINDER (FOR M0 ONLY) | |
| 2-4A. | VA4419210101 | [1] | PISTON & CUP KIT (FOR M0 ONLY) | |
| 2. | VA4400324212 | [1] | CUP, PISTON (FOR M0 ONLY) | |
| 3. | VA4400311212 | [1] | PISTON (FOR M0 ONLY) | |
| 4. | VA4410311213 | [1] | COVER, CYLINDER (FOR M0 ONLY) | |
| 4A. | VA4410311214 | [1] | STOPPER, BOOTS (FOR M0 ONLY) | |
| 5. | VA4400324311 | [1] | RING, SNAP (FOR M0 ONLY) | |
| 6. | VA4410311217 | [1] | SCREW, BLEEDER (FOR M0 ONLY) | |
| 7. | VA4400324116 | [1] | CAP, BLEEDER SCREW (FOR M0 ONLY) | |
| 8. | VA4410311215 | [1] | ROD, PUSH (FOR M0 ONLY) | |
| 9. | VAMF430725 | [1] | NUT | KOB8 (FOR M0 ONLY) |
| 9. | VAMF430755 | [1] | NUT 8 OR (FOR M0 ONLY) | |
| 10. | VA4410311216 | [1] | CLEVIS (FOR M0 ONLY) | |
| 11. | VAMF241284 | [2] | BOLT, W/WASHER 10X30 (FOR M0 ONLY) | |
| 12. | VAME620863 | [1] | BRACKET, CYLINDER (FOR M0 ONLY) | |
| 13. | VAMF300841 | [3] | SCREW | KOBW/WASHER 10X20 (FOR M0 ONLY) Superseded by part number: 132461A1 |
| 14. | VA4410312100 | [1] | SPRING, RETURN (FOR M0 ONLY) | |
| 15. | VAMH012000 | [1] | PIN, CLEVIS (FOR M0 ONLY) | |
| 17. | VA4410316100 | [1] | SPRING (FOR M0 ONLY) | |
