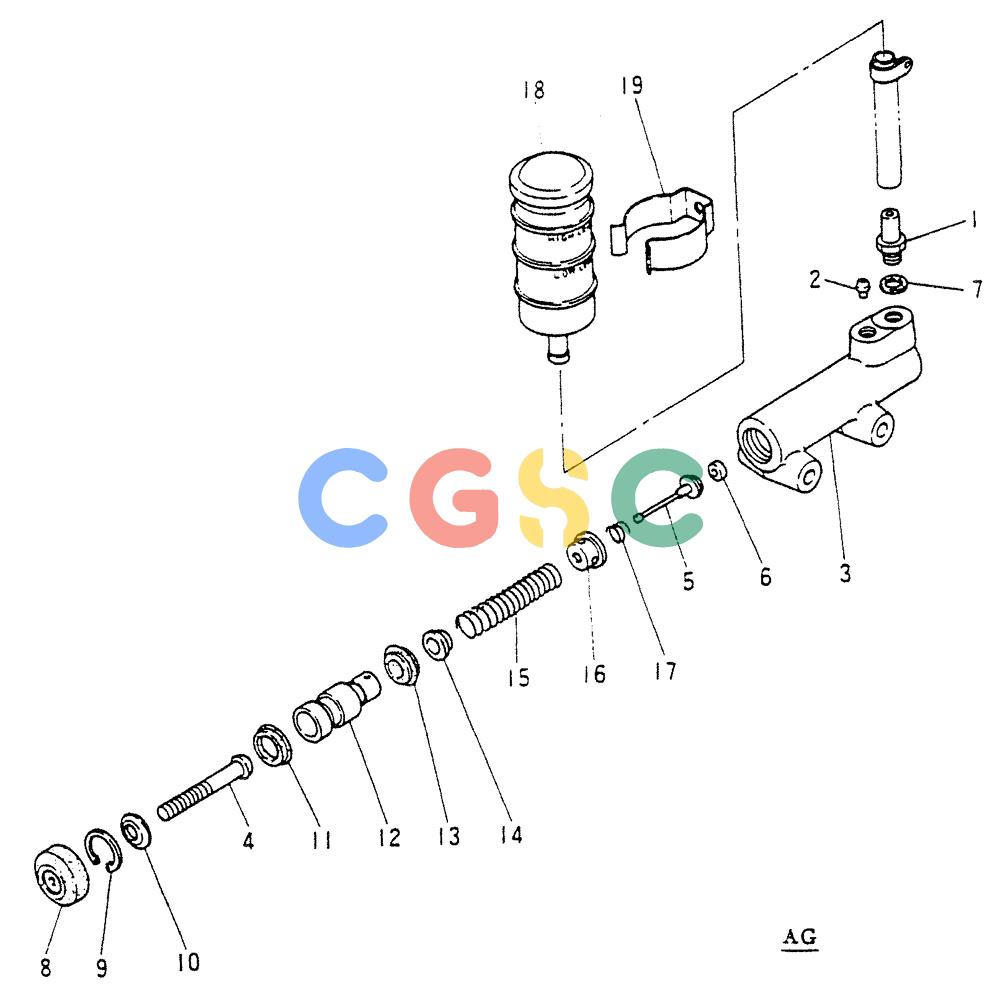

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAMB165100 | [1] | CLUTCH MASTER CYLINDER ASSY (FOR M0 ONLY) | |
| 1. | VAM8165113 | [1] | UNION (FOR M0 ONLY) | |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT TUBE (MT106914) (FOR M0 ONLY) |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONBODY CLUTCH MASTER CYLINDER (MB165120) (FOR M0 ONLY) |
| 4. | VAMB165112 | [1] | ROD, PUSH (FOR M0 ONLY) | |
| 5-17. | VAMB043537 | [1] | CLUTCH MASTER CYLINDER KIT (FOR M0 ONLY) | |
| 5. | VAMB165107 | [1] | STEM, CENTER VALVE (FOR M0 ONLY) | |
| 6. | VAMB165108 | [1] | SEAL, VALVE (FOR M0 ONLY) | |
| 7. | VAMB165114 | [1] | GASKET (FOR M0 ONLY) | |
| 8. | VAMT132658 | [1] | BOOT MASTER CYLINDER (FOR M0 ONLY) | |
| 9. | VAMB165115 | [1] | CIRCLIP (FOR M0 ONLY) | |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONSTOPPER (MB165116) (FOR M0 ONLY) |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONCUP SECONDARY (MT161245) (FOR M0 ONLY) |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON, MASTER CYLINDER (MB165103) (FOR M0 ONLY) |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONCUP PRESSURE (MB165117) (FOR M0 ONLY) |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT SPRING (MB165104) (FOR M0 ONLY) |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING, RETURN (MB165121) (FOR M0 ONLY) |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONCASE, CENTER VALVE (M8165122) (FOR M0 ONLY) |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING, CENTER VALVE (MB165109) (FOR M0 ONLY) |
| 18. | VA1844522502 | [1] | CUP | KOBOIL (FOR M0 ONLY) |
| 19. | VA1204528101 | [1] | HOLDER, CUP (FOR M0 ONLY) | |
