神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (14-014) - TRANSMISSION GEAR SHIFTER UPPER (-7903) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
133 次

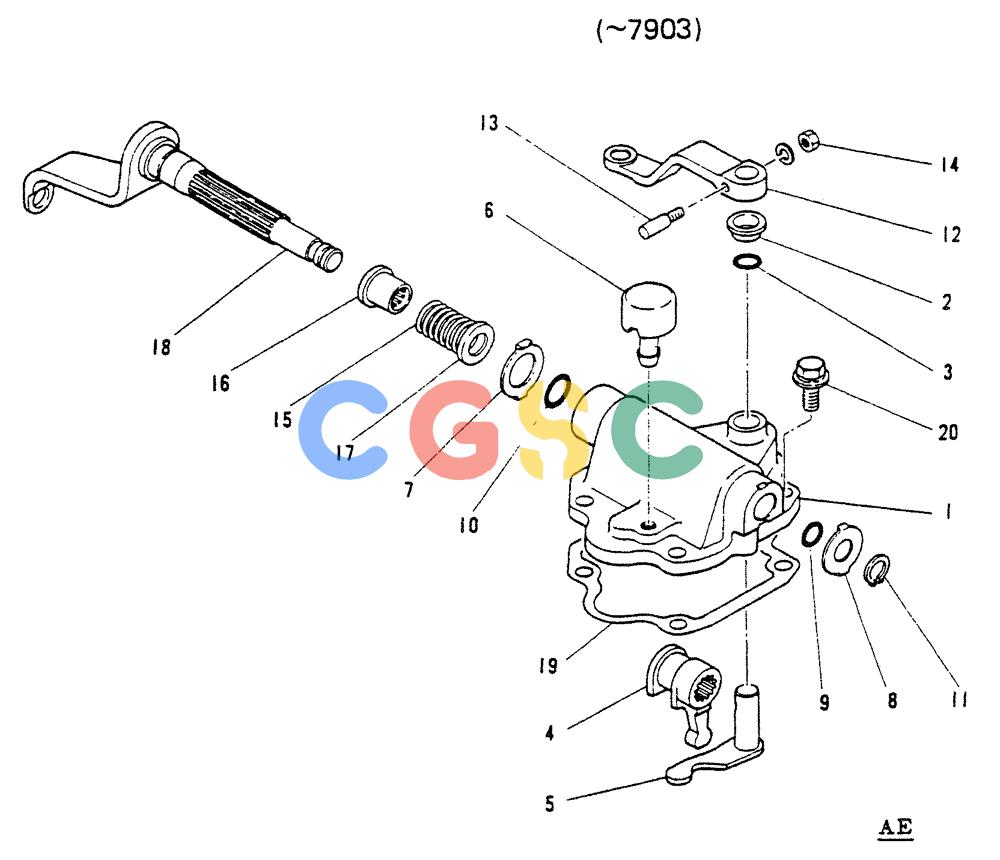

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VA4411610002 | [1] | GEAR SHIFTER UPPER ASSY | |
| 1. | VA4401625600 | [1] | CASE, SELECTOR LEVER | |
| 2. | VA1300706801 | [1] | BUSHING | |
| 3. | VA1300706600 | [1] | O-RIIMG | |
| 4. | VA1300705302 | [1] | LEVER,GEAR SHIFT SLIDING | |
| 5. | VA4401628100 | [1] | LEVER, GEAR SELECTING | |
| 6. | VA0334925000 | [1] | BREATHER,AIR | |
| 7. | VAME620159 | [1] | WASHER, A | |
| 8. | VA4401629600 | [1] | WASHER, B | |
| 9. | VAMF520008 | [1] | O-RING | KOB0-RING 12 |
| 10. | VAMH035134 | [1] | 0-RING | |
| 11. | VA4401626900 | [1] | RING, SNAP | |
| 12. | VA4411614200 | [1] | LEVER, GEAR SELECT | |
| 13. | VA1300707100 | [1] | PIN, LOCK | |
| 14. | VAMF430004 | [1] | NUT | KOBNUT 6 Superseded by part number: 132434A1 |
| . . | VAMF450404 | [1] | WASHER | KOBWASHER, SPRING 6 Superseded by part number: 132427A1 |
| 15. | VA4411617100 | [1] | SPRING, RETURN | |
| 16. | VA4411617200 | [1] | GUIDE, SPRING | |
| 17. | VA4411617300 | [1] | SEAT, SPRING | |
| 18. | VA4411613400 | [1] | LEVER, GEAR SHIFT | |
| 19. | VA4401629200 | [1] | GASKET UPPER CASE | |
| 20. | VAMF244853 | [4] | BOLT | KOBBOLT WASHER 10X3 |
