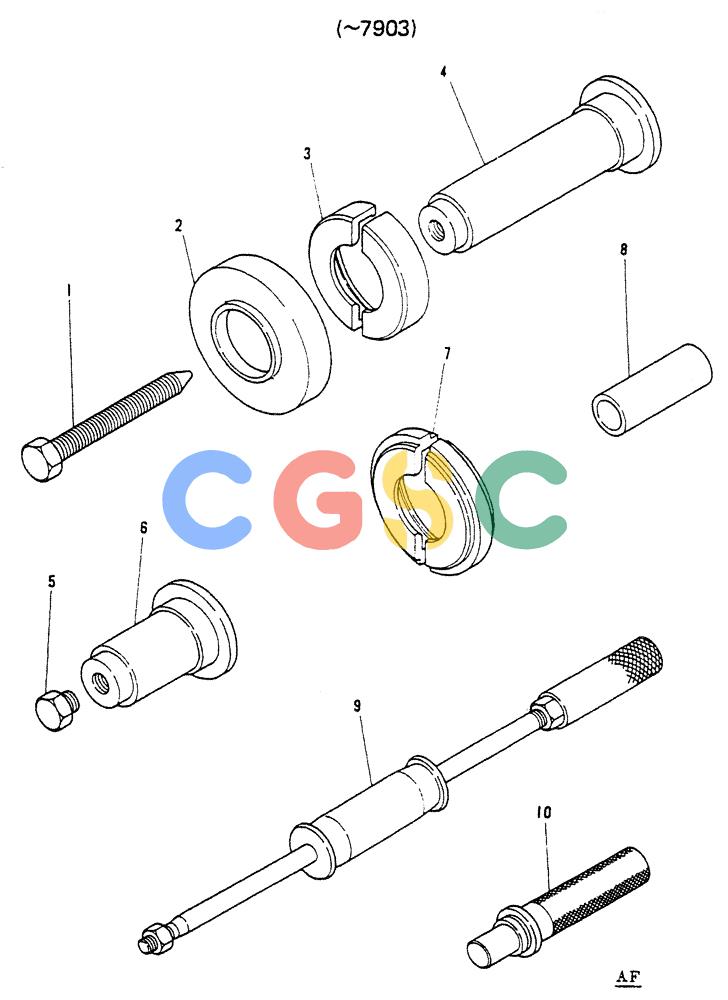

神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (14-016) - TRANSMISSION OPTIONAL TOOL (-7903) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
641 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-8. | VA0372631000 | [1] | PULLER AND INSTALLER | |
| 1. | VA0372681016 | [1] | BOLT | |
| 2. | VA0372631013 | [1] | PROTECTOR | |
| 3. | VA0372681011 | [1] | CLAW, MAIN SHAFT BRG | |
| 4. | VA0372681014 | [1] | BODY | |
| 5. | VA0372681017 | [1] | PLUG | |
| 6. | VA0372681015 | [1] | BODY | |
| 7. | VA0372681012 | [1] | CLAW, COUNTER SHAFT RG | |
| 8. | VA0372681018 | [1] | SPACER | |
| 9. | VA0372682000 | [1] | PULLER, REV.GEAR SHAFT | |
| 10. | VA0372683000 | [1] | INSTALLER | |
