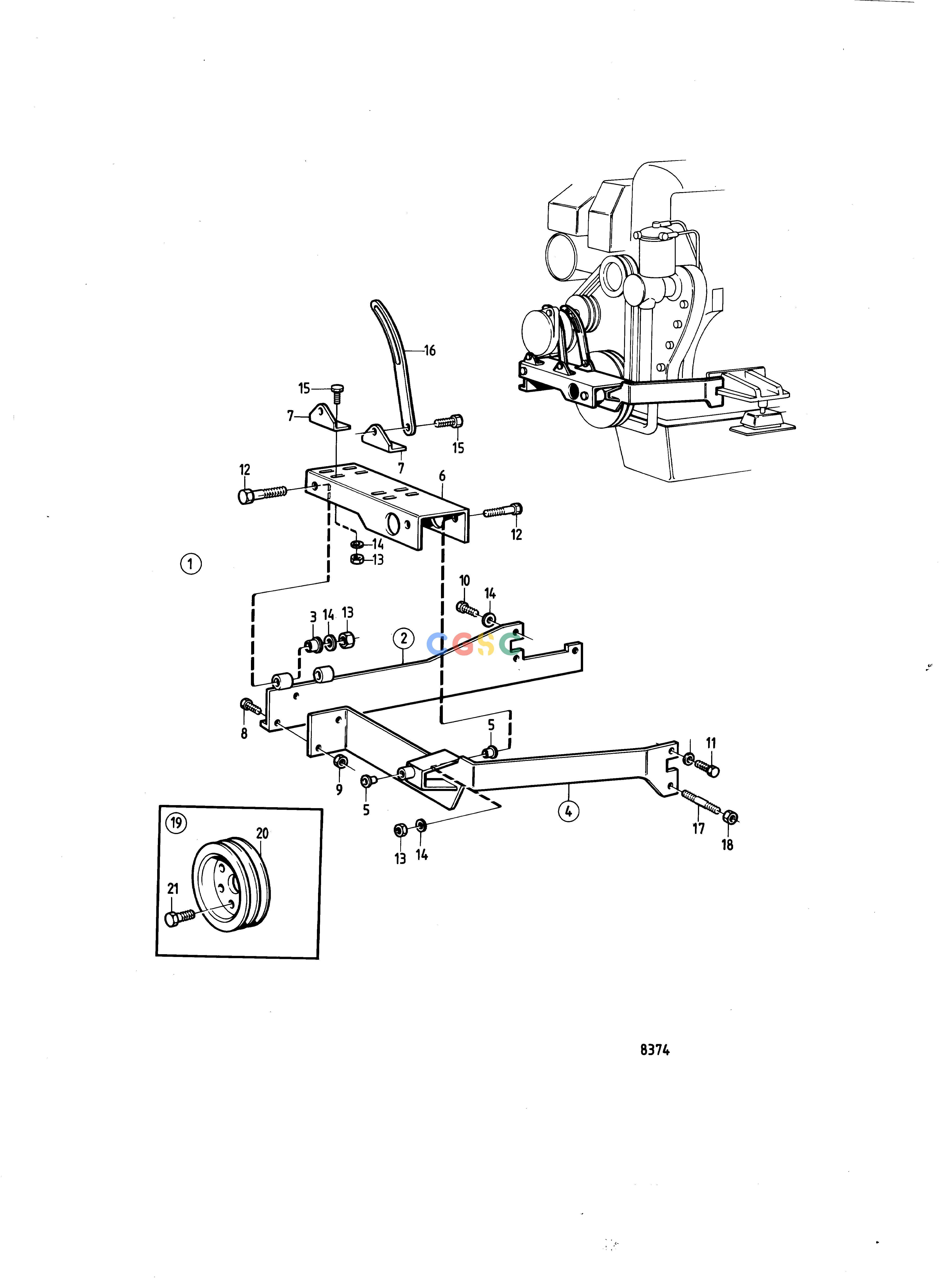

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentGeneral BracketEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
149 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858258
|
[1] |
Universal bracket
|
|
| 2. |
858383
|
[1] |
Bracket
|
|
| 3. |
463909
|
[2] |
Rubber bushing
|
|
| 4. |
858382
|
[1] |
Bracket
|
|
| 5. |
463909
|
[2] |
Rubber bushing
|
|
| 6. |
858175
|
[1] |
Plate
|
|
| 7. |
858177
|
[4] |
Bracket
|
|
| 8. |
946472
|
[2] |
Flange screw
|
|
| 9. |
949279
|
[2] |
Flange lock nut
|
|
| 10. |
955353
|
[3] |
Hexagon screw
|
|
| 11. |
955345
|
[1] |
Hexagon screw
|
|
| 12. |
965179
|
[4] |
Flange screw
|
|
| 13. |
945408
|
[14] |
Flange nut
|
|
| 14. |
960141
|
[12] |
Washer
|
|
| 15. |
946173
|
[10] |
Flange screw
|
|
| 16. |
845021
|
[2] |
Tensioner
|
(946150)
|
| 17. |
924102
|
[1] |
Stud
|
|
| 18. |
945410
|
[1] |
Flange nut
|
|
| 19. |
858257
|
[1] |
Pulley kit
|
|
| 20. |
838596
|
[1] |
Pulley
|
|
| 21. |
955301
|
[6] |
Hexagon screw
|
|
